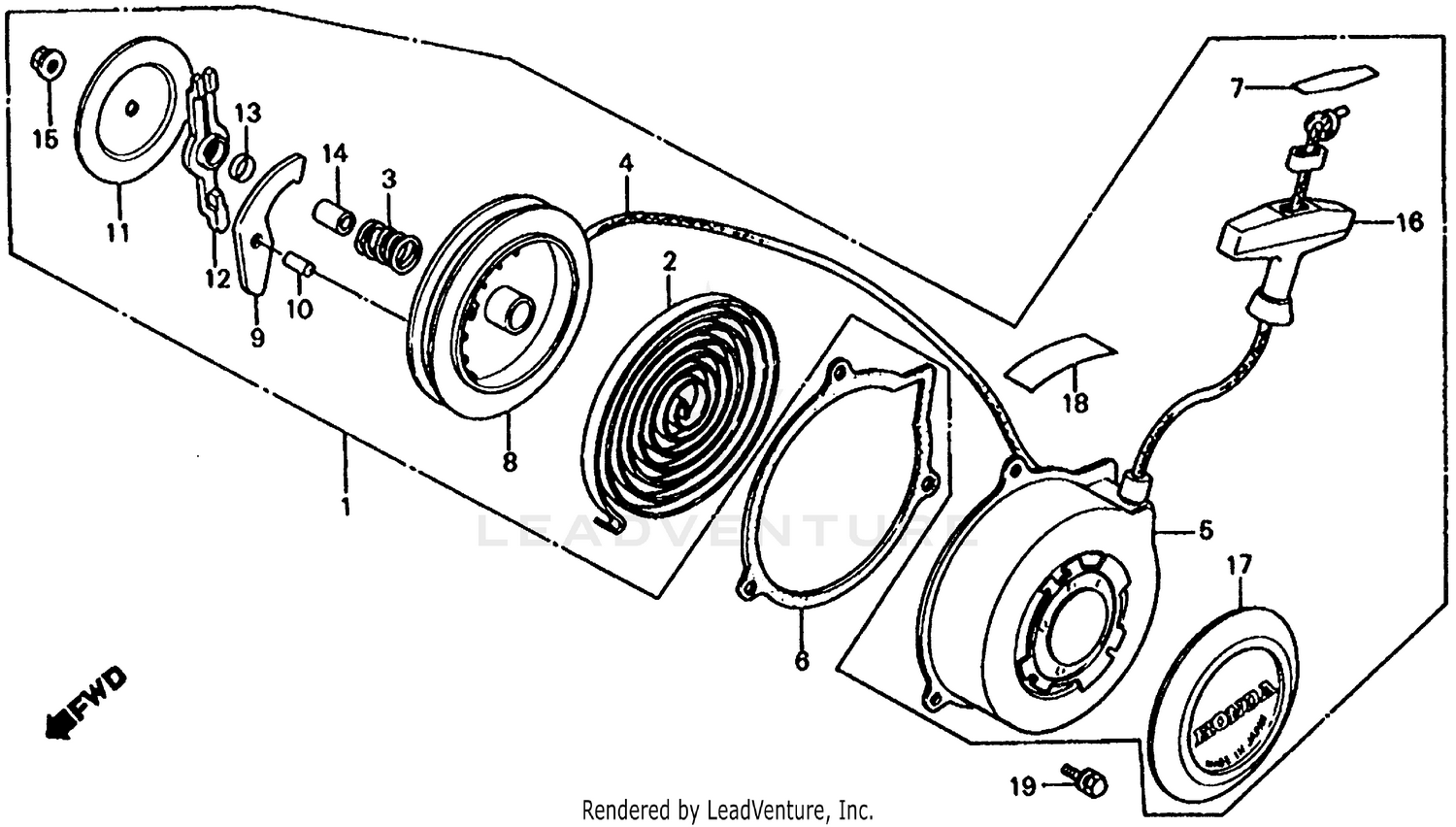

Recoil Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSY., RECOIL (NOT AVAILABLE)
28400-VM6-681
|
$145.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RECOIL STARTER
28402-968-004
|
$35.95 | ||
|
Unavailable |
|||
|
#3
SPRING, FRICTION
28404-968-004
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROPE, RECOIL STARTER
28407-958-004
|
$30.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, RECOIL STARTER (NOT AVAILABLE)
28410-968-004
|
$183.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, RECOIL STARTER
28411-968-000
Superseded by 28411-968-405
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, RECOIL STARTER
28411-968-405
|
$7.81 | ||
|
Unavailable |
|||
|
#7
CAP, KNOB
28414-958-004
|
$3.55 | ||
|
Unavailable |
|||
|
#8
REEL, STARTER
28420-968-004
|
$64.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
RATCHET, STARTER
28422-ZE1-003
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, STARTER RATCHET
28423-968-004
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FRICTION
28431-ZE1-003
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, RATCHET
28433-968-004
|
$20.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SPRING
28446-968-004
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, SUB
28447-968-004
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
28448-ZE1-003
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNOB, STARTER
28461-958-003
|
$25.91 | ||
|
Unavailable |
|||
|
#17
COVER, RECOIL STARTER
28470-VM6-681
|
$24.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
MARK, NEUTRAL CAUTION (NOT AVAILABLE)
87103-VM5-000
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X16)
93401-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X16)
93491-06016-00
Superseded by 93401-06016-00
|
$1.64 | ||
|
Unavailable |
|||
