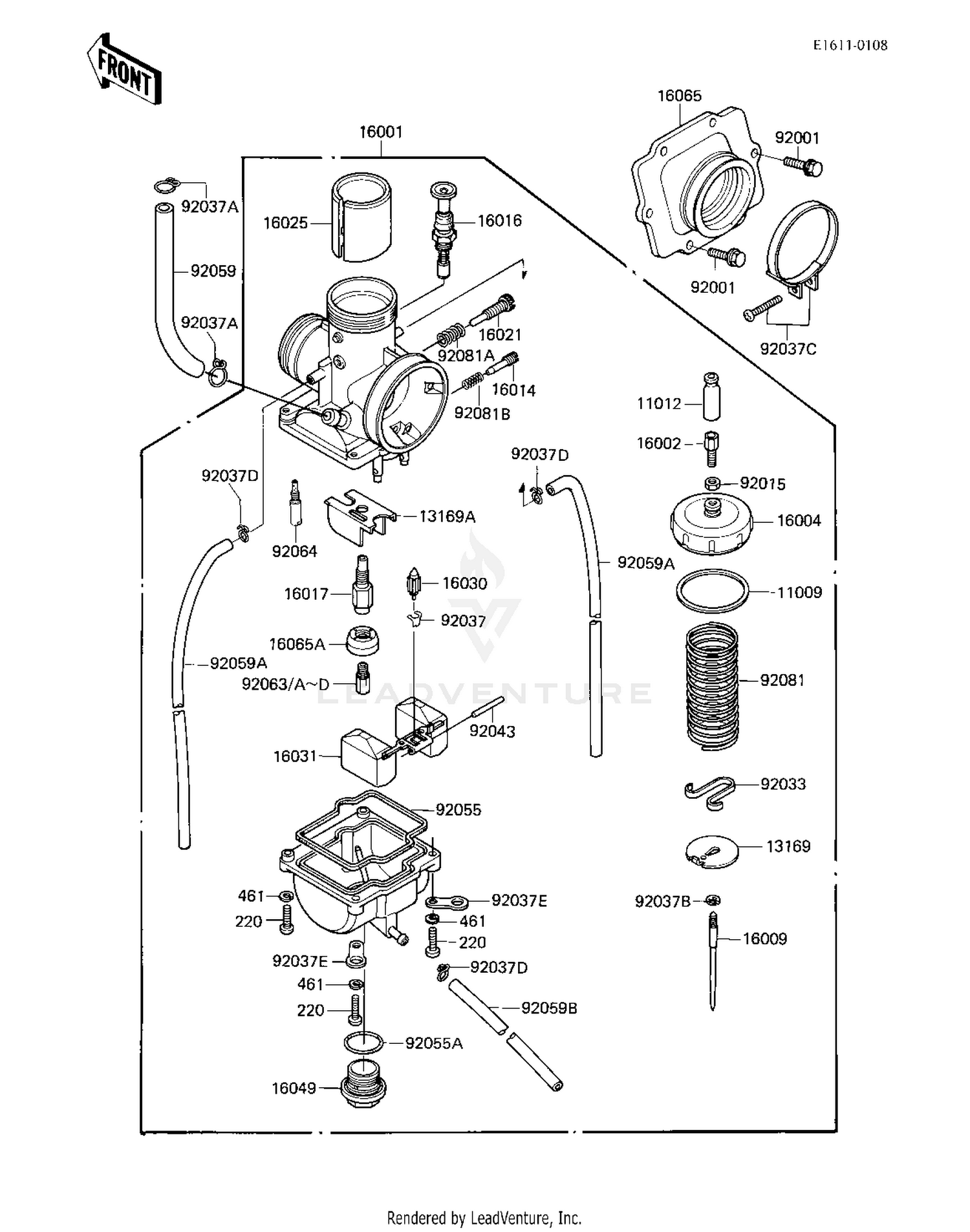

Carburetor ('83 Kx250-c1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CHAMBER CAP
11009-1337
|
$23.86 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,CABLE ADJUSTER
11012-1293
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,THROTTLE VALVE
13169-1609
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE,FLOAT CHAMBER
13169-1610
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR
16001-1678
|
$281.16 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-1015
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER,MIXING
16004-1017
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N13A
16009-1139
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1033
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1028
|
$94.87 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1126
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1045
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA3.5
16025-1079
|
$106.71 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT,3.6
16030-1028
|
$36.67 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1022
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1007
|
$24.20 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1048
|
$72.26 | ||
|
Unavailable |
|||
|
#16065A
HOLDER-CARBURETOR,JET
16065-1074
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CABLE ADJUST LOCK
92015-1252
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,THROTTLE VA
92033-1096
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,CARB CONECT HOS
92037-056
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CIRCLIP,JET NEEDLE
92037-1039
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,CARBURETOR HOLD
92037-1313
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037E
CLAMP,HOSE
92037-1969
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1148
Superseded by 92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1166
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,FUEL,6.5X11.5
92059-1252
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,4X7X400
92059-1284
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,3.5X6.5X270
92059-1285
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#155
92063-1256
Superseded by 92063-1366
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#158
92063-1257
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#160
92063-1258
Superseded by 92063-1368
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#162
92063-1259
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#165
92063-1260
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#60
92064-1063
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE VALVE
92081-1553
|
$16.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,STOP SCREW
92081-1554
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,ADJUST SCREW
92081-1555
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220B0416
Superseded by 220AA0416
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
