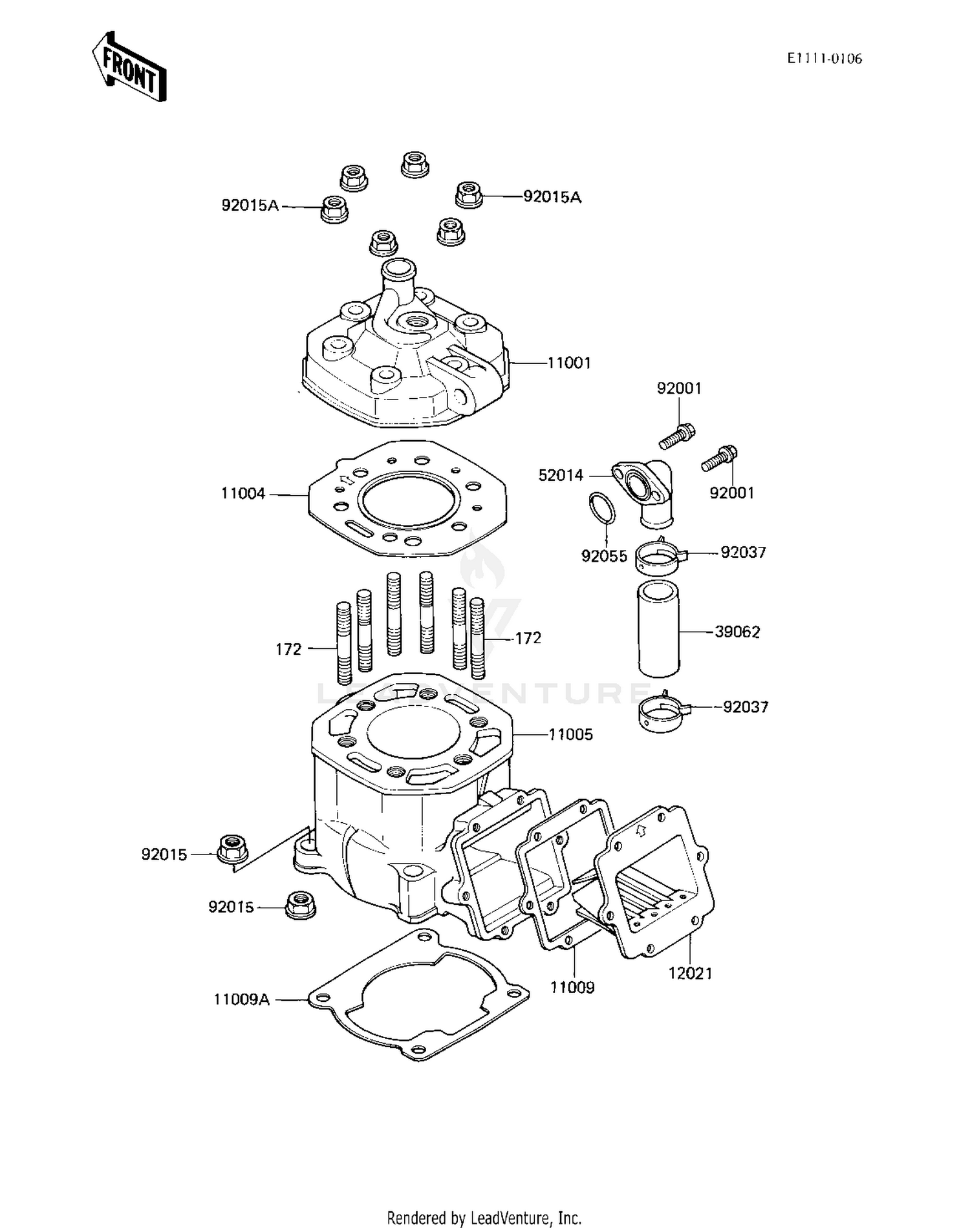

Cylinder Head/cylinder/reed Valve ('83 K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001
HEAD-CYLINDER
11001-1110
|
$231.06 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD,CYLINDER
11004-1057
Superseded by 11004-1270
|
$68.45 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-1347
|
$1,062.43 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,REED VALVE
11009-1950
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,CYLINDER BASE
11009-1318
Superseded by 11060-1570
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1019
|
$133.65 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,RADIATOR
39062-1256
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1004
Superseded by 52014-0005
|
$31.22 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1364
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,19.5X1.5
92055-055
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#172
STUD,8X35
92004-1009
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
