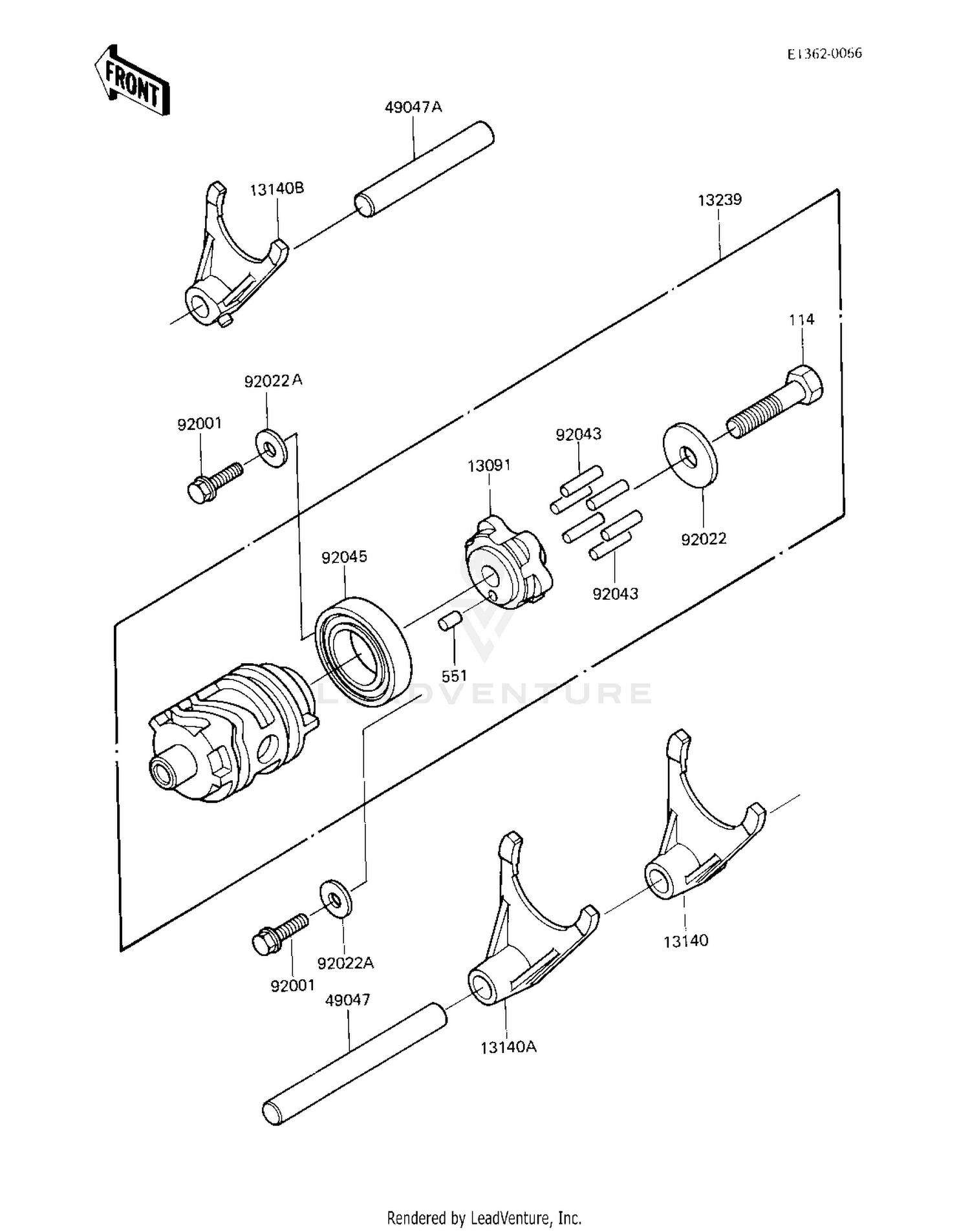

Gear Change Drum & Forks ('83 Kx250-c1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,CHANGE DRUM
13091-1189
|
$69.17 | ||
|
Available to order. Add to View Price |
|||
|
#13140
FORK-SHIFT,LOW
13140-1071
|
$87.01 | ||
|
Available to order. Add to View Price |
|||
|
#13140A
FORK-SHIFT,2ND&3RD
13140-1072
|
$91.17 | ||
|
Available to order. Add to View Price |
|||
|
#13140B
FORK-SHIFT,4TH&TOP
13140-1073
|
$87.01 | ||
|
Available to order. Add to View Price |
|||
|
#13239
DRUM-ASSY-CHANGE
13239-1077
|
$181.89 | ||
|
Available to order. Add to View Price |
|||
|
#49047
ROD-SHIFT,10X90
49047-1009
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#49047A
ROD,SHIFT,L=65M/M
49047-1011
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-FLANGED,6X14
92001-1627
Superseded by 130BA0614
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8X26X2.3
92022-1564
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6X14X2
92022-1393
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,4X16.8
92042-029
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6905Z
92045-1058
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT,SMALL UPSET
115G0835
Superseded by 115BA0835
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
