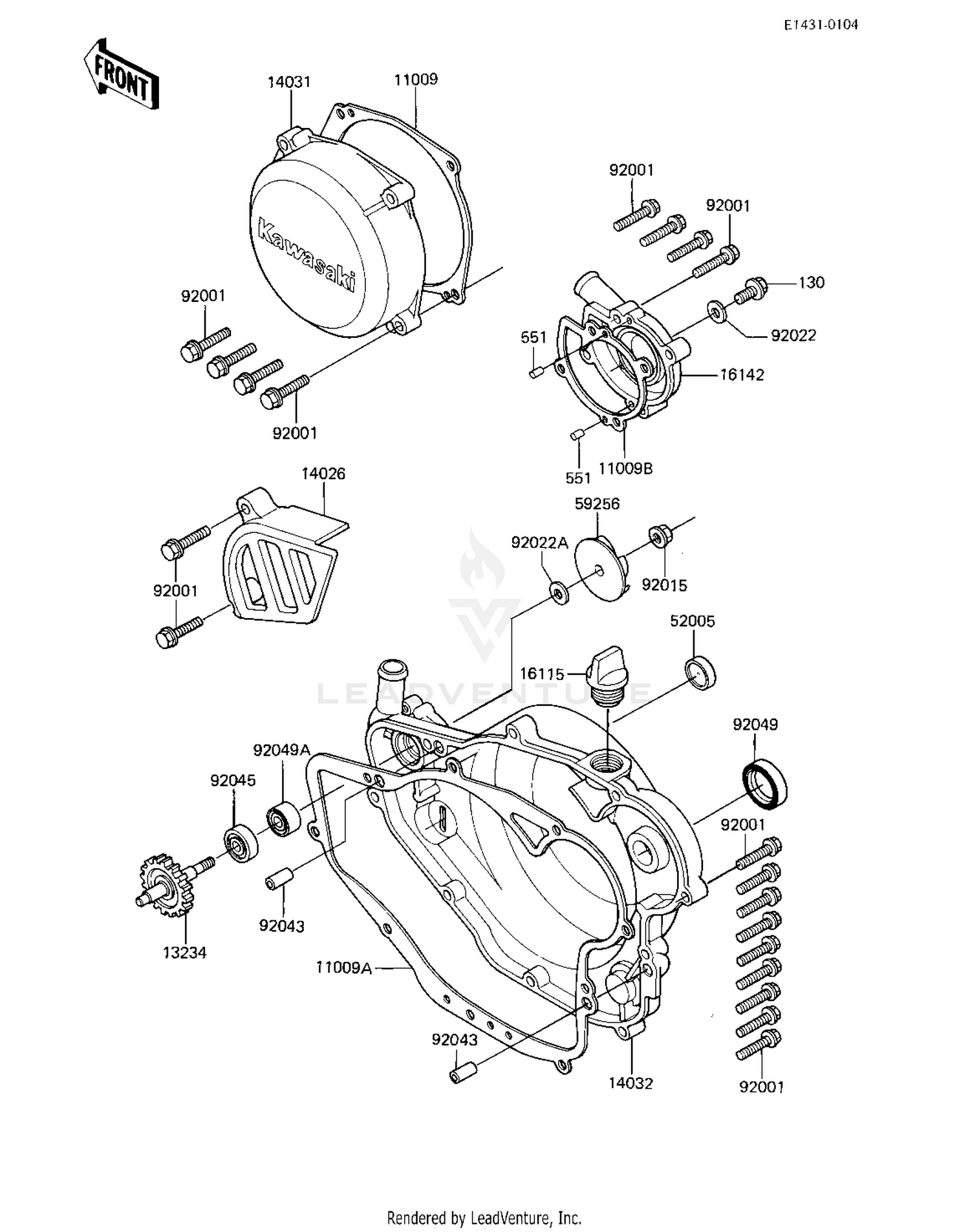

Engine Covers/water Pump ('83 Kx250-c1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,GENERATOR COVR
11009-1319
Superseded by 11060-1571
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,CLUTCH COVER
11009-1320
Superseded by 11060-1550
|
$31.43 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET, PUMP COVER
11009-1321
Superseded by 11060-1572
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#13234
SHAFT-COMP,WATER PUMP
13234-1009
|
$66.07 | ||
|
Unavailable |
|||
|
#14026
COVER-CHAIN
14026-1119
|
$21.98 | ||
|
Unavailable |
|||
|
#14031
COVER-GENERATOR
14031-1104
|
$92.28 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1094
|
$379.21 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-018
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER
16142-1008
|
$56.07 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1005
Superseded by 52005-0019
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.2X16X1
92022-1086
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6X14X2
92022-1393
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,608MC3
92045-1212
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,SB18307
92049-013
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHSD8X18X10J-1
92049-1366
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X10
130B0810
Superseded by 130AA0810
|
$0.54 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
