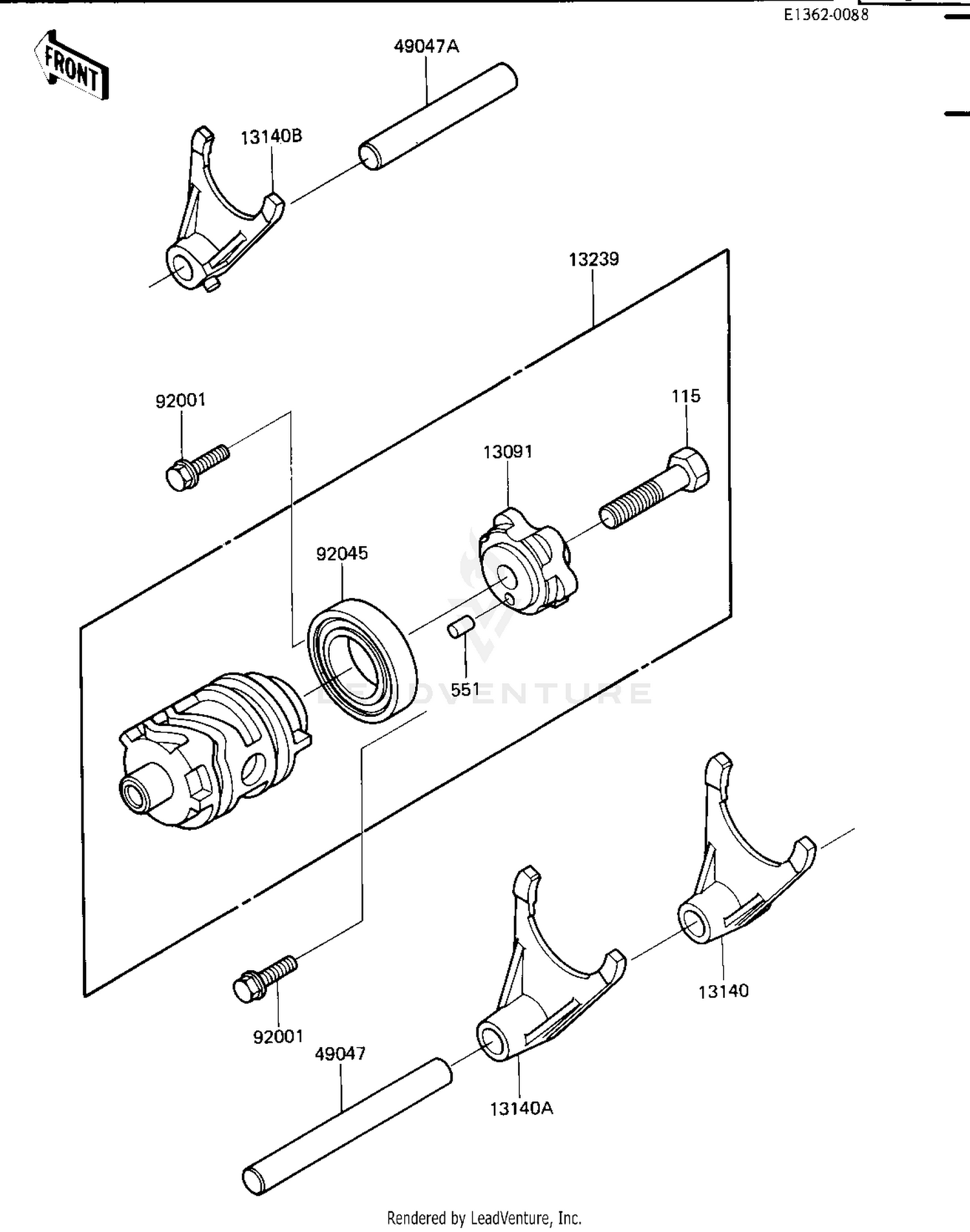

Gear Change Drum & Forks ('84 Kx250-c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,CHANGE DRUM
13091-1296
|
$69.28 | ||
|
Available to order. Add to View Price |
|||
|
#13140
FORK-SHIFT,LOW
13140-1071
|
$87.01 | ||
|
Available to order. Add to View Price |
|||
|
#13140A
FORK-SHIFT,2ND&3RD
13140-1072
|
$91.17 | ||
|
Available to order. Add to View Price |
|||
|
#13140B
FORK-SHIFT,4TH&TOP
13140-1073
|
$87.01 | ||
|
Available to order. Add to View Price |
|||
|
#13239
DRUM-ASSY-CHANGE
13239-1106
|
$170.12 | ||
|
Available to order. Add to View Price |
|||
|
#49047
ROD-SHIFT,10X90
49047-1009
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#49047A
ROD,SHIFT,L=65M/M
49047-1011
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/WASHER,6X14
92001-1829
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6905Z
92045-1058
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#115
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
