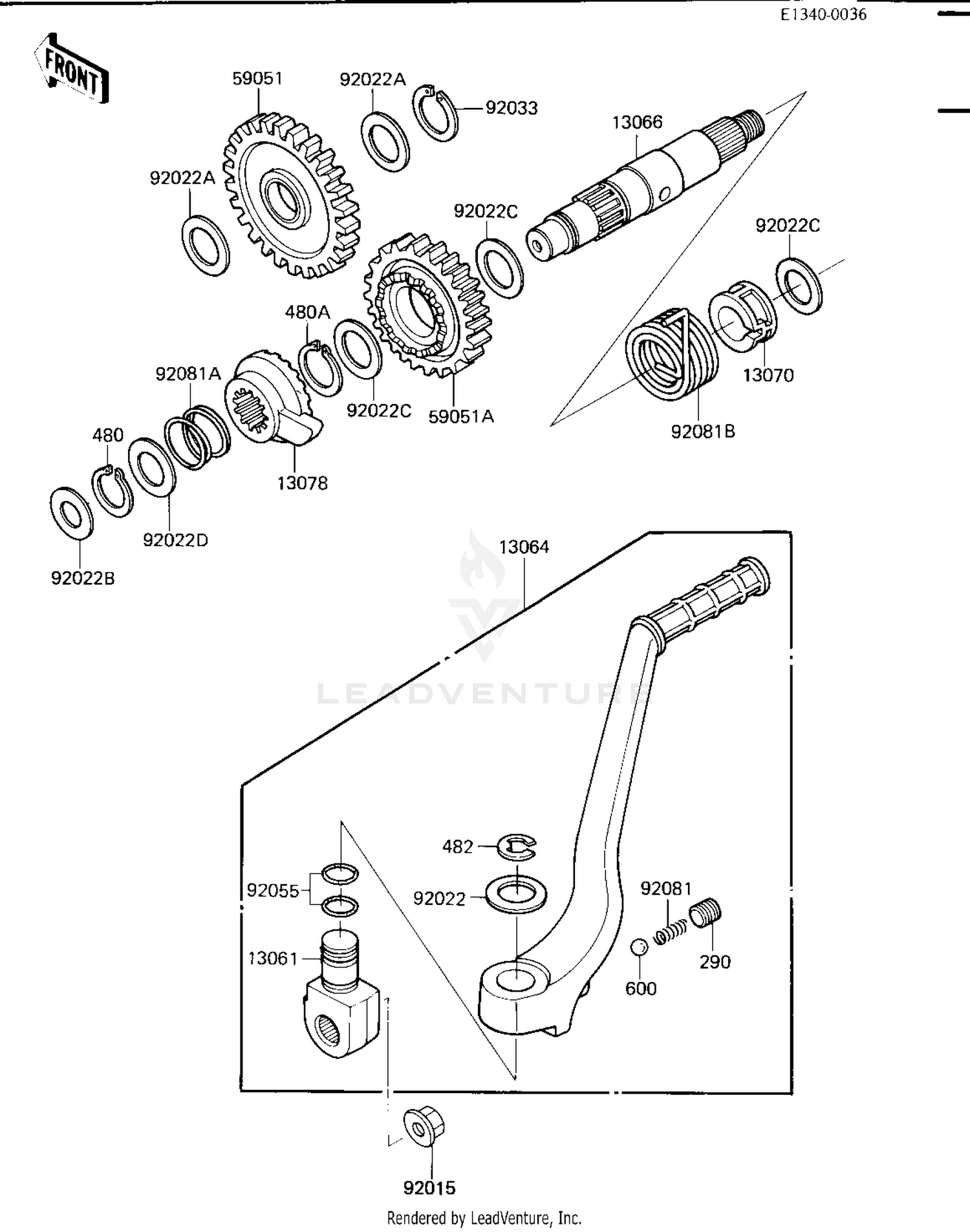

Kickstarter Mechanism ('84 Kx250-c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13061
BOSS,KICK PEDAL
13061-1113
|
$90.31 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK,PEDAL
13064-1105
|
$192.44 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-1052
|
$167.28 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,KICK SPRING
13070-1063
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET
13078-1061
|
$79.42 | ||
|
Unavailable |
|||
|
#59051
IDLE GEAR, KICKSTRTER
59051-1022
|
$124.09 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,KICKSTARTER
59051-1051
|
$132.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,16.3X24X1
92022-1205
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,20.5X25.5X0.5
92022-252
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,18.3X22X0.5
92022-271
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022D
WASHER,16.8X22X0.5
92022-315
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,18MM
92033-029
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,12X1.5
92055-025
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,KICKSTARTER
92081-1253
|
$22.22 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW-SET-SOCKET
290P0816
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,18MM
480J1800
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,12MM
482L0200
Superseded by 482EA0200
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
