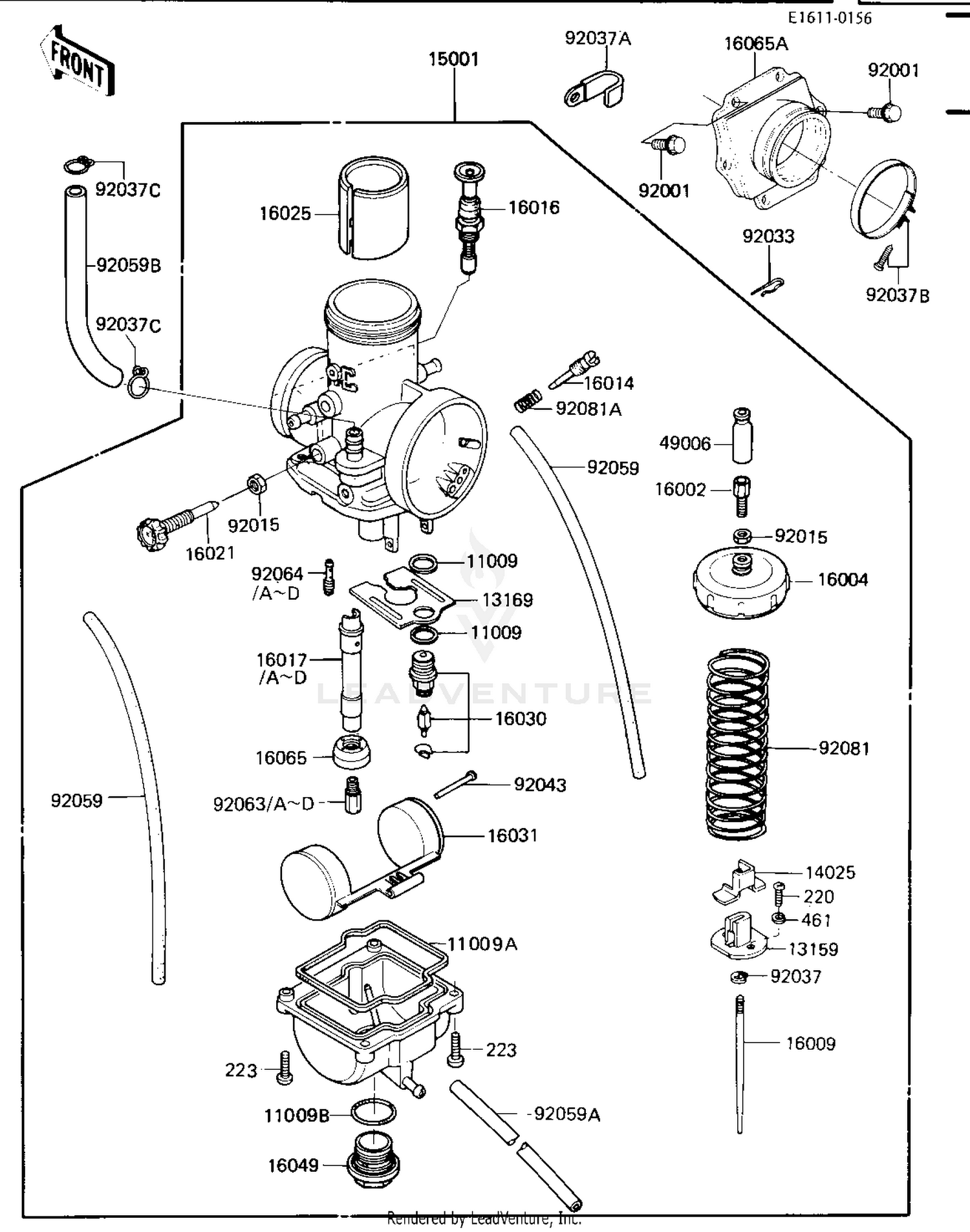

Carburetor ('84 Kx250-c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT VALVE
11009-1076
|
$4.78 | ||
|
Unavailable |
|||
|
#11009A
GASKET,FLOAT CHAMBER
16019-028
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET-COVER
16038-009
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE
13159-1010
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,FLOAT CHAMBER
13169-1520
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,THROTTLE
14025-1478
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR
16001-1927
|
$268.15 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-011
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-MIXING CHAMBER
16004-026
|
$51.52 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,6J04
16009-1225
|
$28.32 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW
16014-006
|
$16.54 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1026
|
$69.67 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,R-4
16017-1212
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE,R-6
16017-1213
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#16017B
JET-NEEDLE,R-2
16017-1250
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#16017C
JET-NEEDLE,R-0
16017-1238
Superseded by 16017-1251
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
|
#16017D
JET-NEEDLE,Q-8
16017-1239
Superseded by 16017-1248
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1108
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA 2.5
16025-1112
|
$96.13 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1015
|
$53.08 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-030
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER,MAIN JET
16049-1005
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER,NEEDLE JET
16065-1040
Superseded by 16065-1045
|
$69.03 | ||
|
Available to order. Add to View Price |
|||
|
#16065A
HOLDER-CARBURETOR
16065-1048
|
$72.26 | ||
|
Unavailable |
|||
|
#49006
BOOT,CARBURETOR
49006-1169
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,ADJUST LOCK
16003-006
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CIRCLIP
16008-010
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,CARBURETOR HOLD
92037-1313
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92059
HOSE,FUEL OVERFLOW
92059-1142
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#92059A
TUBE,3.5X6.5X300
92059-1233
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,FUEL,6.5X11.5
92059-1252
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN NO 300A
92063-045
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN NO 310A
92063-046
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN NO 320A
92063-047
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN NO 330A
92063-048
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
MAIN JET NO 340A
92063-049
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#30
92064-022
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT NO 35
92064-023
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT NO 40
92064-024
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
PILOT JET,#A25
92064-032
Superseded by 92064-1020
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT,#27.5
92064-1033
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE VALVE
16006-028
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,PILOT AIR SCREW
16022-007
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,5X16
223B0516
Superseded by 223AA0516
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
