1984 Kawasaki KX250C2 Muffler ('84 Kx250-c2) OEM Parts

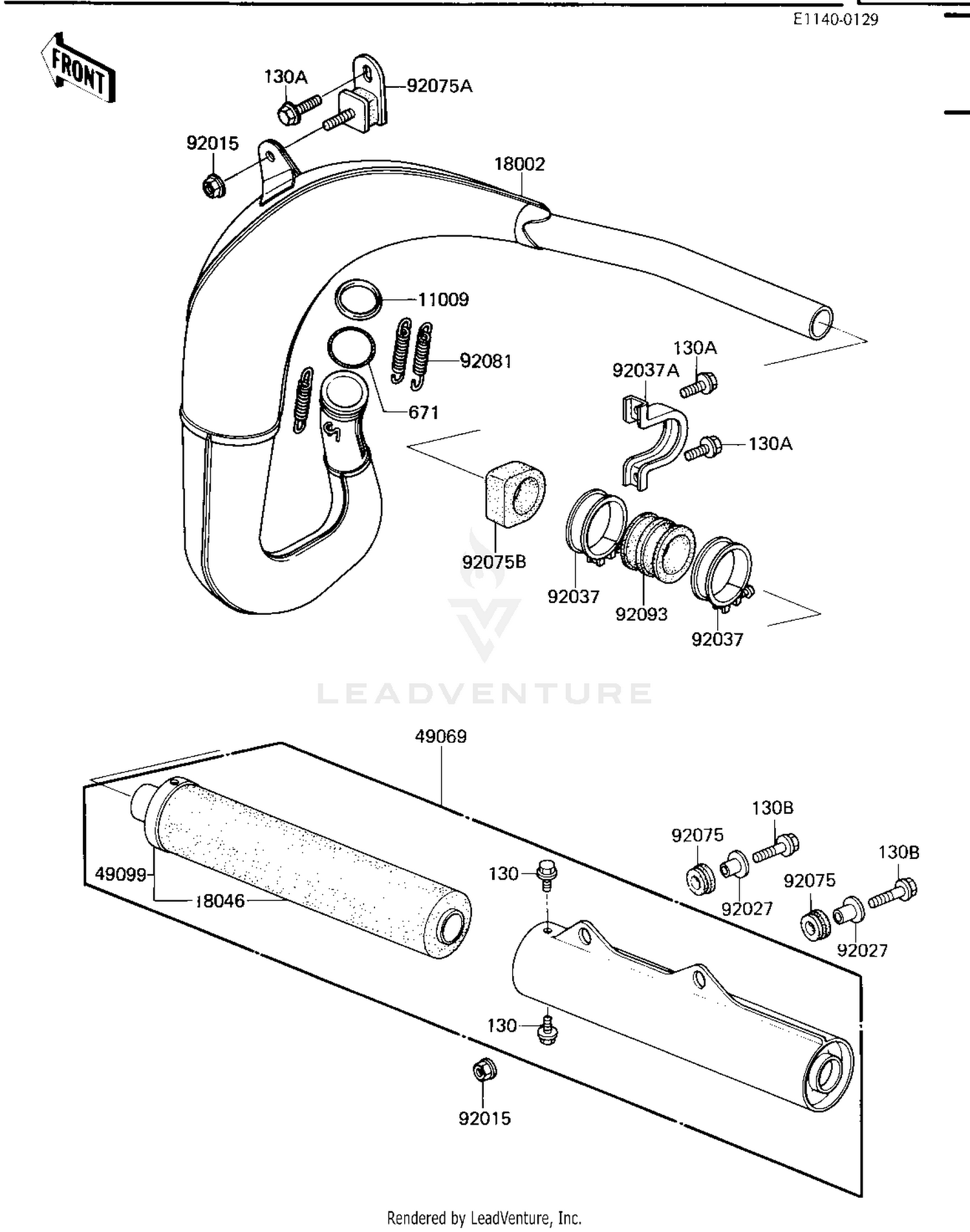

Muffler ('84 Kx250-c2) Diagram

Item	MSRP	Qty
#11009 GASKET,EXHAUST PIPE 11009-1253 Superseded by 11009-1949	$11.08
Available to order. Add to View Price
#18002 BODY-COMP-MUFFLER 18002-1433	$345.61
Available to order. Add to View Price
#18046 WOOL,MUFFLER BAFFLE P 18046-1075	$45.47
Available to order. Add to View Price
#49069 MUFFLER-ASSY 49069-1072	$358.32
Available to order. Add to View Price
#49099 BAFFLE-PIPE MUFFLER 49099-1110	$85.43
Available to order. Add to View Price
#92015 NUT,FLANGED,6MM 92015-1078 Superseded by 92210-0630	$1.94
Available to order. Add to View Price
#92027 COLLAR,L=12 92027-1062	$7.09
Available to order. Add to View Price
#92037 CLAMP,CARBURETOR,40MM 92037-1129	$9.25
Available to order. Add to View Price
#92037A CLAMP,MUFFLER 92037-1372	$9.38
Available to order. Add to View Price
#92075 DAMPER,RUBBER 92075-1123	$4.84
Available to order. Add to View Price
#92075A DAMPER,MUFFLER 92075-1891	$31.16
Available to order. Add to View Price
#92075B DAMPER,MUFFLER 92075-1428	$35.11
Available to order. Add to View Price
#92081 SPRING,MUFFLER CONECT 92081-1526	$11.35
Available to order. Add to View Price
#92093 SEAL,MUFFLER 92093-1085	$40.14
Available to order. Add to View Price
#130 BOLT-FLANGED,5X8 130G0508 Superseded by 130BA0508	$1.85
Available to order. Add to View Price
#130A BOLT-FLANGED,6X14 130G0614 Superseded by 130BA0614	$1.17
Available to order. Add to View Price
#130B BOLT-FLANGED,6X25 130G0625 Superseded by 130BA0625	$1.17
Available to order. Add to View Price
#671 O RING,50MM 671E2550	$14.79
Available to order. Add to View Price
