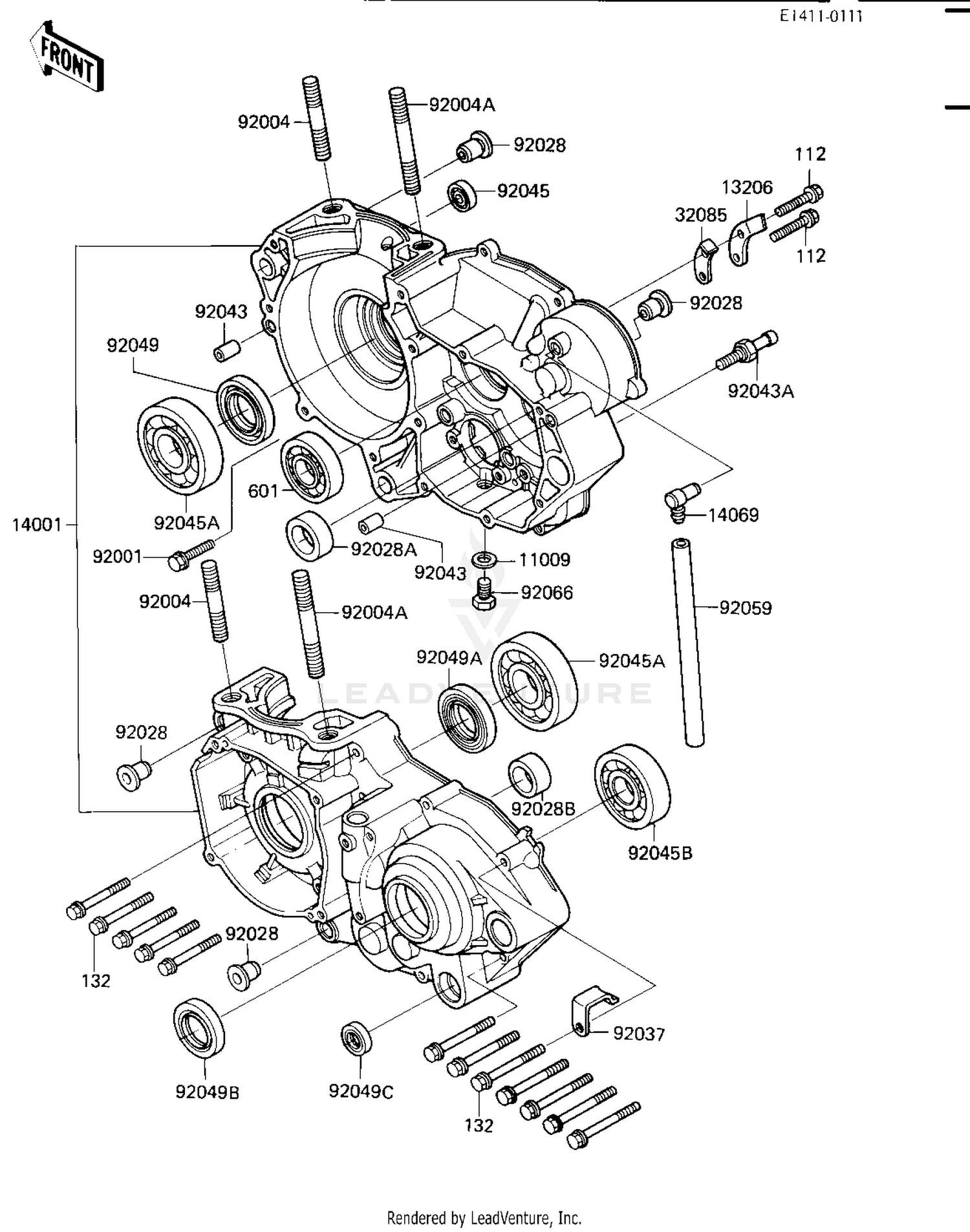

Crankcase ('84 Kx250-c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1052
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-5152
|
$465.17 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER
14069-003
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,KICKSTARTER
32085-1016
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/WASHER,6X14
92001-1829
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X35
92004-1063
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,10X45
92004-1065
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,CRANKCASE
92028-1133
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,26X35X14
92028-131
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#92028B
BUSHING,23X30X13
92028-132
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HARNESS
92037-1318
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,CHANGE PEDAL
92043-1055
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,626MC3
92045-1211
Superseded by 92045-1304
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING,BALL,#6305SH2
92045-1024
|
$55.05 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,6205
92045-1115
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,TCJ25457
92049-1051
|
$35.38 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
OIL SEAL,TCJ20407
92049-1052
|
$30.53 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
OIL SEAL TB3040
92050-033
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92059
PIPE-BREATHER
92059-061
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN,10X12
92067-001
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X40
132G0640
Superseded by 132BA0640
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6204
601B6204
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
