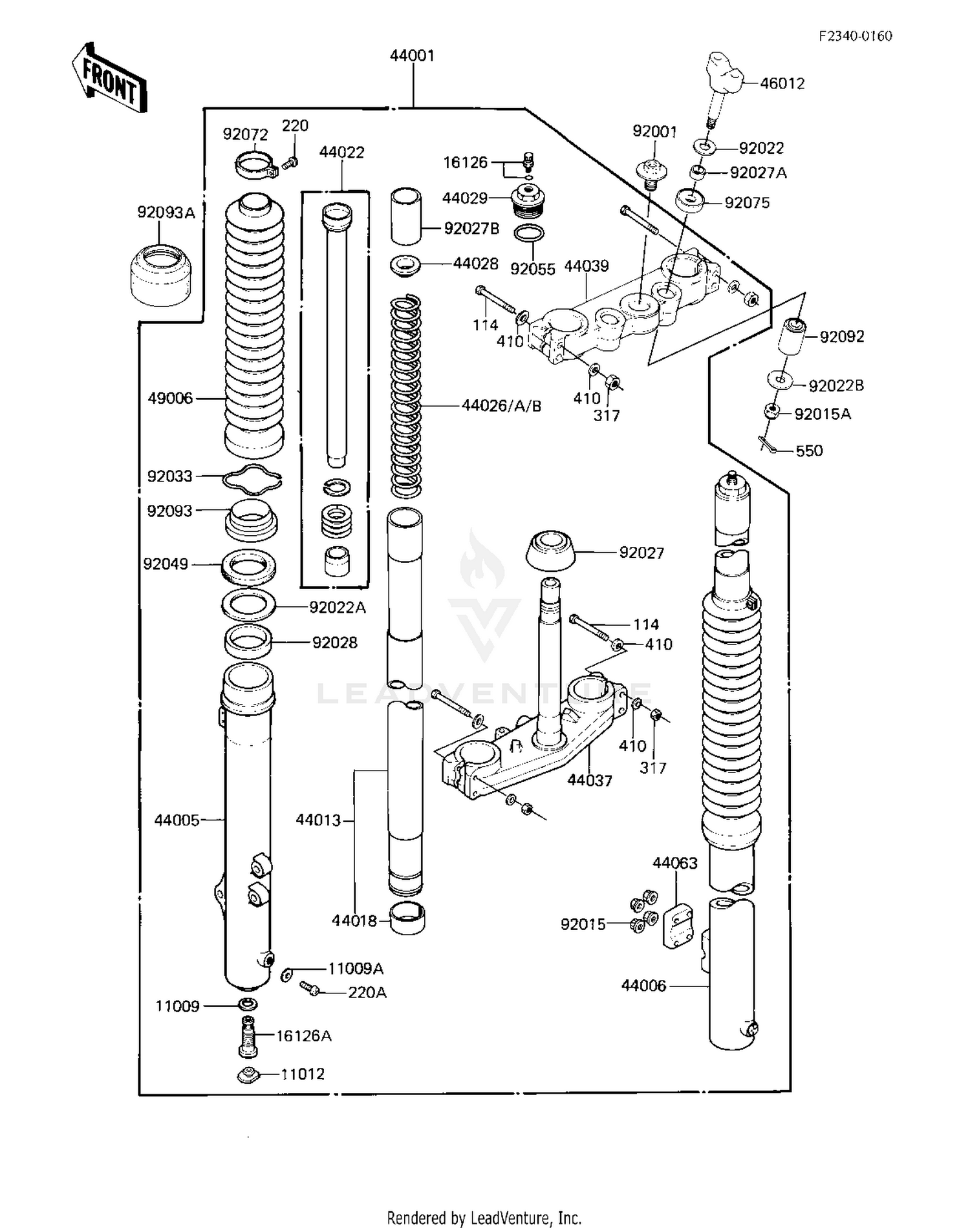

Front Fork ('83 Kx250-c1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1324
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK CYLINDER
11012-1277
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR FRONT FORK
16126-1048
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#16126A
VALVE,FORK CYLINDER
16126-1054
|
$64.00 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1437
|
$1,190.71 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1122
|
$365.62 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1122
|
$365.62 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1101
|
$382.07 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1005
|
$39.95 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1095
|
$100.56 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1192
|
$32.78 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=0
44026-1196
|
$31.01 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=0
44026-1294
|
$75.64 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1010
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1041
|
$42.30 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1084
|
$424.80 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1075
|
$189.90 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER-FRONT AXLE
44063-1008
|
$51.52 | ||
|
Available to order. Add to View Price |
|||
|
#46012
HOLDER-HANDLE
46012-1015
|
$20.29 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1081
|
$82.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-1520
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.4X28X2.3
92022-1239
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER-HANDLEBAR FIT
92022-196
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FRONT FORK
92027-1427
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,12.5X16X8
92027-1474
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,FORK INNER
92027-1533
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1145
Superseded by 92028-1581
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1295
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-1078
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HANDLE HOLDER
92075-1398
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-005
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK DUST
92093-1086
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FORK DUST
92093-1094
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET,8X55
114G0855
Superseded by 115G0855
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220B0316
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317G0800
Superseded by 317BA0800
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
