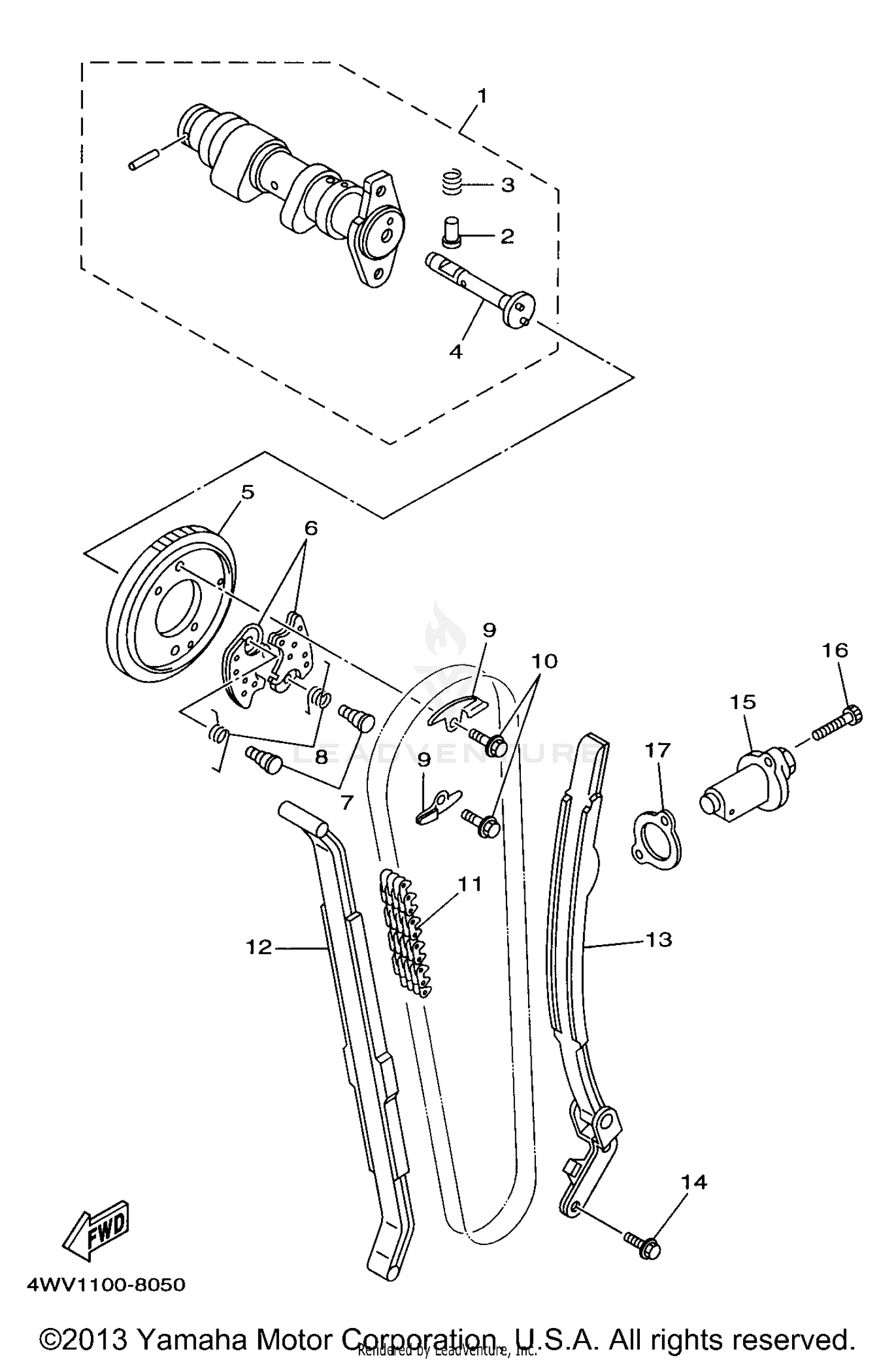

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
4WV-12170-00-00
|
$268.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DECOMPRESSION LEVER
3YF-12284-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-051L0-00
|
$1.15 | ||
|
Unavailable |
|||
|
#4
LEVER, DECOMPRESSION SPRING
3YF-12290-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CAM CHAIN
3YF-12176-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM, DECOMPRESSION
4WV-12288-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
SHAFT, TENSIONER
3YF-12247-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
3YF-12216-00-00
|
$3.35 | ||
|
Unavailable |
|||
|
#9
PLATE, GUIDE STOPPER 1
4WV-12233-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-07342-00
Superseded by 90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CHAIN (82RH2015-126)
94590-27126-00
Superseded by 94591-40126-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, STOPPER 1
34K-12231-00-00
Superseded by 34K-12231-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#13
GUIDE, STOPPER 2
34K-12241-00-00
Superseded by 34K-12241-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-060A6-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
TENSIONER ASSY, CAM CHAIN
3TB-12210-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90110-06225-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, TENSIONER CASE
4DW-12213-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
