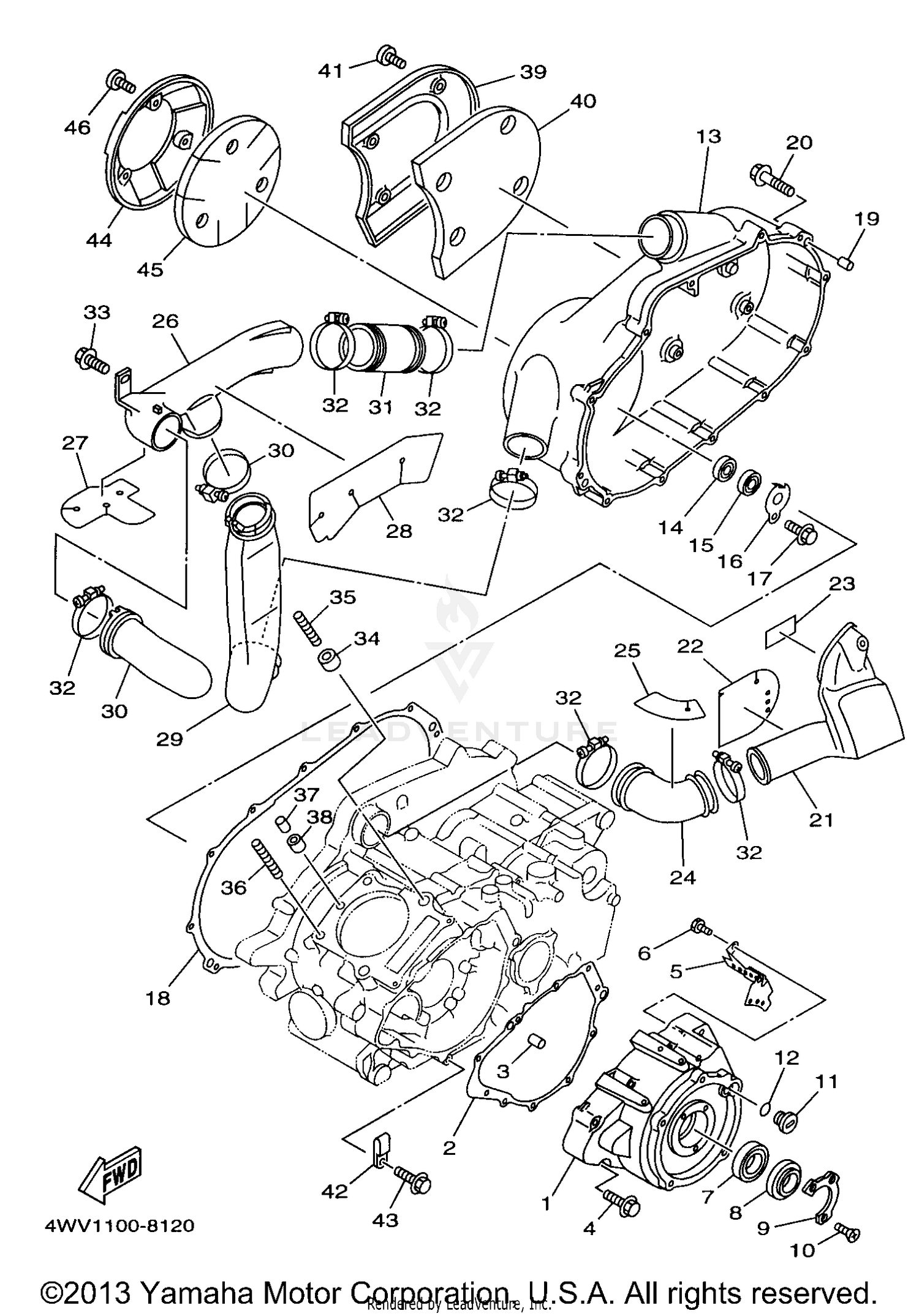

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
4WV-15411-00-00
|
$202.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
4WV-15451-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06045-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE
4WV-15113-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#6
BOLT
91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-07801-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-28476-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST
1UY-15719-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, COUNTERSUNK
90151-05023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
90340-14117-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CRANKCASE 3
4WV-15431-00-00
Superseded by 99999-03174-00
|
$365.99 | ||
|
Unavailable |
|||
|
#14
BEARING
93306-20120-00
Superseded by 93306-20117-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93101-12168-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, BEARING COVER
4WV-15381-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CRANKCASE COVER 3
4WV-15462-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95027-06040-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUCT, AIR
4WV-15471-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#22
SEAL, PROTECTOR 2
4WV-15496-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#23
DAMPER 3
4WV-15335-00-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, AIR DUCT
4WV-15474-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#25
SEAL, PROTECTOR 1
4WV-15495-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#26
DUCT, AIR
4WV-15473-00-00
Superseded by 4WV-15473-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#27
SEAL, PROTECTOR
4WV-15494-00-00
Superseded by 4WV-15494-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
TAPE, DAMPER
4WV-15498-00-00
Superseded by 4WV-15498-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#29
DUCT, AIR
4WV-15475-01-00
Superseded by 4WV-15475-02-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUCT, AIR
4WV-15477-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#31
SEAL, AIR DUCT
4WV-15472-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
HOSE CLAMP ASSY
90450-64089-00
Superseded by 90450-64004-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, STUD
90116-10506-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, STUD
90116-10263-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET
90430-08178-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PROTECTOR, COVER
4WV-15499-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#40
DAMPER, ENGINE MOUNT 2
4WV-15326-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
SCREW, BIND
98907-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90461-08113-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95027-06012-00
|
$3.80 | ||
|
Unavailable |
|||
|
#44
PROTECTOR
4WV-15491-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#45
DAMPER, ENGINE MOUNT 1
4WV-15316-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#46
SCREW, BIND
98907-06014-00
|
$7.99 | ||
|
Unavailable |
|||
