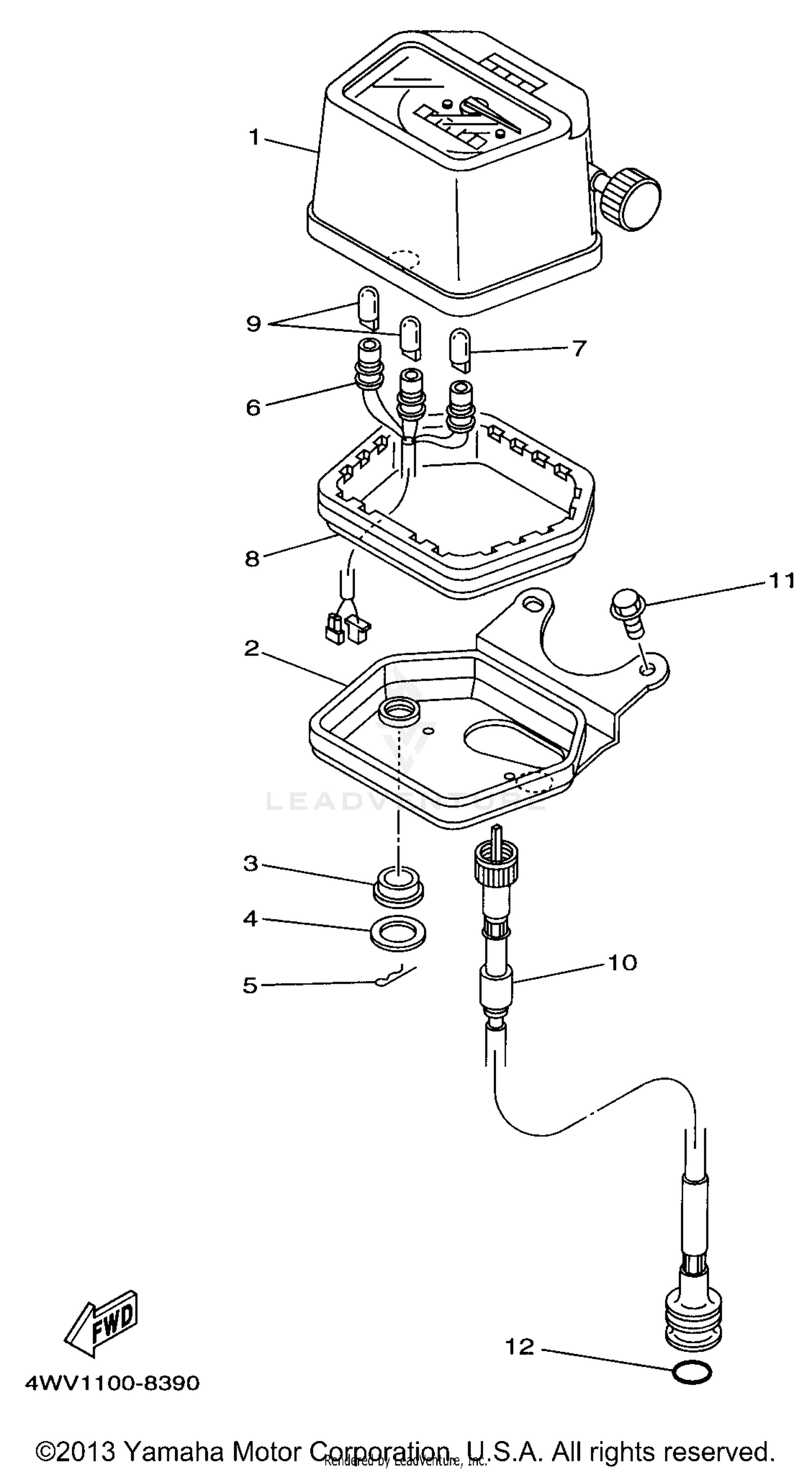

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY
4WV-83570-00-00
|
$391.03 | ||
|
Unavailable |
|||
|
#2
BRACKET, METER
4GB-83519-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
53Y-83524-00-00
Superseded by 90201-05033-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
437-83525-00-00
Superseded by 90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET, METER
4WV-83536-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#7
BULB (12V-3.4W T10)
4R0-83517-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
5Y0-83513-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-1.7W)
3GM-83517-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPEEDOMETER CABLE ASSY
4WV-83550-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
