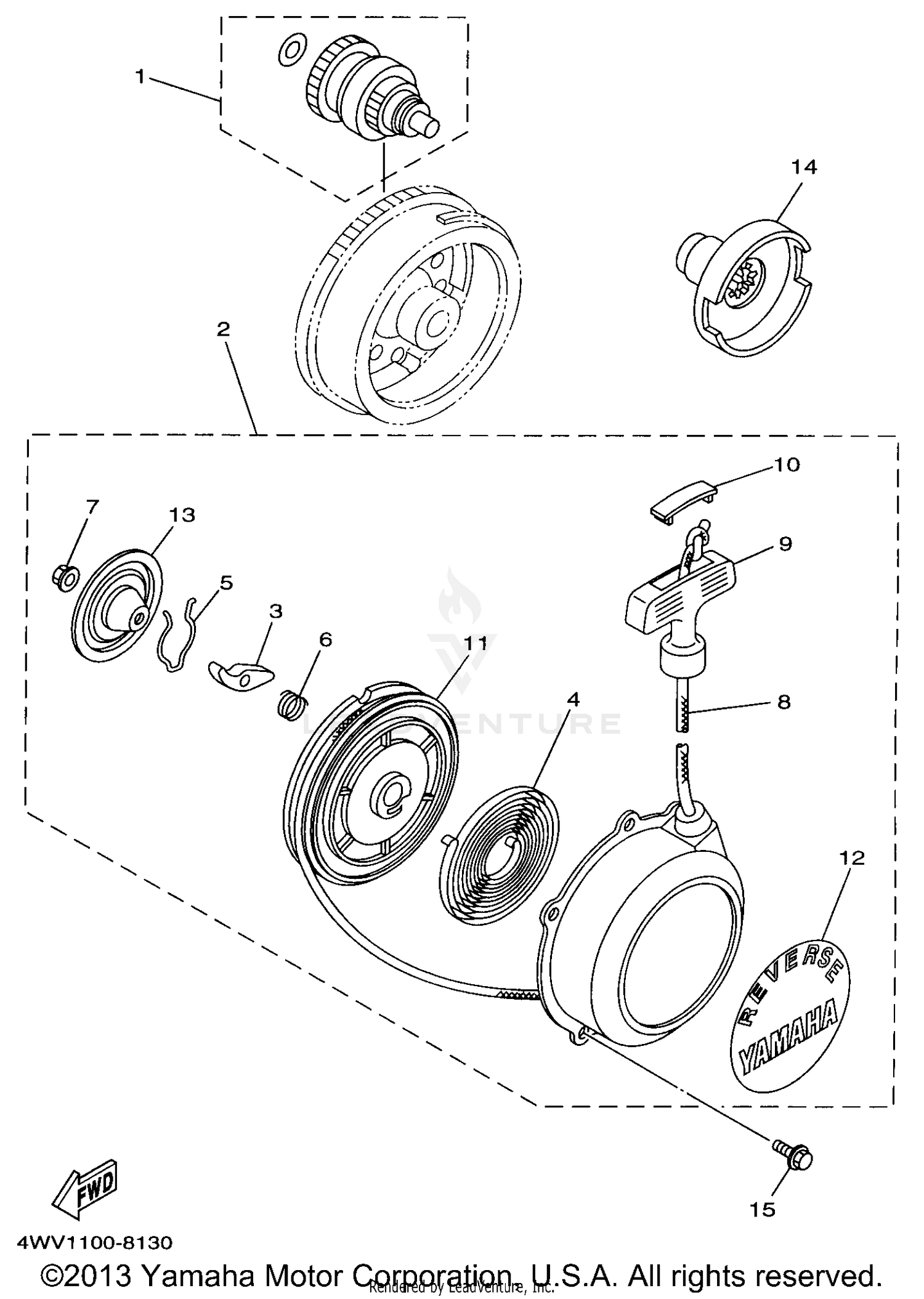

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IDLER GEAR ASSY
4WV-15650-00-00
Superseded by 4WV-15570-01-00
|
$450.99 | ||
|
Unavailable |
|||
|
#2
STARTER ASSY
4WV-15710-00-00
Superseded by 5GT-15710-00-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAWL, DRIVE
21V-15741-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, STARTER
21V-15713-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FRICTION
21V-15715-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
21V-15767-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95702-06100-00
Superseded by 95780-06500-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, STARTER
21V-15751-00-00
Superseded by 89A-15751-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE, STARTER
3X3-15755-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
21V-15779-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRUM, SHEAVE
24W-15714-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM
1UY-15443-00-00
|
$12.95 | ||
|
Unavailable |
|||
|
#13
PLATE, DRIVE
1UY-15716-00-00
Superseded by 21V-15716-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PULLEY, STARTER
1UY-15723-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06553-00
Superseded by 95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
