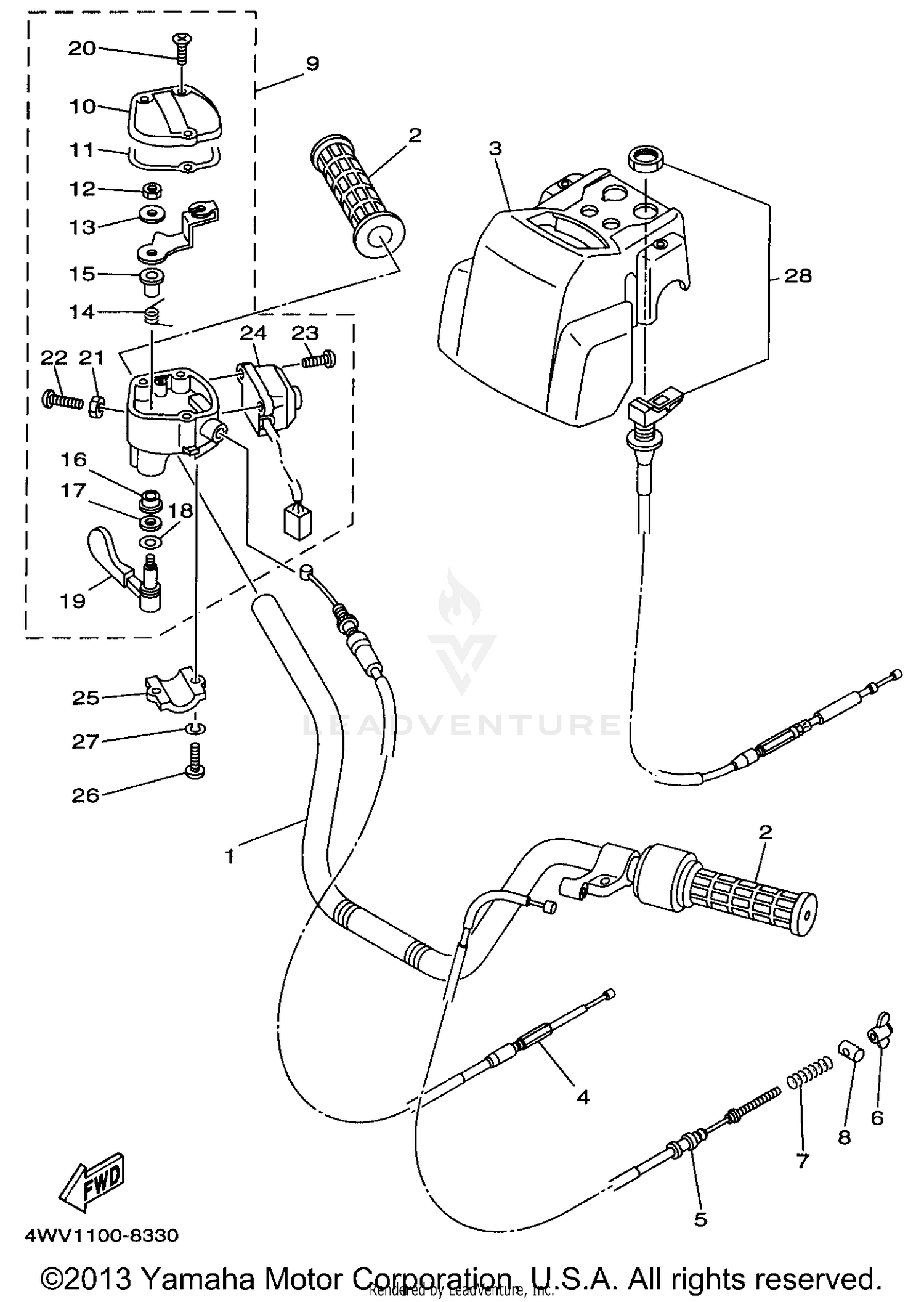

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2HR-26111-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
3GB-26241-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
4WV-26124-00-00
Superseded by 4WV-26124-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, THROTTLE 1
4WV-26311-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, BRAKE
4WV-26341-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, ADJUSTING
20E-26343-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-10782-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
THROTTLE LEVER ASSY
4WV-26250-00-00
Superseded by 4WV-26250-12-00
|
$244.99 | ||
|
Unavailable |
|||
|
#10
CAP, GEAR
4WV-2628F-00-00
Superseded by 4KB-2628F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
4KB-2628G-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#14
SPRING
1NV-26304-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
1NV-26259-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
1NV-2625K-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93104-09025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
1NV-26129-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#20
SCREW
90149-04278-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,WITH WASHER
97607-04210-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SWITCH, HANDLE 1
4WV-83976-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
CABLE, STARTER 1
4WV-26331-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
