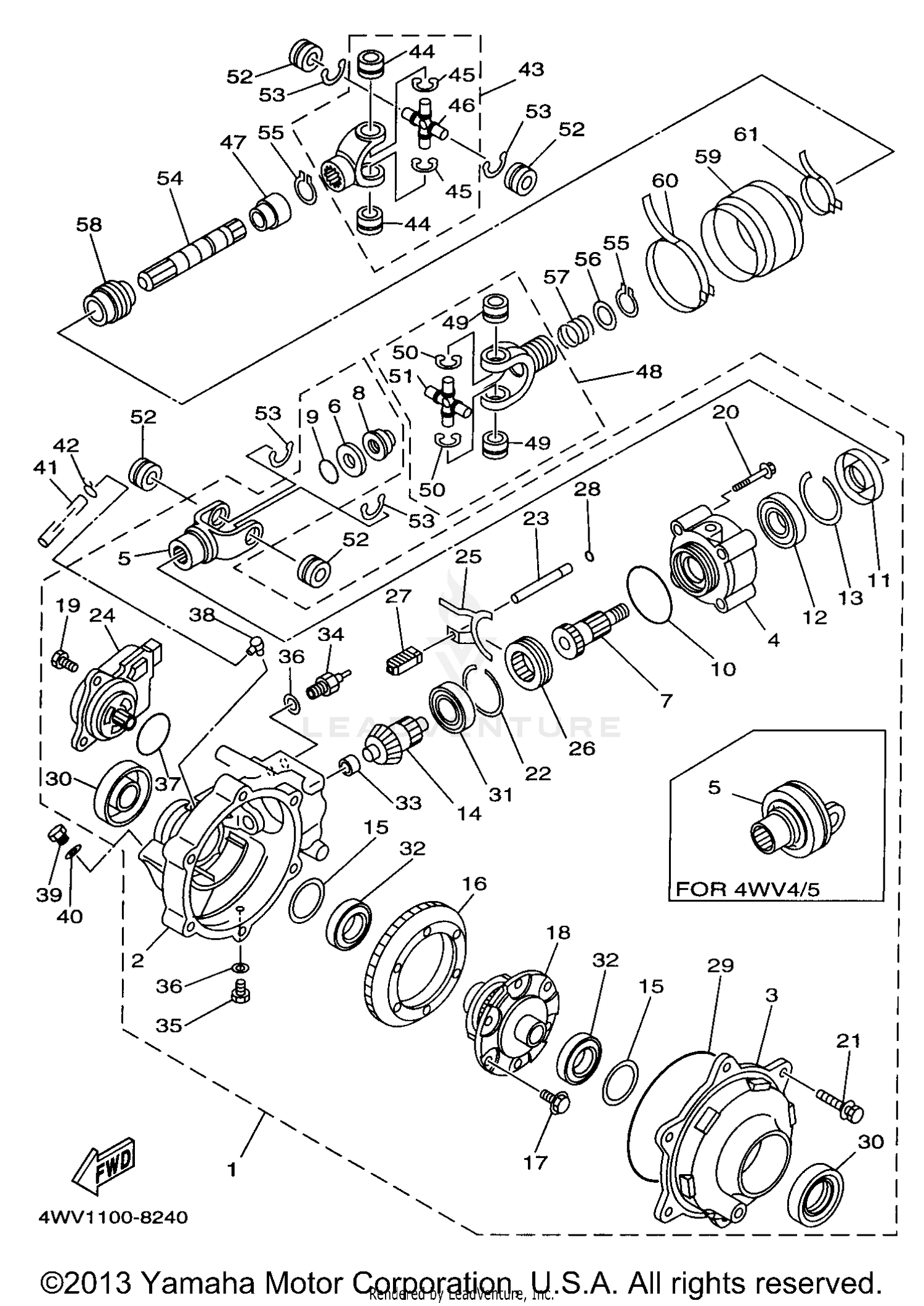

Front Differential Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT AXLE COMP.
4WV-46160-00-00
Superseded by 5GT-46160-01-00
|
$1,650.99 | ||
|
Unavailable |
|||
|
#2
HOUSING, SHAFT DRIVE 2
4WV-46161-00-00
|
$424.99 | ||
|
Unavailable |
|||
|
#3
HOUSING, BEARING 2
4WV-46162-00-00
|
$189.99 | ||
|
Unavailable |
|||
|
#4
HOUSING, PINION BEARING
4WV-46144-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#5
YOKE, JOINT 2
4WV-46146-00-00
Superseded by 5GT-46146-00-00
|
$160.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-14633-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE PINION
4WV-46121-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT 1
4WV-46145-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14359-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-69628-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, OIL 1
4WV-46163-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
BEARING 1
4WV-46164-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#13
RING, HOLE SNAP 1
4WV-46142-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
PINION, DRIVE 2
4WV-46141-00-00
|
$253.99 | ||
|
Unavailable |
|||
|
#15
SHIM, THRUST (1.0T)
4WV-46119-50-00
Superseded by 4WV-46119-51-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.5T)
4WV-46119-60-00
|
$14.99 | ||
|
Unavailable |
|||
|
#
SHIM, THRUST (2.0T)
4WV-46119-70-00
|
$17.81 | ||
|
Unavailable |
|||
|
#
SHIM, THRUST (0.5T)
4WV-46119-40-00
Superseded by 4WV-46119-41-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.4T)
4WV-46119-30-00
Superseded by 4WV-46119-31-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.3T)
4WV-46119-20-00
Superseded by 4WV-46119-21-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (2.5T)
4WV-46119-80-00
|
$19.99 | ||
|
Unavailable |
|||
|
#
SHIM, THRUST (0.1T)
4WV-46119-00-00
Superseded by 4WV-46119-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.2T)
4WV-46119-10-00
Superseded by 4WV-46119-11-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, RING 2
4WV-46131-00-00
Superseded by 5GT-46131-00-00
|
$370.99 | ||
|
Unavailable |
|||
|
#17
BOLT 1
4WV-46155-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LIMITED SLIP DIFF. A
4WV-46470-00-00
Superseded by 5GT-46470-01-00
|
$720.99 | ||
|
Unavailable |
|||
|
#19
BOLT
91317-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 2
4WV-46158-00-00
|
$4.45 | ||
|
Unavailable |
|||
|
#21
BOLT 3
4WV-46159-00-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,HOLE SNAP 2
4WV-46143-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHAFT, SHIFTER
4WV-18318-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
SERVO MOTOR COMP
4WV-4616A-00-00
Superseded by 5GH-4616A-02-00
|
$741.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FORK, SHIFT 4
4WV-18514-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#26
CLUTCH,DRIVEN
4WV-46441-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHAFT 2
4WV-18319-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#28
O-RING 1
4WV-46134-00-00
|
$1.65 | ||
|
Unavailable |
|||
|
#29
O-RING 2
4WV-46135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
93102-35380-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT 1
4WV-46145-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#32
BEARING 3
4WV-46166-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#33
BEARING 4
4WV-46167-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NEUTRAL SWITCH ASSY
3GD-82540-11-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLUG, DRAIN 1
4WV-46168-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#36
GASKET 1
4WV-46132-00-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
93210-50768-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BREATHER
2N4-15371-00-00
Superseded by 5UG-15371-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET
214-11198-01-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L310)
90445-072J3-00
Superseded by 90445-072G8-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-07029-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#43
CROSS JOINT COMP. 2
3HN-46107-00-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING
93399-99926-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CIRCLIP
93440-20088-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPIDER
2HR-46187-00-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SEAL 2
5GT-46137-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
CROSS JOINT COMP. 3
4GB-46108-10-00
|
$485.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING
93399-99926-00
|
$64.99 | ||
|
Unavailable |
|||
|
#50
CIRCLIP
93440-20088-00
|
$7.99 | ||
|
Unavailable |
|||
|
#51
SPIDER
2HR-46187-00-00
|
$222.99 | ||
|
Unavailable |
|||
|
#52
BEARING
93399-99926-00
|
$64.99 | ||
|
Unavailable |
|||
|
#53
CIRCLIP
93440-20088-00
|
$7.99 | ||
|
Unavailable |
|||
|
#54
SHAFT, DRIVE 2
4WV-46173-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#55
CIRCLIP
93410-22039-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER, PLATE
90201-225M9-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SPRING, COMPRESSION
90501-234F8-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SEAL 1
4GB-46136-10-00
|
$66.99 | ||
|
Unavailable |
|||
|
#59
SEAL 1
4GB-46136-02-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLAMP
90450-78077-00
|
$25.99 | ||
|
Unavailable |
|||
|
#61
CLAMP
90450-35069-00
|
$10.99 | ||
|
Unavailable |
|||
