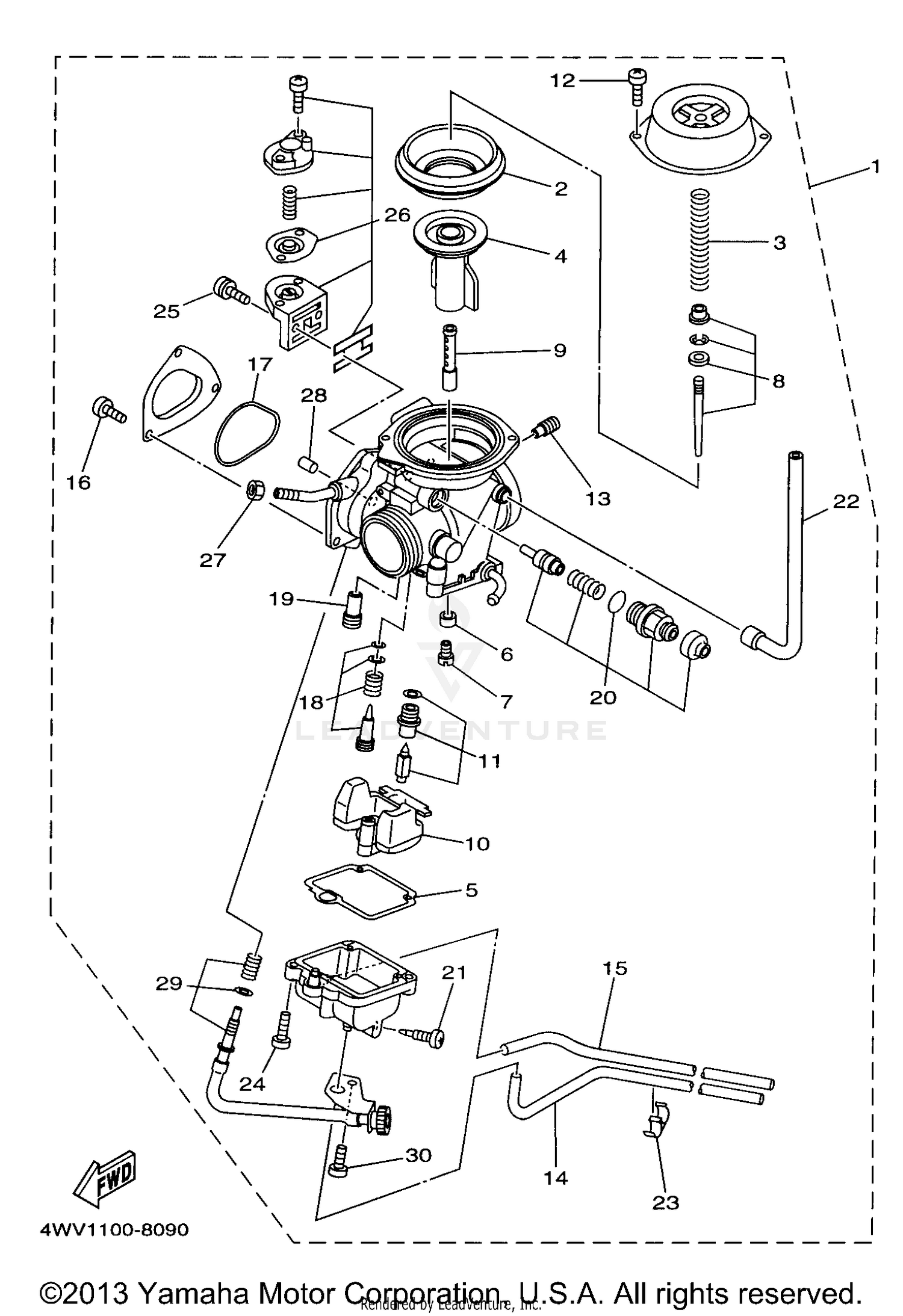

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4WV-14901-00-00
|
$769.07 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
4WV-14901-10-00
|
$388.99 | ||
|
Unavailable |
|||
|
#2
DIAPHRAGM
4WV-24411-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, DIAPHRAGM
4WV-14933-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#4
VALVE
4WV-14272-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
4WV-14147-20-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING
4WV-14918-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JET, MAIN (143.8)
620-1423E-57-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
JET, MAIN (#145 )
620-14231-29-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE SET
4WV-1490J-10-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
NEEDLE SET
4WV-1490J-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NOZZLE, MAIN
4WV-14941-90-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT
4WV-14985-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE ASSY
4WV-14190-28-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98502-05008-00
Superseded by 98507-05008-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET, MAIN (#35)
239-14231-07-00
|
|||
|
Unavailable |
|||
|
#
PILOT JET, AIR (0.7)
239-14172-07-00
|
$5.00 | ||
|
Unavailable |
|||
|
#14
PIPE
4WV-14996-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#15
PIPE
4WV-14193-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98502-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4WV-14147-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PILOT SCREW SET
4WV-14105-00-00
Superseded by 4WV-14105-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, PILOT ( 42.5)
4HR-14142-42-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STARTER SET
4WV-1410A-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, DRAIN
12R-14191-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE
4WV-14197-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#23
CLIP
87M-14137-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98502-05014-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,PANHEAD
97602-04112-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
DIAPHRAGM ASSY
4WV-14940-00-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CABLE ADJUSTING
522-14161-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GUIDE, CABLE
1UY-14155-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
THROTTLE SCREW SET
4WV-14103-00-00
Superseded by 4WV-14103-01-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98502-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
