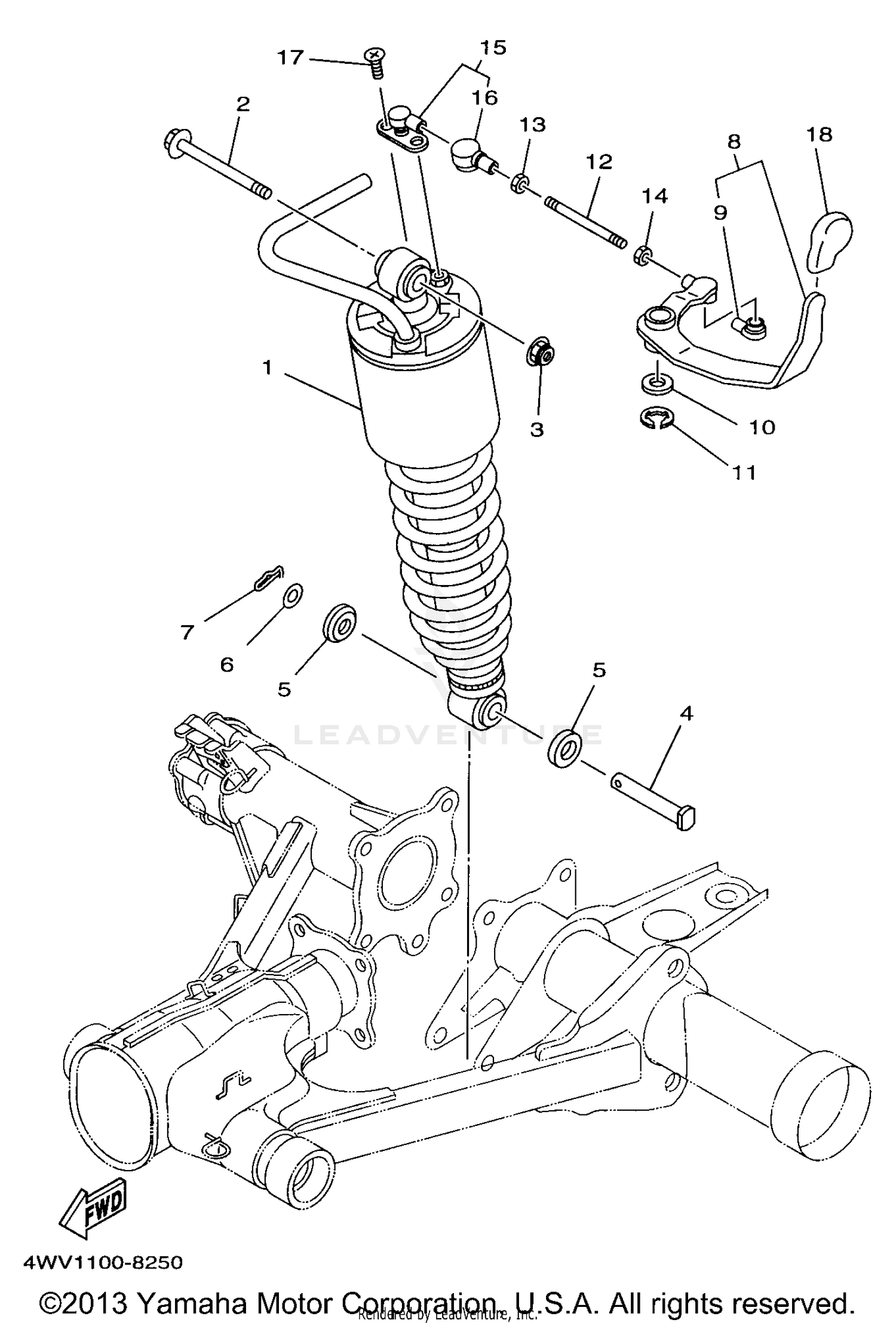

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSEMBLY, REAR
4WV-22210-00-00
|
$614.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-12425-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-12072-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CLEVIS
90240-12092-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
1W1-22128-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-127J6-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90468-20196-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER
4WV-2283G-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#9
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-15797-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93430-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, SHIFT
2XK-18115-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT(COUNTER CLOCKWISE)
90170-06289-00
Superseded by 90170-06228-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, LEVER 2
4WV-2283J-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#16
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
SCREW, FLAT HEAD
98707-06010-00
|
$1.25 | ||
|
Unavailable |
|||
|
#18
GRIP
4WV-22837-00-00
|
$8.99 | ||
|
Unavailable |
|||
