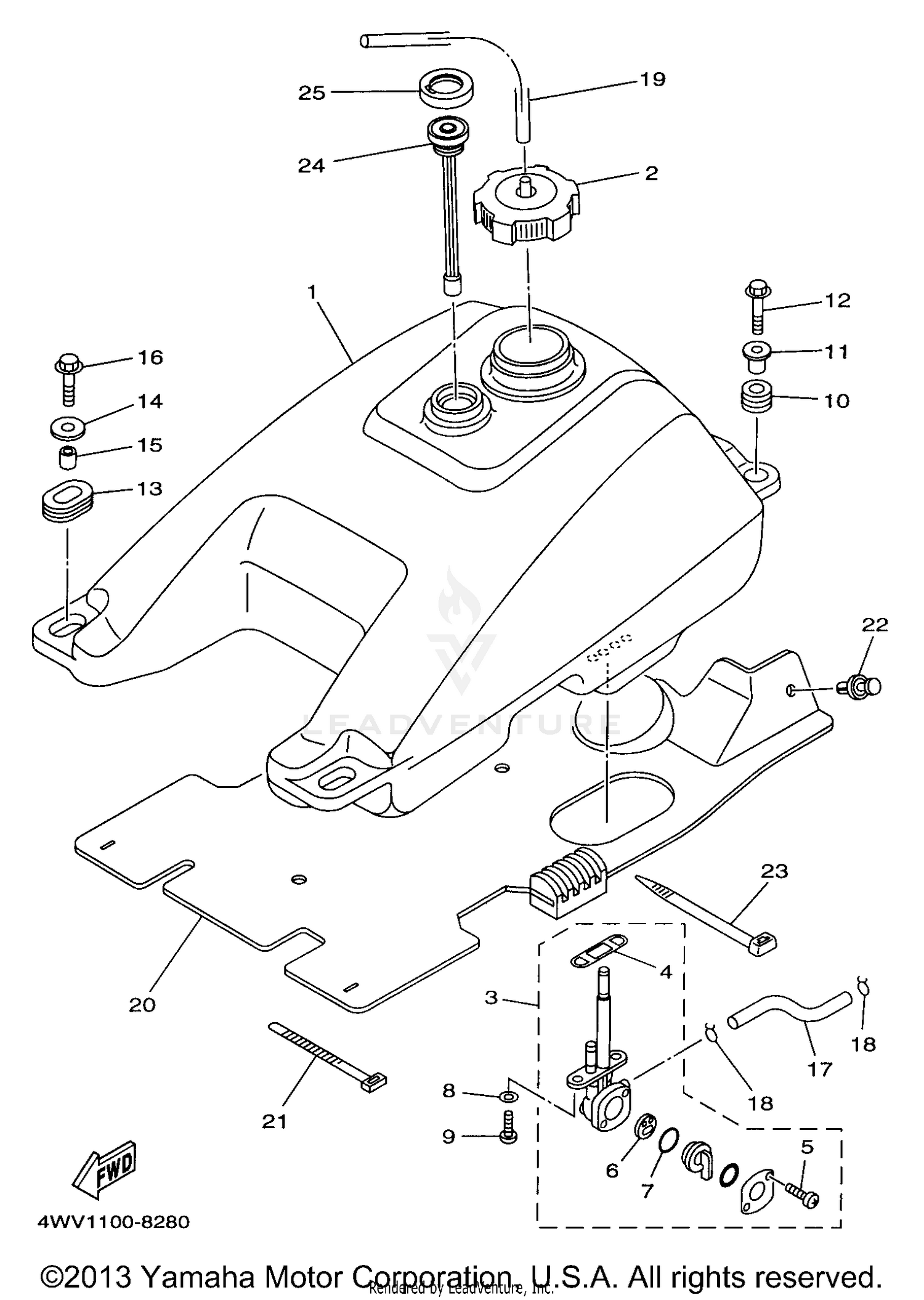

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4WV-24110-00-00
|
$273.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUEL COCK ASSY 1
23F-24500-10-00
Superseded by 23F-24500-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
4X8-24512-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-18290-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-066J1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,FLANGE
95807-06030-00
Superseded by 95817-06030-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-01400-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06073-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE (L110)
90445-10679-00
Superseded by 90445-10752-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L460)
90445-083J5-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, PLATE 1
4WV-2414H-00-00
Superseded by 5GT-2414H-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#21
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIVET
90269-07076-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
1UA-82591-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUEL METER ASSY
4SH-24260-00-00
Superseded by 4SH-24260-11-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOUSING, FUEL METER
4SH-24261-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
