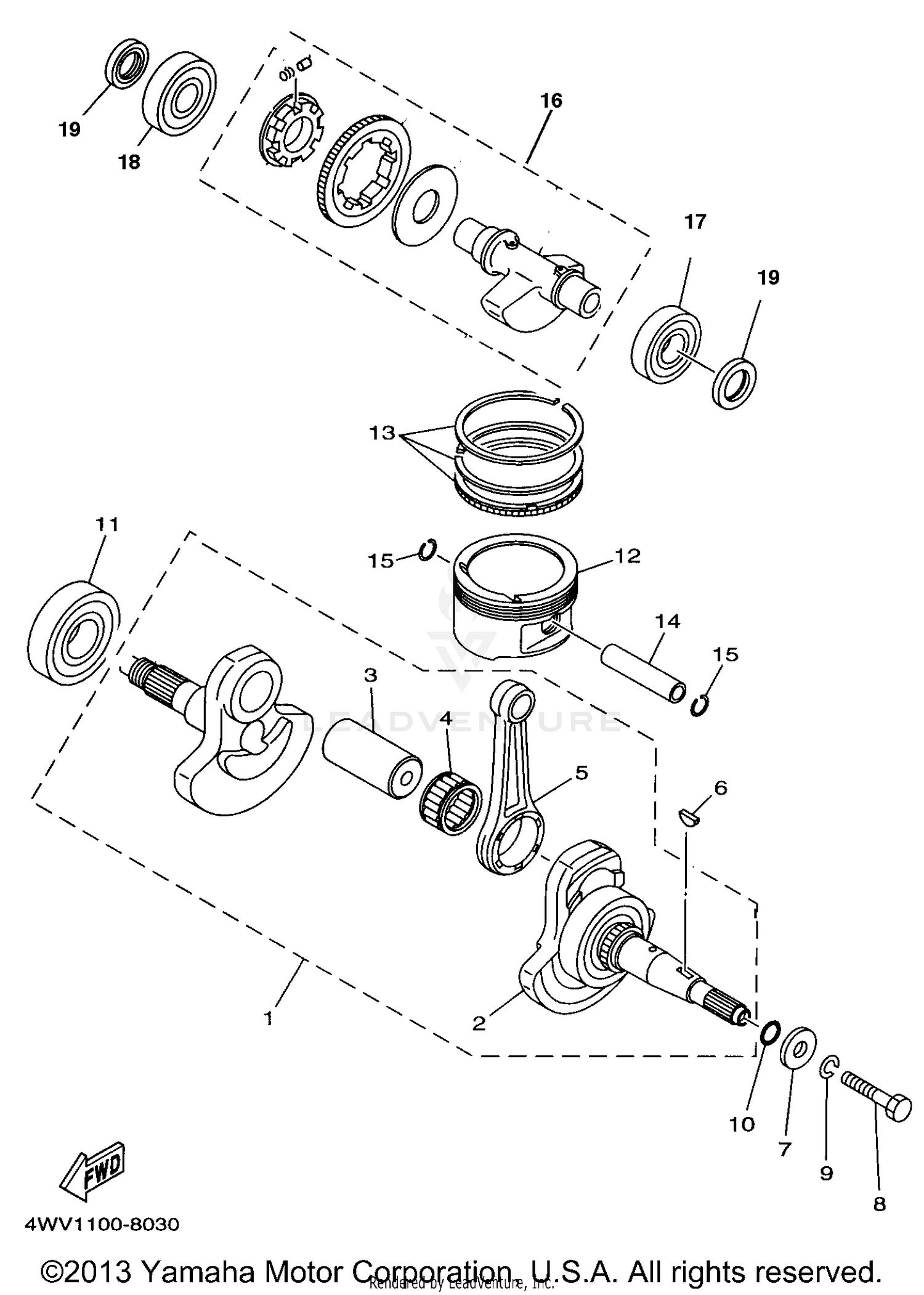

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
4WV-11400-00-00
|
$790.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
4WV-W1141-00-00
|
$583.99 | ||
|
Unavailable |
|||
|
#3
PIN, CRANK 1
4WV-11681-00-00
Superseded by 4WV-11681-10-00
|
$76.99 | ||
|
Unavailable |
|||
|
#4
BEARING
93310-637D3-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
4WV-11651-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#6
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-107F8-00
Superseded by 90201-10058-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90101-10568-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92907-10100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-16290-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30702-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON (STD)
3TB-11631-00-Y0
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
3TB-11636-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (1.00MM O/S)
3TB-11638-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (0.50MM O/S)
34L-11610-20-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
34L-11610-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (1.00MM O/S)
34L-11610-40-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, PISTON
1JK-11633-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-24028-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER ASSY
5GT-11500-00-00
|
$396.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-30525-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-30534-00
Superseded by 93306-30560-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93101-25106-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
