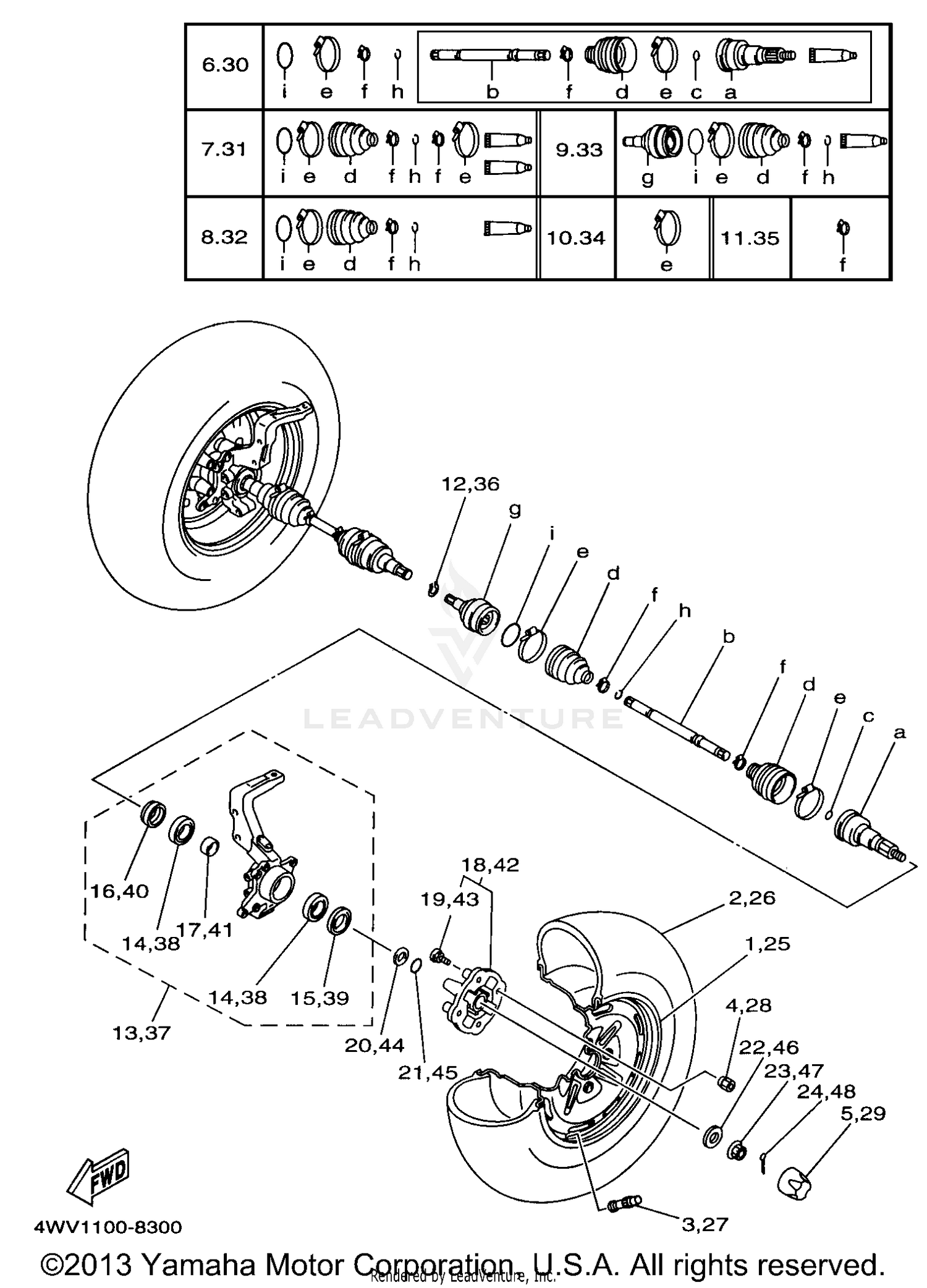

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
4WV-25180-00-MA
|
$235.61 | ||
|
Unavailable |
|||
|
#2
TIRE
94108-1211G-00
|
$151.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
52H-2512A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL JOINT SET
4WV-2510F-00-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT SET (BALL JOINT)
4WV-2510G-00-00
Superseded by 5GT-2510G-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET (DOUBLE OFF SET JOINT)
4WV-2510H-00-00
Superseded by 5GT-2510H-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#9
DOUBLE OFF SET JOINT
4WV-2510J-00-00
Superseded by 5GT-2510J-00-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT BAND (SMALL)
4WV-2512G-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-22119-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEERING, KNUCKLE ASSEMBLY (LEF
4WV-23501-00-00
|
$429.99 | ||
|
Unavailable |
|||
|
#14
BEARING
93306-00612-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-38383-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-38417-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-30325-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HUB, FRONT
4WV-25111-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#19
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-281V8-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-162L6-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WHEEL COMP.
4WV-25180-00-MA
|
$235.61 | ||
|
Unavailable |
|||
|
#26
TIRE
94108-1211G-00
|
$151.99 | ||
|
Unavailable |
|||
|
#27
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
NUT
90179-10540-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
CAP, WHEEL
52H-2512A-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#30
BALL JOINT SET
4WV-2510F-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#31
BOOT SET (BALL JOINT)
4WV-2510G-00-00
Superseded by 5GT-2510G-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#32
BOOT SET (DOUBLE OFF SET JOINT)
4WV-2510H-00-00
Superseded by 5GT-2510H-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#33
DOUBLE OFF SET JOINT
4WV-2510J-00-00
Superseded by 5GT-2510J-00-00
|
$243.99 | ||
|
Unavailable |
|||
|
#34
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#35
BOOT BAND (SMALL)
4WV-2512G-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#36
CIRCLIP
93450-22119-00
|
$7.99 | ||
|
Unavailable |
|||
|
#37
STEERING, KNUCKLE ASSEMBLY (RIG
4WV-23502-00-00
|
$429.99 | ||
|
Unavailable |
|||
|
#38
BEARING
93306-00612-00
|
$46.99 | ||
|
Unavailable |
|||
|
#39
OIL SEAL
93102-38383-00
|
$17.49 | ||
|
Unavailable |
|||
|
#40
OIL SEAL
93102-38417-00
|
$17.49 | ||
|
Unavailable |
|||
|
#41
SPACER
90560-30325-00
|
$12.99 | ||
|
Unavailable |
|||
|
#42
HUB, FRONT
4WV-25111-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#43
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
COLLAR
90387-281V8-00
|
$34.99 | ||
|
Unavailable |
|||
|
#45
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$6.99 | ||
|
Unavailable |
|||
|
#46
WASHER, PLATE
90201-162L6-00
|
$13.49 | ||
|
Unavailable |
|||
|
#47
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$21.99 | ||
|
Unavailable |
|||
|
#48
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Unavailable |
|||
