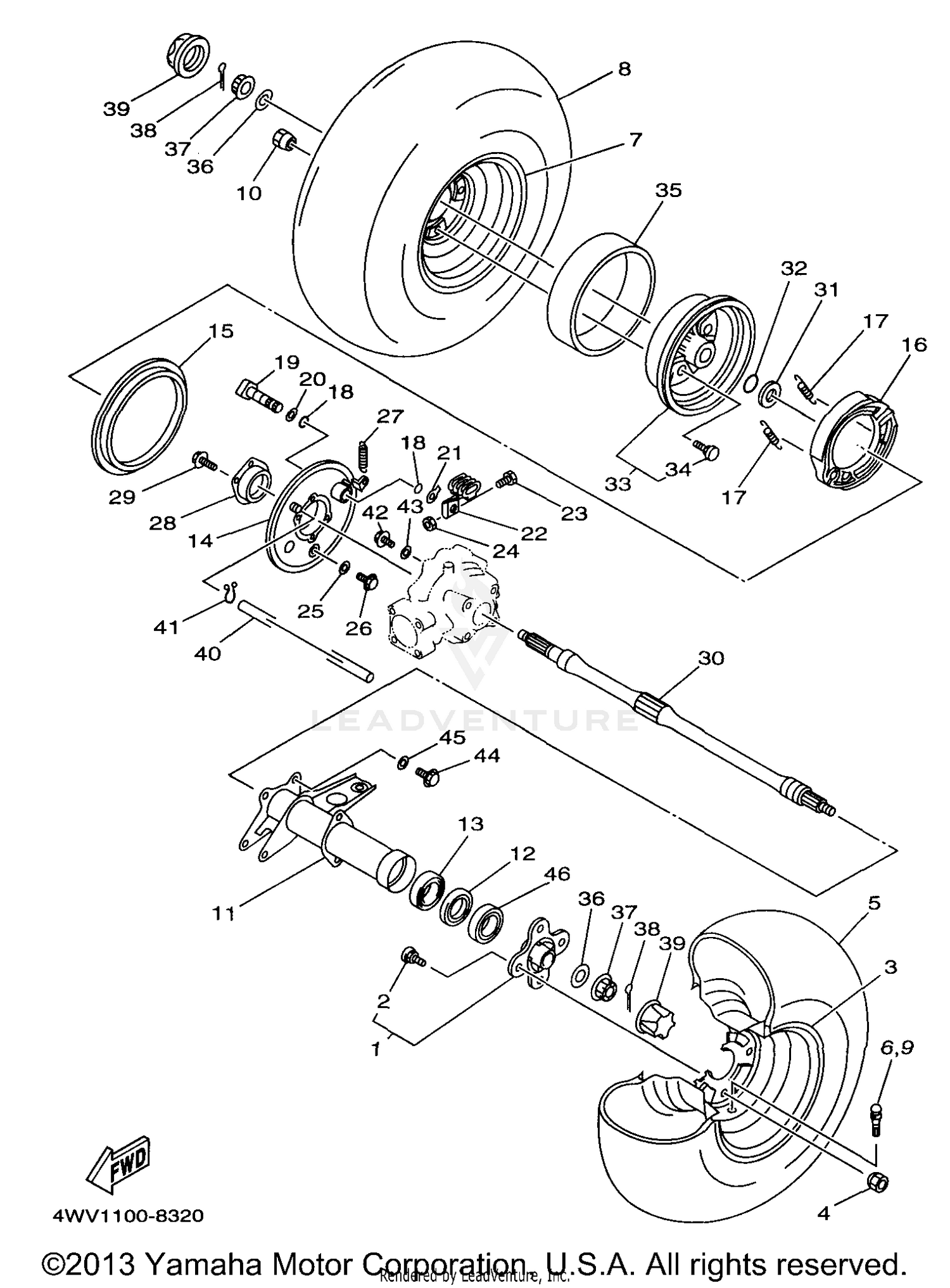

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
4WV-25383-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
REAR WHEEL COMP.
4BD-25390-00-MA
|
$164.99 | ||
|
Unavailable |
|||
|
#4
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
TIRE
94110-1011H-00
|
$111.99 | ||
|
Unavailable |
|||
|
#6
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR WHEEL COMP.
4BD-25390-00-MA
|
$164.99 | ||
|
Unavailable |
|||
|
#8
TIRE
94110-1011H-00
|
$111.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Unavailable |
|||
|
#10
NUT
90179-10540-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
REAR AXLE HOUSING COMP.
4WV-46540-00-00
|
$378.09 | ||
|
Unavailable |
|||
|
#12
OIL SEAL
93106-42037-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-00805-00
Superseded by 93306-00809-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BRAKE SHOE
4GB-25321-00-00
Superseded by 4SH-25321-00-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, PLATE DUST
3GH-25129-00-00
Superseded by 3GH-25129-10-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE KIT
4WV-W2536-00-00
Superseded by 4WV-W253E-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90507-20002-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAMSHAFT
4WV-25351-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, CAMSHAFT
148-25353-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, CAMSHAFT
4WV-25355-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#23
BOLT
90101-06278-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-10016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TENSION
90506-16482-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RETAINER
4GB-46513-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95817-08040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
4WV-25381-00-00
Superseded by 4WV-25381-09-00
|
$361.99 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-284T0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DRUM, BRAKE
4GB-2531E-00-00
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, SERRATION
90114-10012-00
Superseded by 90114-10016-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RING 2
4GB-25336-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-162L6-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CAP, WHEEL
52H-2512A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE (L1200)
90445-080K8-00
|
$4.10 | ||
|
Unavailable |
|||
|
#41
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-10751-00
Superseded by 95817-10025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-101J1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
90105-10751-00
Superseded by 95817-10025-00
|
$7.99 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
90201-101J1-00
|
$7.99 | ||
|
Unavailable |
|||
|
#46
COVER, HUB DUST
4SH-25367-00-00
Superseded by 4SH-25367-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
