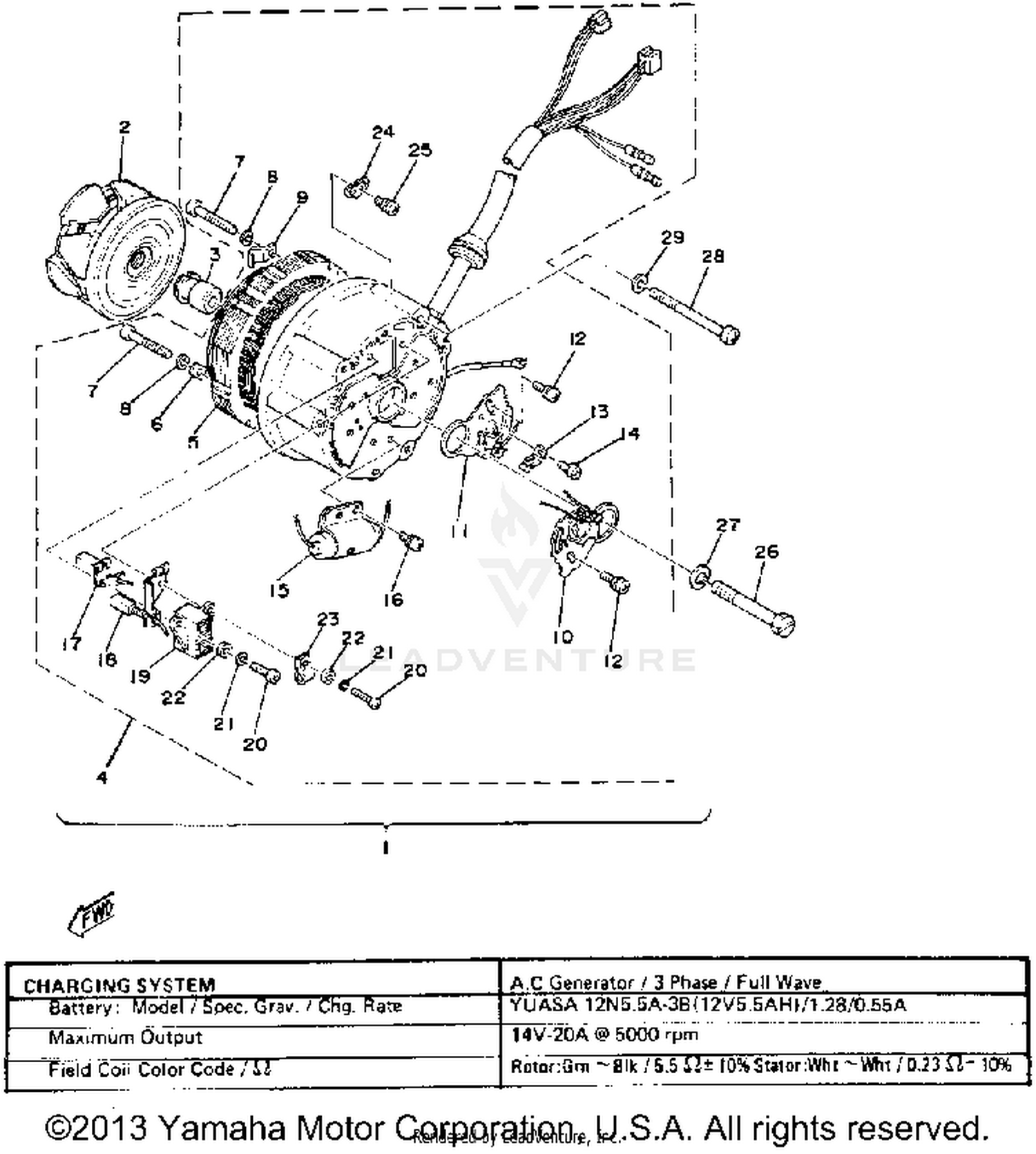

A - C - Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AC GENERATOR ASSEMBLY
2V0-81600-60-00
|
$302.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
1A0-81650-20-00
|
$403.99 | ||
|
Unavailable |
|||
|
#3
CAM
1A0-81651-20-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
STATOR ASSEMBLY
2V0-81610-60-00
|
$242.99 | ||
|
Unavailable |
|||
|
#5
ARMATURE ASSEMBLY
1A0-81640-60-00
|
$461.99 | ||
|
Unavailable |
|||
|
#6
PLATE, ARMTR FTNG
1A0-81639-20-00
|
$0.74 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, CONDENSER
1A0-81627-20-00
|
$0.85 | ||
|
Unavailable |
|||
|
#10
CONTACT BRKR ASSEMBLY
2V0-81621-60-00
|
$40.99 | ||
|
Unavailable |
|||
|
#11
CONTACT BRKR ASSEMBLY
2V0-81622-60-00
|
$80.99 | ||
|
Unavailable |
|||
|
#12
SCREW,PANHEAD
97602-04312-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
LUBRICATOR
131-81231-20-00
|
$4.80 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONDENSER 1
360-81625-90-00
|
$33.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRUSH 1
1A0-81611-20-00
|
$21.99 | ||
|
Unavailable |
|||
|
#18
BRUSH 2
1A0-81612-20-00
|
$22.99 | ||
|
Unavailable |
|||
|
#19
HOLDER, BRUSH
1A0-81613-20-00
|
$25.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
1A0-81661-20-00
|
$3.36 | ||
|
Unavailable |
|||
|
#23
CLAMP
1A0-81628-20-00
|
$3.16 | ||
|
Unavailable |
|||
|
#24
PLATE, TIMING
1A0-81632-20-00
|
$2.17 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-07438-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98501-06070-00
Superseded by 98580-06570-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
