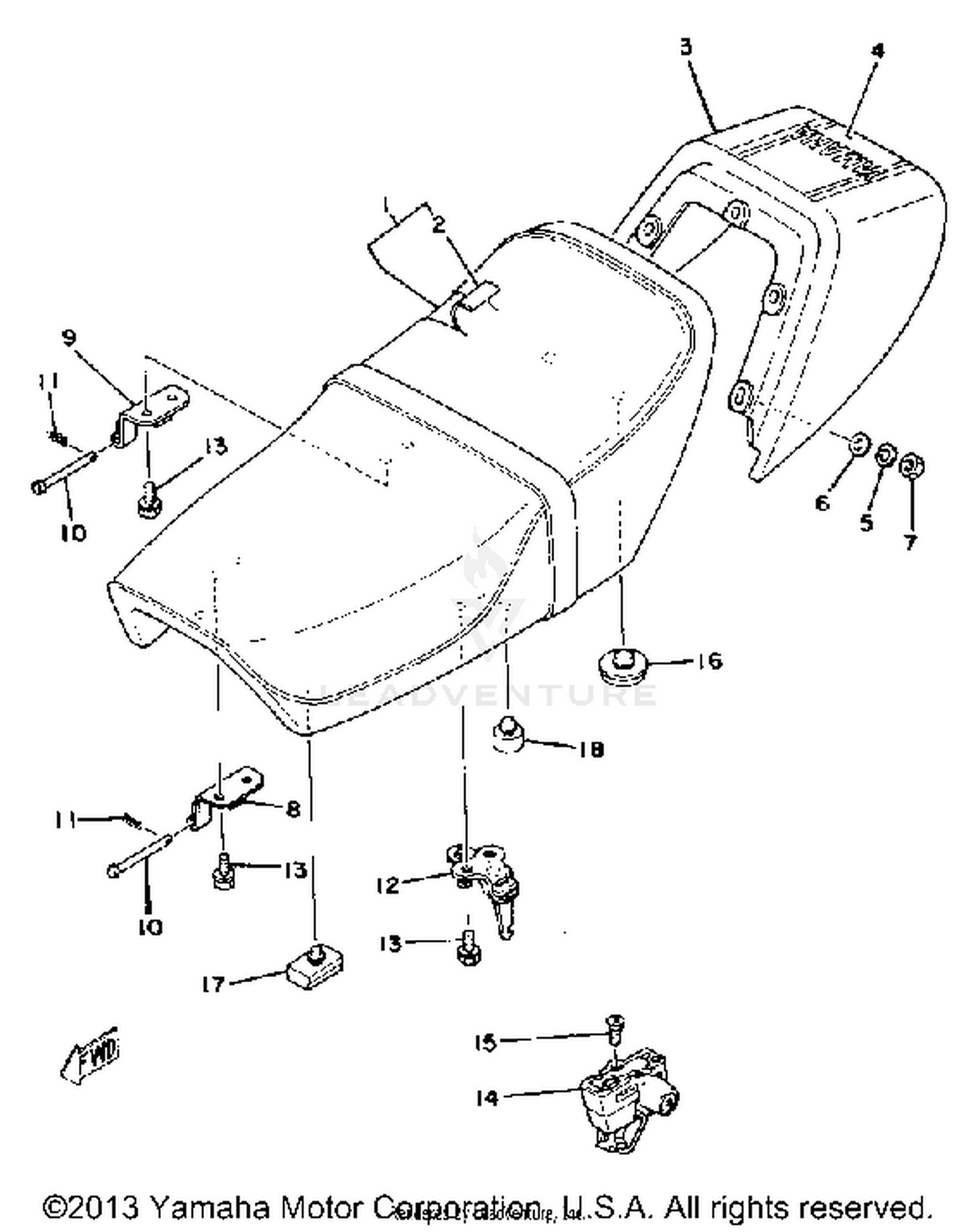

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
2V0-W2472-00-00
|
$340.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
2V0-24731-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#3
COVER, TAIL
2V0-24756-00-Y9
|
$82.58 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, TAIL COVER
2V0-24757-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HINGE, SEAT
248-24726-00-33
|
$14.49 | ||
|
Unavailable |
|||
|
#9
HINGE, SEAT
1A0-24726-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#10
PIN, CLEVIS
91701-05055-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SEAT
371-24728-02-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06304-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT LOCK ASSEMBLY
584-24705-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#15
SCREW, FLAT HEAD
98706-06012-00
Superseded by 98707-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PAD, SEAT
1T4-24741-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, SEAT
214-24724-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, MAIN STAND
278-27114-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
