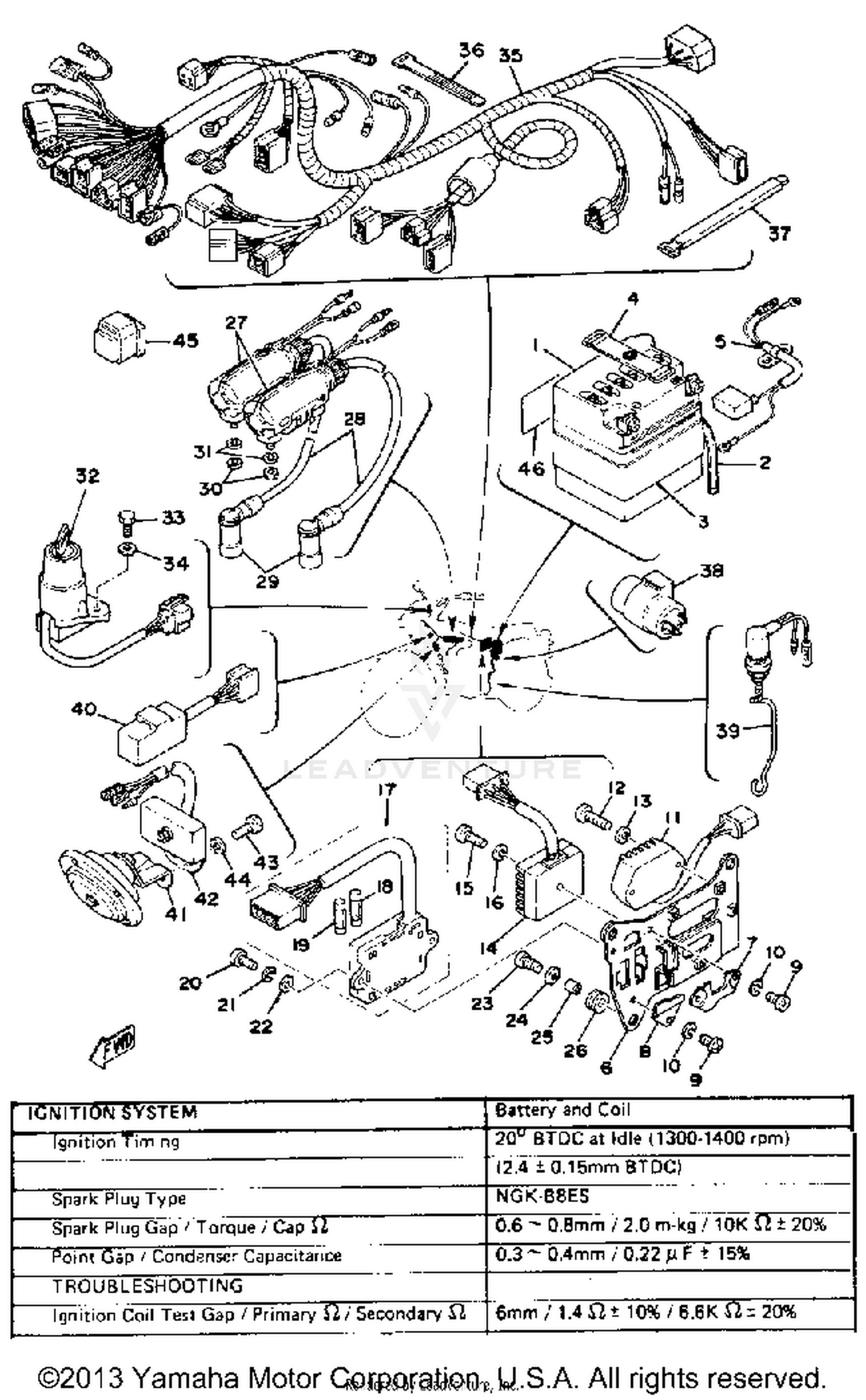

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
12N5.5A3B YUASA BAT
BTY-12N55-A3-B0
Superseded by 12N-55A3B-Y0-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE
90445-08433-00
Superseded by 90445-08383-00
|
$4.15 | ||
|
Unavailable |
|||
|
#3
BAND, BATTERY
1UA-82124-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#4
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, LEAD
1A0-82117-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#6
PLATE 1
1A0-21543-01-00
|
$10.40 | ||
|
Unavailable |
|||
|
#7
COLLAR 1
1A0-21544-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#8
PLATE 3
1A0-21545-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
VOLTAGE REG ASSEMBLY
1A0-81910-20-00
|
$153.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
RECTIFIER ASSEMBLY (1A0-81970-2
1L9-81970-60-00
|
$185.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
FUSE BOX ASSEMBLY
1J7-82170-40-00
|
$106.99 | ||
|
Unavailable |
|||
|
#18
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE
1A0-82161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-062N2-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-13018-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
IGNITION COIL ASSEMBLY
1A0-82310-10-00
|
$131.99 | ||
|
Unavailable |
|||
|
#28
CORD, HIGHT TENSION 1
137-82341-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#29
PLUG CAP ASSY
56J-82370-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
|
$225.99 | ||
|
Unavailable |
|||
|
#33
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
WIRE HARNESS ASSEMBLY
2V0-82590-50-00
|
$70.71 | ||
|
Unavailable |
|||
|
#36
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
FLASHER RELAY ASSEMBLYASSEMBLY
2F0-83350-70-00
Superseded by 2NV-83350-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
STOP SWITCH ASSEMBLY
2R8-82530-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#40
FLASHER CANCEL UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#41
HORN
1A0-83371-21-00
|
$72.99 | ||
|
Unavailable |
|||
|
#42
RESISTOR ASSEMBLY
1A0-85370-10-00
|
$64.99 | ||
|
Unavailable |
|||
|
#43
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#45
RELAY ASSEMBLY
2H7-81950-10-00
|
$88.65 | ||
|
Unavailable |
|||
|
#46
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
