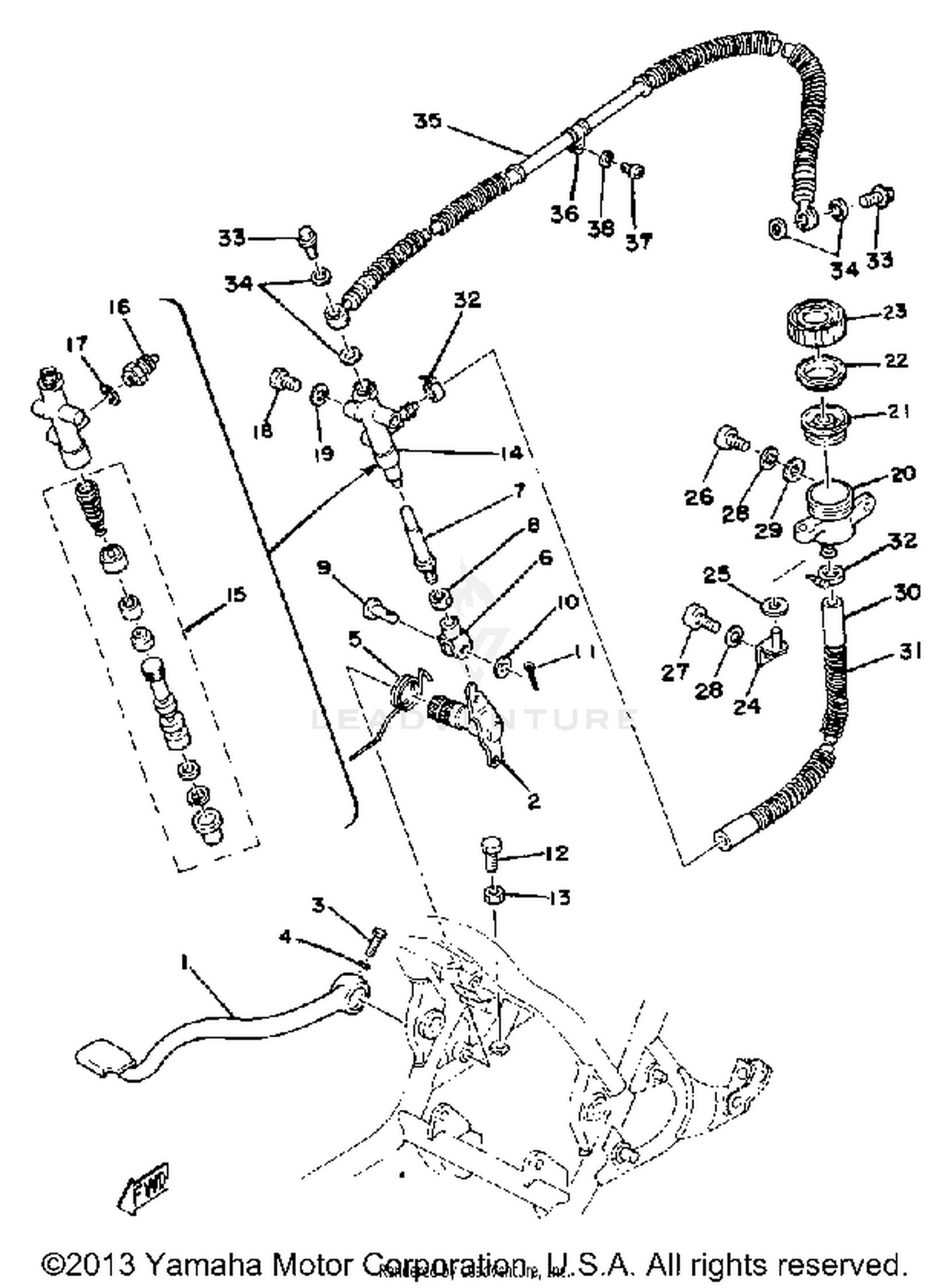

Brake Pedal - Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2R8-27211-00-33
|
$48.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, BRAKE PEDAL
2V0-27212-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
BOLT
90109-06468-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BRAKE PEDAL
2R8-27216-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#6
JOINT
1A1-27222-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#7
ROD, BRAKE
1A1-27231-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#8
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
90240-08013-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95380-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
MSTR CYLINDER ASSEMBLY
2V0-25850-50-00
|
$71.59 | ||
|
Unavailable |
|||
|
#15
CYLINDER KIT
1A1-20000-50-00
|
$49.03 | ||
|
Unavailable |
|||
|
#16
BOLT, UNION
1A1-25899-50-00
|
$4.35 | ||
|
Unavailable |
|||
|
#17
GASKET
1A1-25898-50-00
|
$2.37 | ||
|
Unavailable |
|||
|
#18
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TANK, RESERVOIR
1A1-25894-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH,DIAPHRAGM
2GU-25855-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, RESERVOIR
2KF-25852-50-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, DAMPER
1A1-21798-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-06050-00
Superseded by 90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, RESERVOIR
1A1-25895-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#31
SPRING, COMPRESSION
90501-10406-00
|
$1.88 | ||
|
Unavailable |
|||
|
#32
CLAMP, HOSE
90601-11525-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE, BRAKE 1
2R8-25872-50-00
|
$31.04 | ||
|
Unavailable |
|||
|
#36
CLAMP
90461-08031-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
