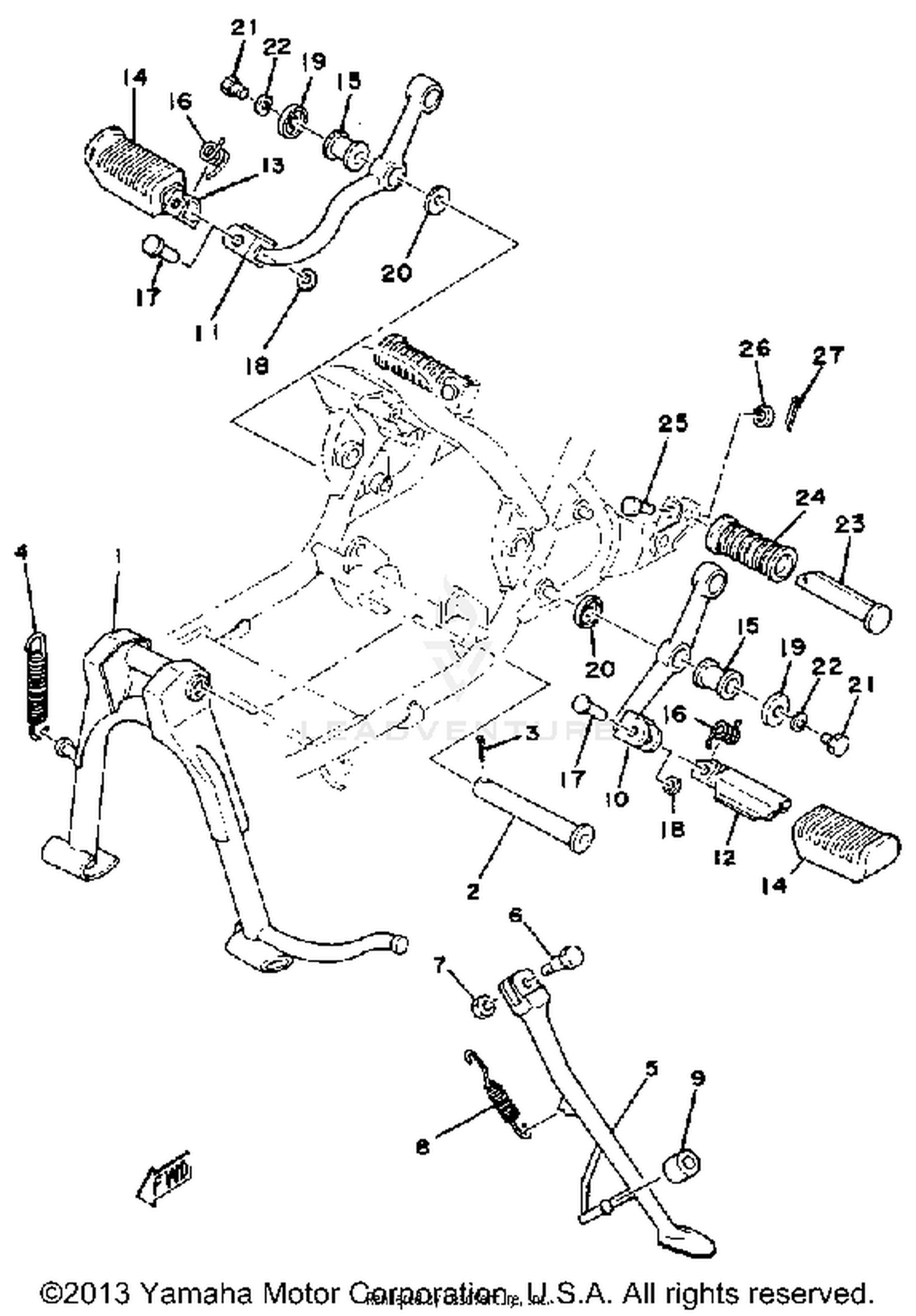

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
278-27111-00-00
|
$40.56 | ||
|
Unavailable |
|||
|
#2
SHAFT, MAIN STAND
278-27112-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#3
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-35058-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
1A0-27311-00-33
|
$93.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-08034-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90507-25023-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER
278-27314-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
FOOTREST 1
2R8-27411-01-33
|
$36.99 | ||
|
Unavailable |
|||
|
#11
FOOTREST 2
2R8-27421-00-33
|
$27.99 | ||
|
Unavailable |
|||
|
#12
FOOTREST
3CK-27451-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#13
FOOTREST
1L9-27461-01-00
Superseded by 3N6-27461-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#14
COVER, FOOTREST
1A0-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-20195-00
Superseded by 90480-20543-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-20023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
90243-08006-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06042-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPEC''L SHAP (90209-080
90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#20
WASHER, SPEC''L SHAP
90209-12157-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, REAR FOOTREST
120-27433-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, CLEVIS
91701-06035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-20279-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
