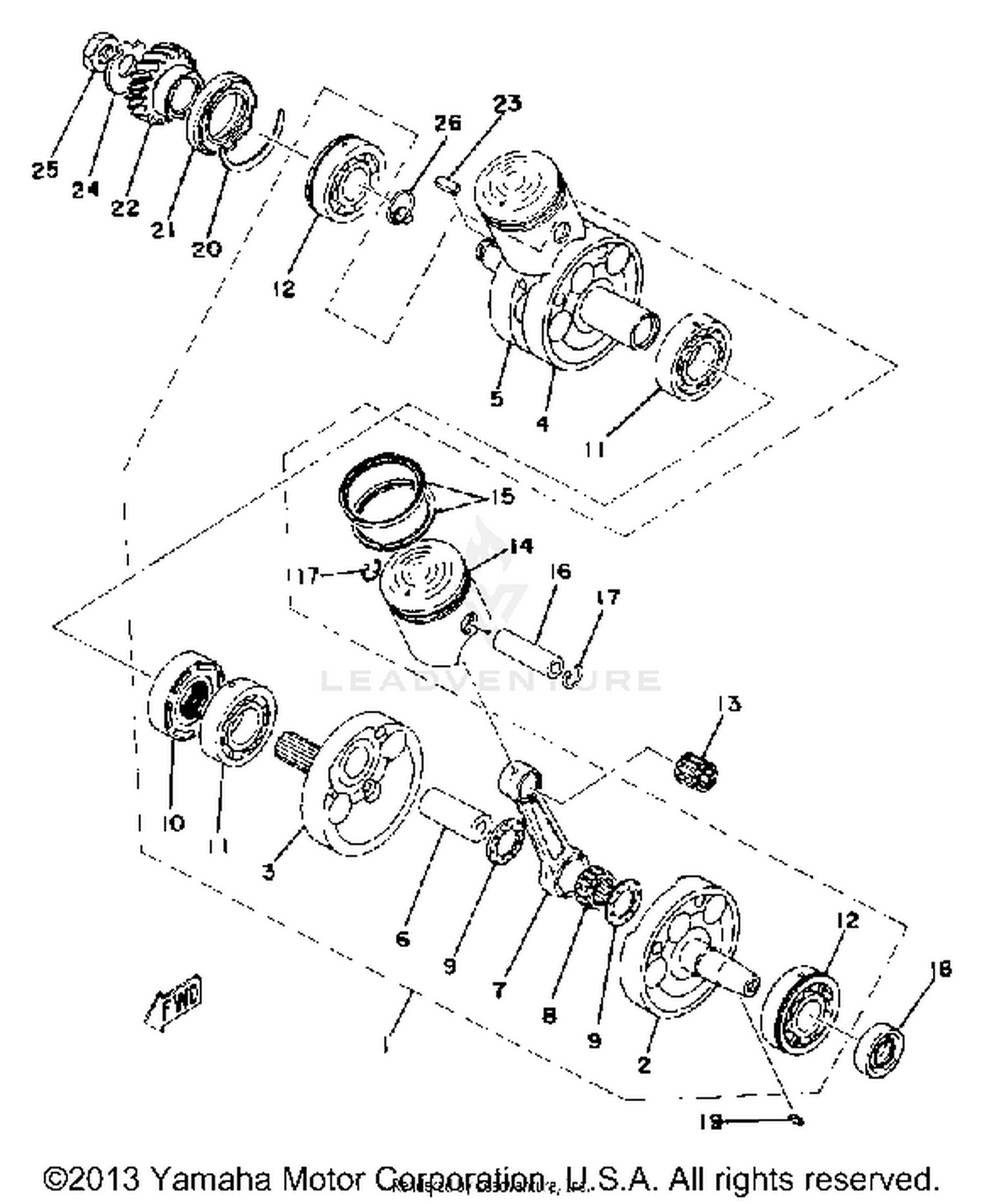

Crank - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
2V0-11400-00-00
|
$869.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
2V0-11412-00-00
|
$77.85 | ||
|
Unavailable |
|||
|
#3
CRANK 2
2V0-11422-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#4
CRANK 3
2V0-11432-00-00
|
$68.42 | ||
|
Unavailable |
|||
|
#5
CRANK 4
2V0-11442-00-00
|
$62.14 | ||
|
Unavailable |
|||
|
#6
PIN, CRANK 1
8G8-11681-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, CONNECTING
2T2-11651-00-00
|
$194.99 | ||
|
Unavailable |
|||
|
#8
BEARING, CYLINDER.
93310-42277-00
Superseded by 93310-422C8-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-22248-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, LABYRINTH 1
278-11515-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-20621-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-30549-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93310-216E1-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON STD
2V0-11631-01-97
|
$123.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
2V0-11635-01-00
|
$150.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
2V0-11636-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
2V0-11637-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
2V0-11638-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD
2V0-11630-00-00
|
$74.58 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
2V0-11630-10-00
|
$62.06 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
2V0-11630-20-00
|
$60.42 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD
2V0-11630-30-00
|
$96.32 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH
2V0-11630-40-00
|
$60.42 | ||
|
Unavailable |
|||
|
#15
PISTON RINGSET STD
1A1-11601-00-00
|
$51.36 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
1A1-11601-10-00
|
$94.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
1A1-11601-20-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD
1A1-11601-30-00
|
$90.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH
1A1-11601-40-00
|
$88.99 | ||
|
Unavailable |
|||
|
#16
PIN, PISTON
4L0-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93450-17025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, SW-TYPE
93103-20076-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
KEY, WOODRUFF
90280-04005-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
CIRCLIP 1
278-17424-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93103-40077-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, PRI DRIVE
2V0-16111-00-00
|
$60.96 | ||
|
Unavailable |
|||
|
#23
KEY, STRAIGHT
90282-07023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LOCK
90215-18131-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90170-16182-00
Superseded by 90170-16425-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, CRANKSHAFT
360-11526-00-00
|
$9.62 | ||
|
Unavailable |
|||
