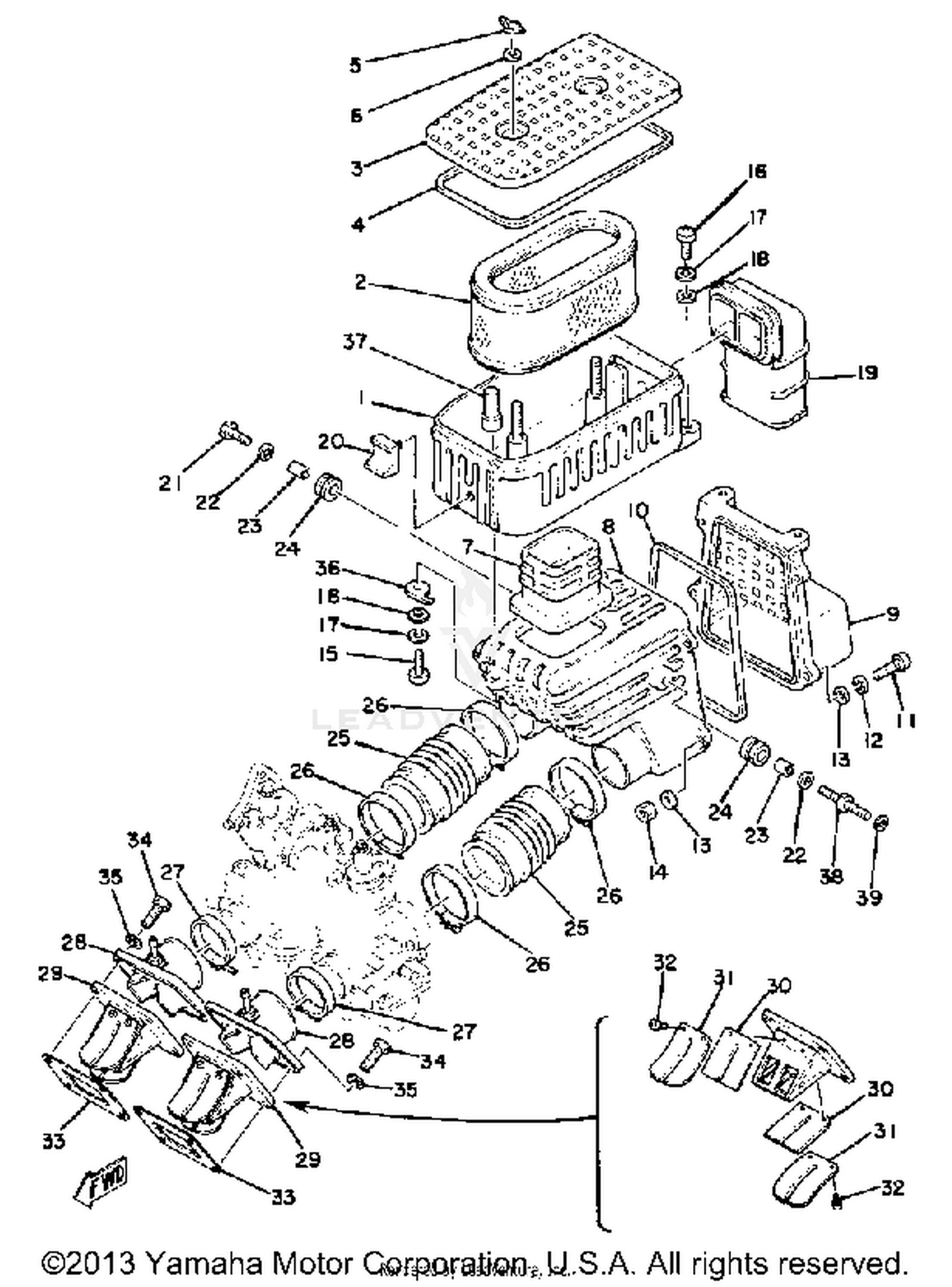

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
2V0-14411-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#2
ELEMENT, AIR CLNR
2V0-14451-00-00
|
$16.57 | ||
|
Unavailable |
|||
|
#3
CAP, CLEANER CASE 1
1A0-14412-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#4
SEAL
4L0-14457-01-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WING
90175-06008-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-05101-00
|
$1.54 | ||
|
Unavailable |
|||
|
#7
PIPE
2R9-14419-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
SILENCER, INTAKE 1
1A0-14431-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#9
SILENCER, INTAKE 2
1A0-14441-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#10
SEAL
4L0-14457-01-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUCT
3J7-14437-00-00
|
$4.80 | ||
|
Unavailable |
|||
|
#20
GROMMET
1A0-14435-01-00
|
$1.98 | ||
|
Unavailable |
|||
|
#21
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, AIR CLNR 1
2V0-14453-00-00
|
$11.66 | ||
|
Unavailable |
|||
|
#26
CLAMP, HOSE
90460-49058-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT, CARBURETOR
2V0-13565-00-00
|
$74.26 | ||
|
Unavailable |
|||
|
#29
REED VALVE ASSEMBLY
2V0-13610-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#30
REED, VALVE
2V0-13613-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#31
STOPPER, REED VALVE
345-13616-70-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PN/HD.W/WSHR
97602-03110-00
|
$0.99 | ||
|
Unavailable |
|||
|
#33
GASKET, VALVE SEAT
87A-13621-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-10033-00
|
$0.80 | ||
|
Unavailable |
|||
|
#37
FILTER
2V0-14827-00-00
|
$5.34 | ||
|
Unavailable |
|||
|
#38
BOLT
2V0-14428-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
