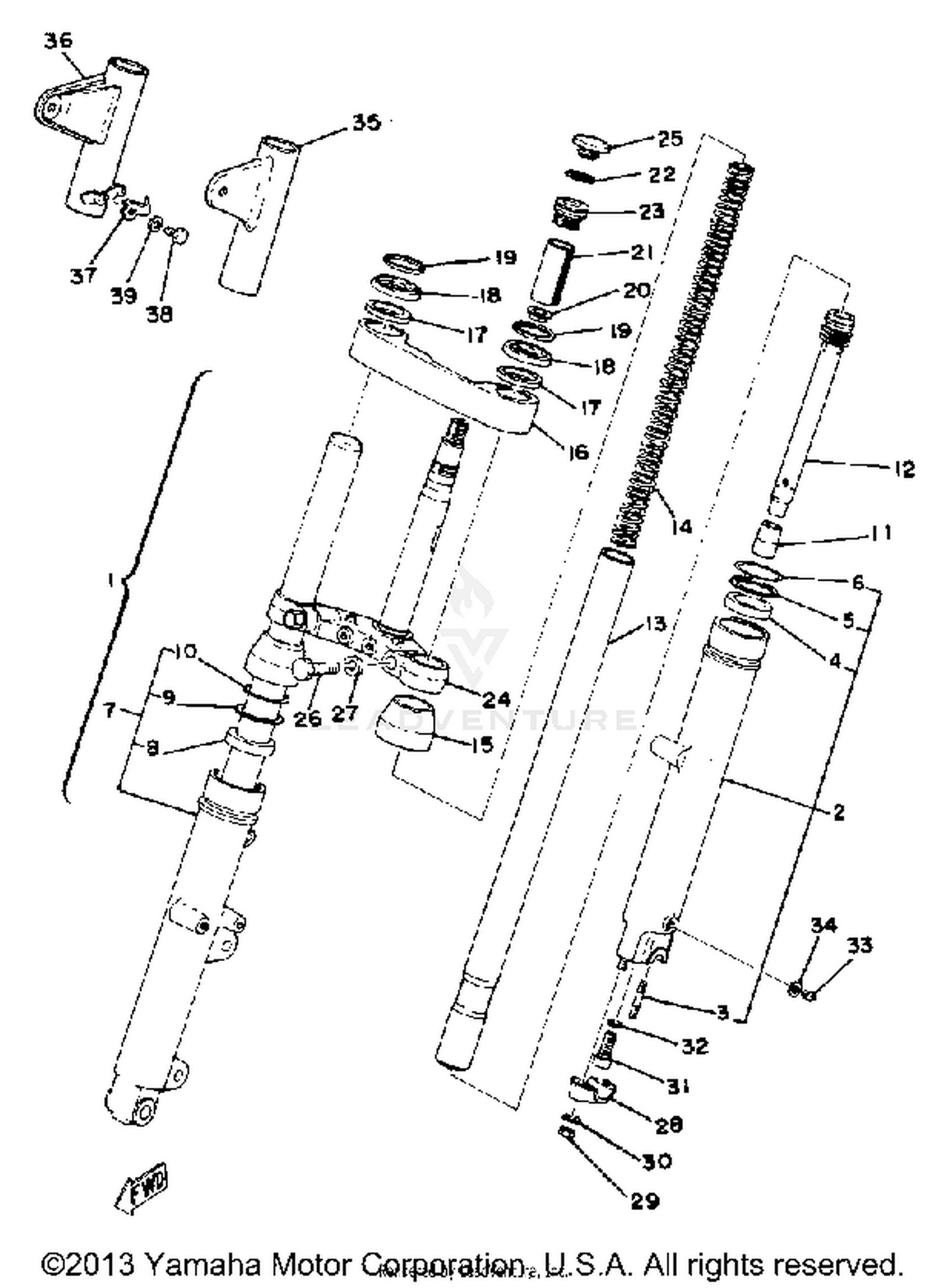

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
2V0-23101-00-00
|
$325.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
2R8-23126-00-38
|
$115.99 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08261-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
1T3-23145-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, OUTER 2
2R8-23136-00-38
|
$115.99 | ||
|
Unavailable |
|||
|
#8
OIL SEAL
1T3-23145-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
341-23146-50-00
|
$10.99 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
341-23156-50-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
1W1-23173-L0-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CYLINDER, FRTFRK
2R8-23170-00-00
|
$50.03 | ||
|
Unavailable |
|||
|
#13
INNER TUBE 1
2R8-23110-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
2J2-23141-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#15
SEAL, DUST
1T3-23144-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, OUTER 1
2R8-23122-00-00
|
$14.84 | ||
|
Unavailable |
|||
|
#17
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
GUIDE, COVER LOWER
2R8-23116-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#19
GUIDE, COVER UPPER
2R8-23115-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
SPACER
1U6-23118-M0-00
|
$3.36 | ||
|
Unavailable |
|||
|
#22
GASKET
240-23114-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, CAP (1U6-23111-M0)
1U6-23111-M1-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNDER BRACKET
2V0-23340-00-33
|
$122.99 | ||
|
Unavailable |
|||
|
#25
CAP, FRONT FORK
1U6-23168-M1-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT 1
306-23346-60-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#29
NUT, SELF-LOCKING
90185-08089-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, UPPER 1
2V0-23121-00-33
|
$89.99 | ||
|
Unavailable |
|||
|
#36
COVER, UPPER 2
2V0-23131-00-33
|
$89.99 | ||
|
Unavailable |
|||
|
#37
STAY, LIGHT GUARD
1A0-23164-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#38
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
