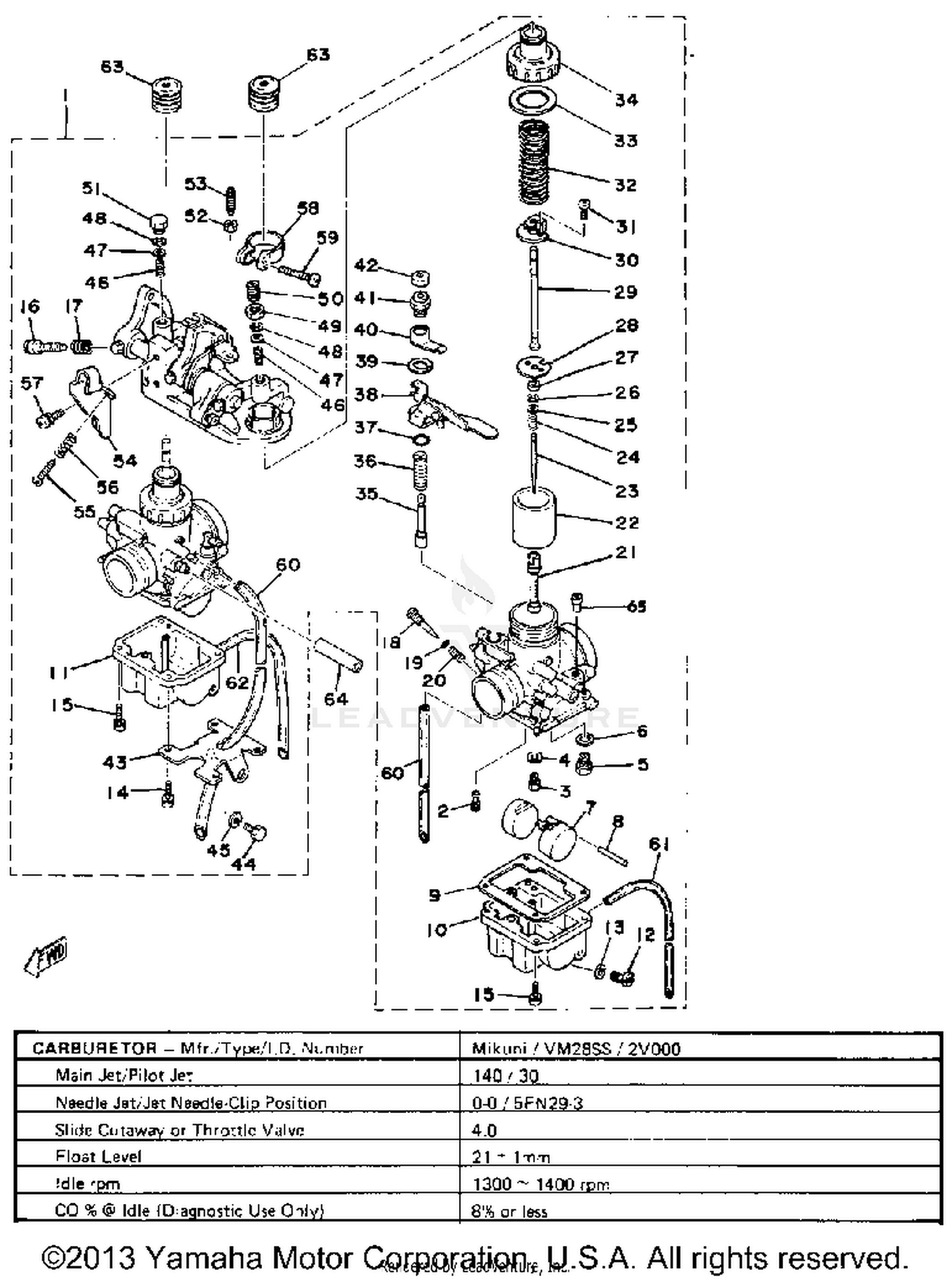

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY
2V0-14100-00-00
|
$270.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT #30 (#30)
193-14142-30-A0
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, MAIN (#140)
137-14143-28-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, MAIN JET
137-14153-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE VALVE SET
23L-14107-25-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, NEEDLE VALVE
214-14195-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLOAT
1A0-14185-00-00
|
$31.60 | ||
|
Unavailable |
|||
|
#8
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, FLOAT CHAMBER
360-14184-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY, FLOAT CHMBR 1
2V0-14181-08-00
|
$20.14 | ||
|
Unavailable |
|||
|
#11
BODY, FLOAT CHMBR 2
2V0-14183-00-00
|
$20.14 | ||
|
Unavailable |
|||
|
#12
PLUG, DRAIN
266-14191-00-00
Superseded by 68V-14191-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
266-14126-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, THROTTLE
2V0-14122-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#17
SPRING, THRTL STOP
2V0-14133-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#18
SCREW, PILOT
2N6-14923-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#19
O-RING
2H0-14147-00-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, PILOT ADJUSTING
2H0-14212-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
NOZZLE, MAIN
2V0-14141-30-00
|
$14.42 | ||
|
Unavailable |
|||
|
#22
VALVE, THROTTLE 1
2V0-14112-40-00
|
$44.32 | ||
|
Unavailable |
|||
|
#23
NEEDLE
644-14116-29-00
|
$18.99 | ||
|
Unavailable |
|||
|
#24
SPRING
2N6-14589-03-00
|
$3.16 | ||
|
Unavailable |
|||
|
#25
WASHER
2N6-14227-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#26
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING
2N6-14918-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#28
PLATE, NEEDLE FTNG
2V0-14946-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#29
ROD
2V0-14577-00-00
|
$10.60 | ||
|
Unavailable |
|||
|
#30
PLATE
2V0-14243-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-03010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, THROTTLE VALVE
2V0-14131-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
2V0-14126-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#34
TOP, MIXING CHAMBER
2V0-14158-00-00
|
$11.86 | ||
|
Unavailable |
|||
|
#35
PLUNGER, STARTER
1A0-14171-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#36
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#37
O-RING
93220-09001-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
LEVER, STARTER 1
2V0-14175-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#39
WASHER, STARTER LEVER
1A0-14179-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#40
PLATE, STARTER LEVER
170-14178-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
CAP, PLUNGER
500-14174-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#42
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#43
PLATE
2V0-14146-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#44
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING
2V0-14275-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#47
WASHER
2V0-14285-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#48
CLIP
2V0-14137-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#49
NUT
2V0-14594-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#50
SCREW
2V0-14567-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#51
SCREW, STOP
2V0-14565-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#52
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW
2V0-14216-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#54
BRACKET 1
2V0-14291-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#55
STOP SCREW SET
31A-1490K-00-00
Superseded by 36Y-1490K-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#56
SPRING, THRTL STOP
2V0-14333-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#57
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLIP
2V0-14159-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#59
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
HOSE
1A0-14197-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#61
HOSE (L700)
47X-14196-00-00
Superseded by 90445-05M07-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#62
HOSE (L700)
47X-14196-00-00
Superseded by 90445-05M07-00
|
$5.65 | ||
|
Unavailable |
|||
|
#63
CAP
2V0-14169-00-00
|
$22.72 | ||
|
Unavailable |
|||
|
#64
PIPE, STARTER CON
2V0-14988-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#65
CAP
895-14169-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
