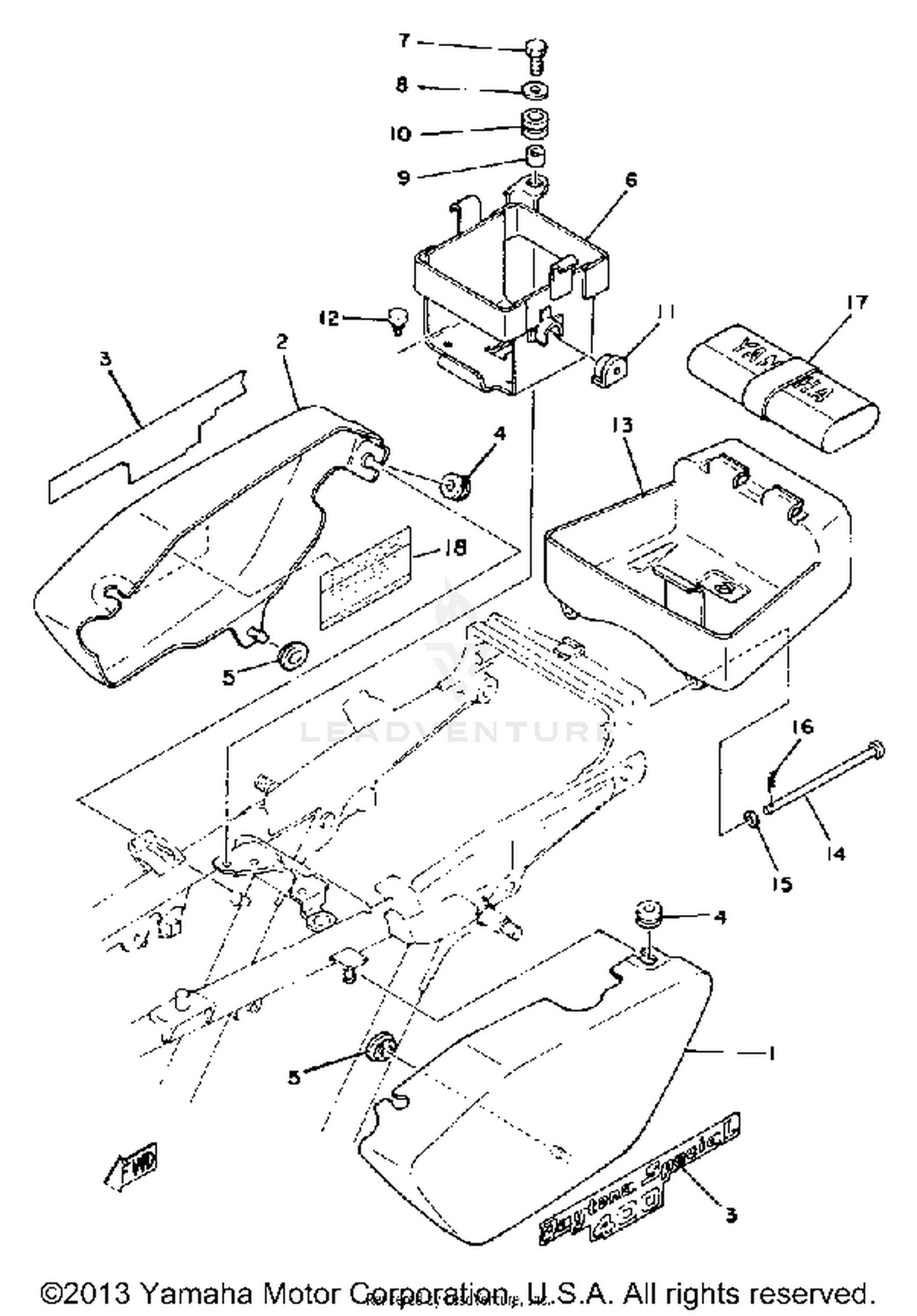

Side Cover - Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2V0-21711-00-Y9
|
$102.99 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
2V0-21721-00-Y9
|
$88.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 3
2V0-21783-00-00
|
$11.18 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-12053-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-01401-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOX, BATT.
2V0-21170-00-00
|
$31.56 | ||
|
Unavailable |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
1A0-21746-01-00
|
$6.68 | ||
|
Unavailable |
|||
|
#12
DAMPER
141-21717-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TOOL BOX
2V0-21107-00-00
|
$52.88 | ||
|
Unavailable |
|||
|
#14
PIN, CLEVIS
91701-05120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOOL KIT
1KT-W2810-00-00
Superseded by 1KT-W2810-01-00
|
$179.99 | ||
|
Unavailable |
|||
|
#18
PLATE, SPEC
2V0-21683-00-00
|
$2.97 | ||
|
Unavailable |
|||
