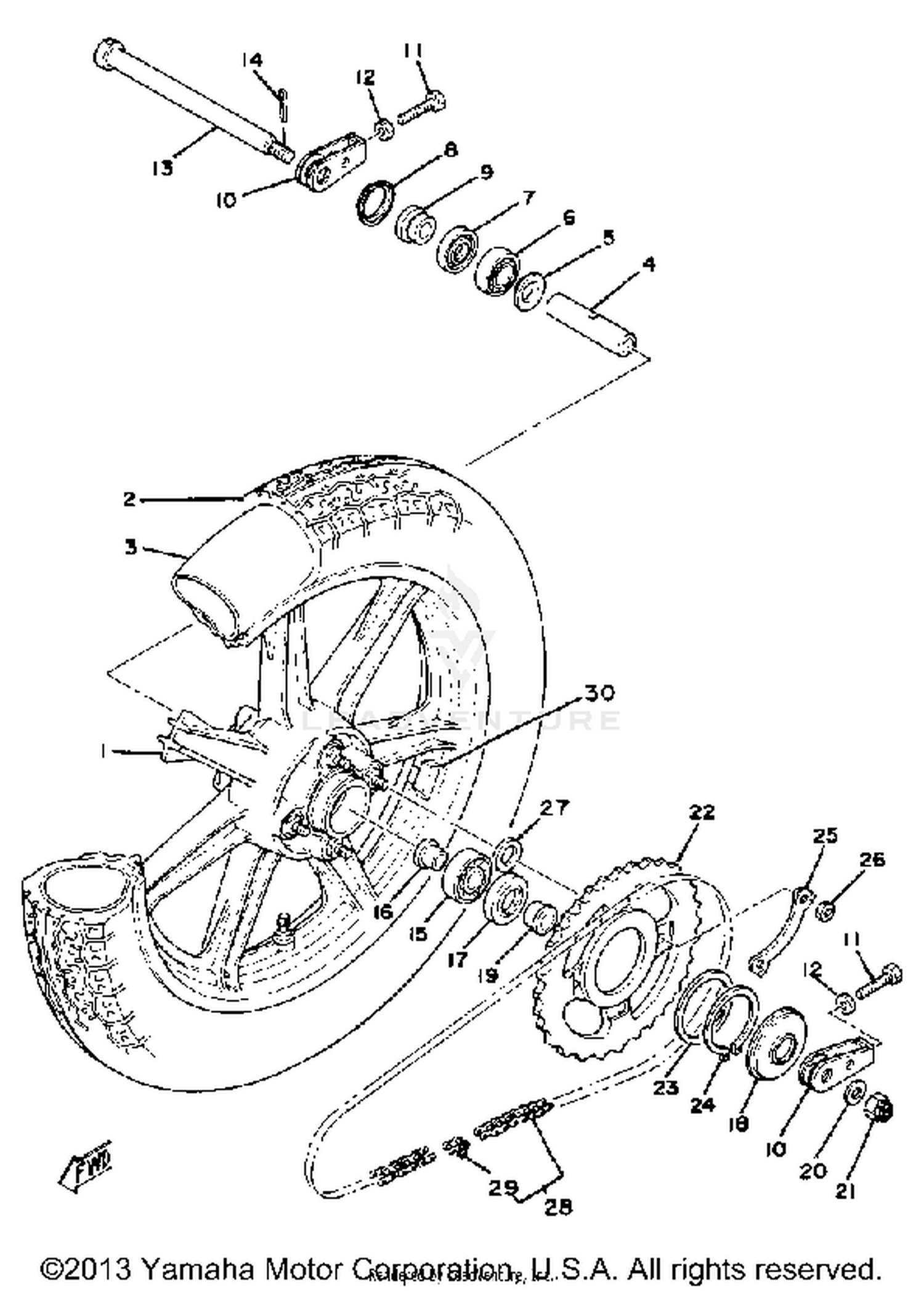

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
2A2-W2533-20-00
|
$383.99 | ||
|
Unavailable |
|||
|
#2
YOKO 350S18Y 987
94135-18380-00
|
$44.99 | ||
|
Unavailable |
|||
|
#3
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, BEARING
1J3-25317-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#5
FLANGE, SPACER
1A1-25115-00-00
Superseded by 146-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93102-28022-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HUB DUST
1J3-25118-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-17536-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
PULLER, CHAIN 2
168-25389-00-00
Superseded by 12R-25389-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE, WHEEL
1J3-25381-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20417-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, WHEEL
1A1-25377-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL, SO-TYPE
93104-27026-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, HUB DUST
1L9-25367-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-17551-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN
92990-14200-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPROCKET, DRIVN 37T
1J3-25437-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-66585-00
|
$5.49 | ||
|
Unavailable |
|||
|
#24
CIRCLIP, S-TYPE
93410-65040-00
|
$13.49 | ||
|
Unavailable |
|||
|
#25
WASHER
1J3-25412-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-20565-00
|
$2.95 | ||
|
Unavailable |
|||
|
#28
530 DS 96L
94580-10096-00
|
$109.99 | ||
|
Unavailable |
|||
|
#29
JOINT CHAIN
94685-30011-00
|
$7.78 | ||
|
Unavailable |
|||
|
#30
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Unavailable |
|||
