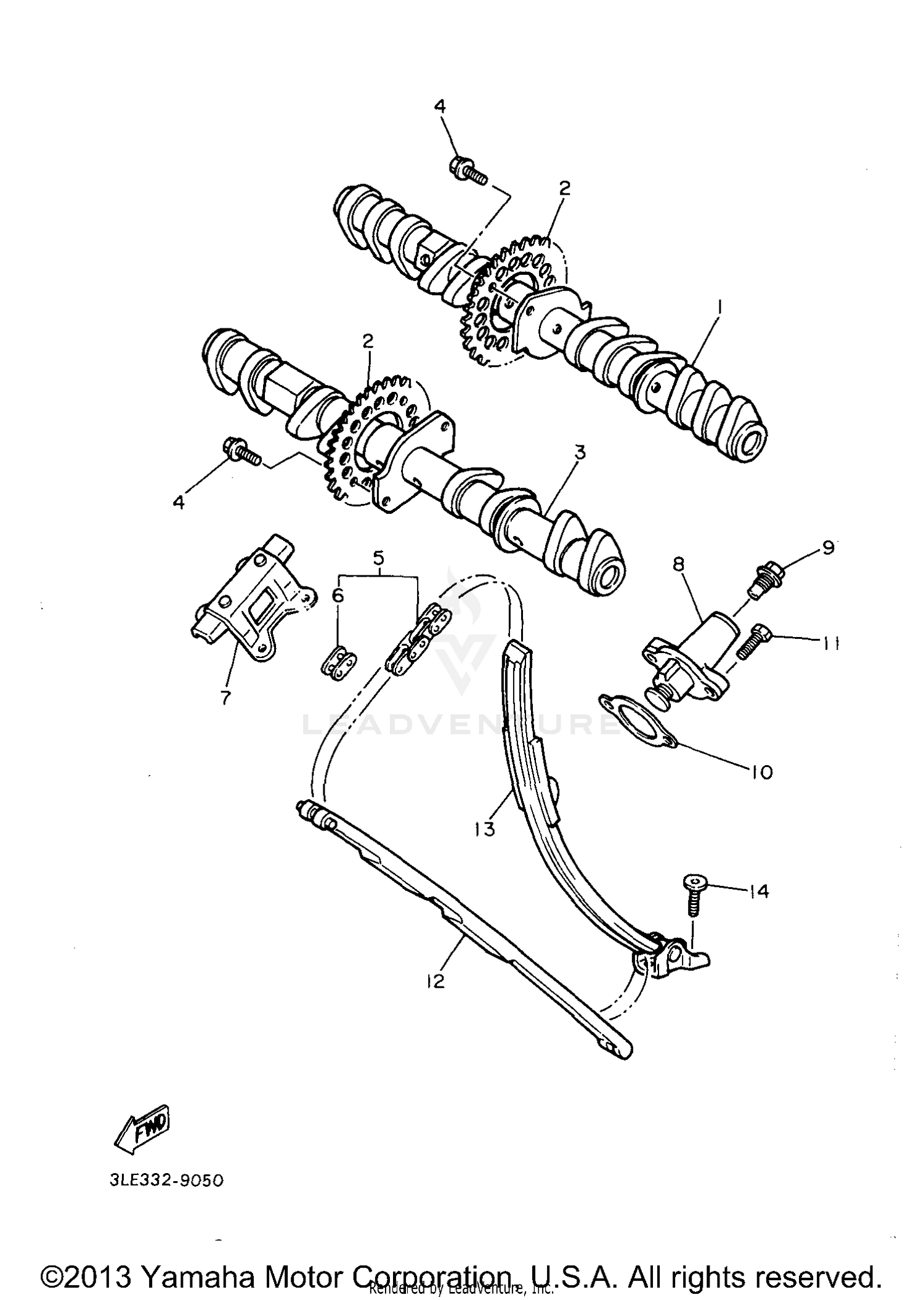

1997 Yamaha YZF 1000R CAMSHAFT CHAIN OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
4SV-12171-00-00
|
$372.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN
3GM-12176-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#3
CAMSHAFT 2
4SV-12181-00-00
|
$358.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-07342-00
Superseded by 90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN (DID219FS-108L)
9Y581-01107-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, JOINT
4SV-11498-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, STOPPER 2
2GH-12241-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER ASSY, CAM CHAIN
3GM-12210-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-112F1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, TENSIONER CASE
4BE-12213-00-00
Superseded by 4FM-12213-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-060A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, CHAIN 1
3GM-12251-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#13
DAMPER, CHAIN 2
3GM-12252-01-00
|
$89.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-065A8-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
