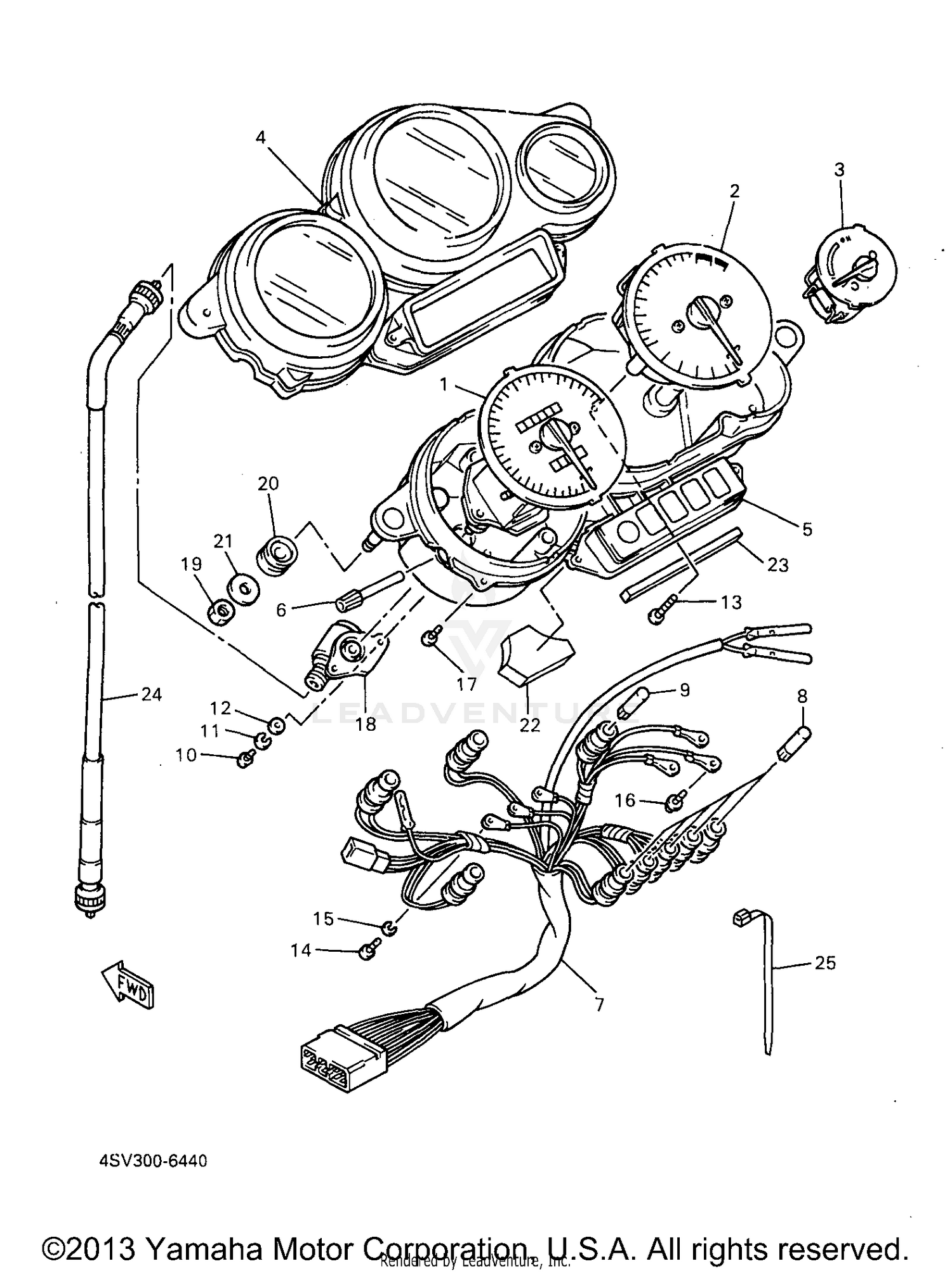

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY
4SV-83570-10-00
Superseded by 4SV-83570-30-00
|
$198.99 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASSEMBLY
4SV-83540-00-00
|
$343.73 | ||
|
Unavailable |
|||
|
#3
WATER TEMPERATURE ASSY
4SV-83590-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, METER
4FM-83559-00-00
|
$208.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, UNDER
4FM-8353H-40-00
|
$216.99 | ||
|
Unavailable |
|||
|
#6
KNOB, TRIP METER
4SV-83578-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET CORD ASSEMBLY
4FM-83509-80-00
|
$238.61 | ||
|
Unavailable |
|||
|
#8
BULB (12V-3.4W T10)
4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-1.7W)
3FV-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-04010-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
4NX-83546-00-00
|
$1.50 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98507-03010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, WITH WASHER
90159-03102-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPPING SCREW
90164-04006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SOCKET CORD ASSY
4FM-83520-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
4SV-83513-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
4SV-83523-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#23
DAMPER 2
4SV-83526-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#24
SPEEDOMETER CABLE ASSEMBLY
4FM-83550-02-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
