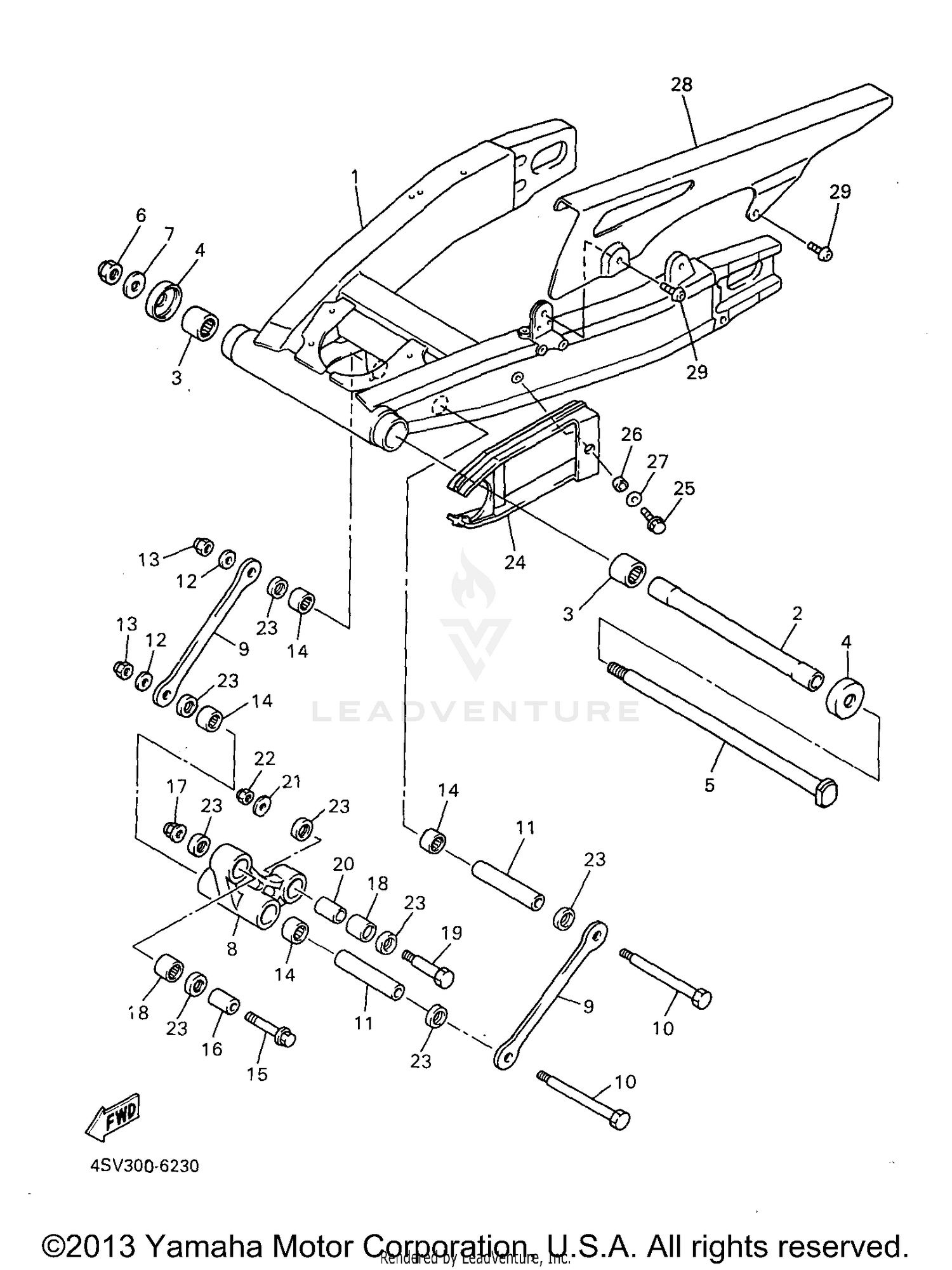

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
4SV-22110-00-00
|
$1,200.99 | ||
|
Unavailable |
|||
|
#2
BUSH
3FV-22184-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93315-42523-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 1
3FV-22128-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
3GM-22141-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-18264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, RELAY
4FM-2217A-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#9
ARM 1
3GM-2217M-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90101-10658-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93317-21746-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-10376-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-102R4-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93317-31771-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
NUT, U
95617-10100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, GUARD
4SV-22151-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-064R0-00
Superseded by 90201-06066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CASE, CHAIN
4SV-22311-00-00
|
$206.12 | ||
|
Unavailable |
|||
|
#29
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
