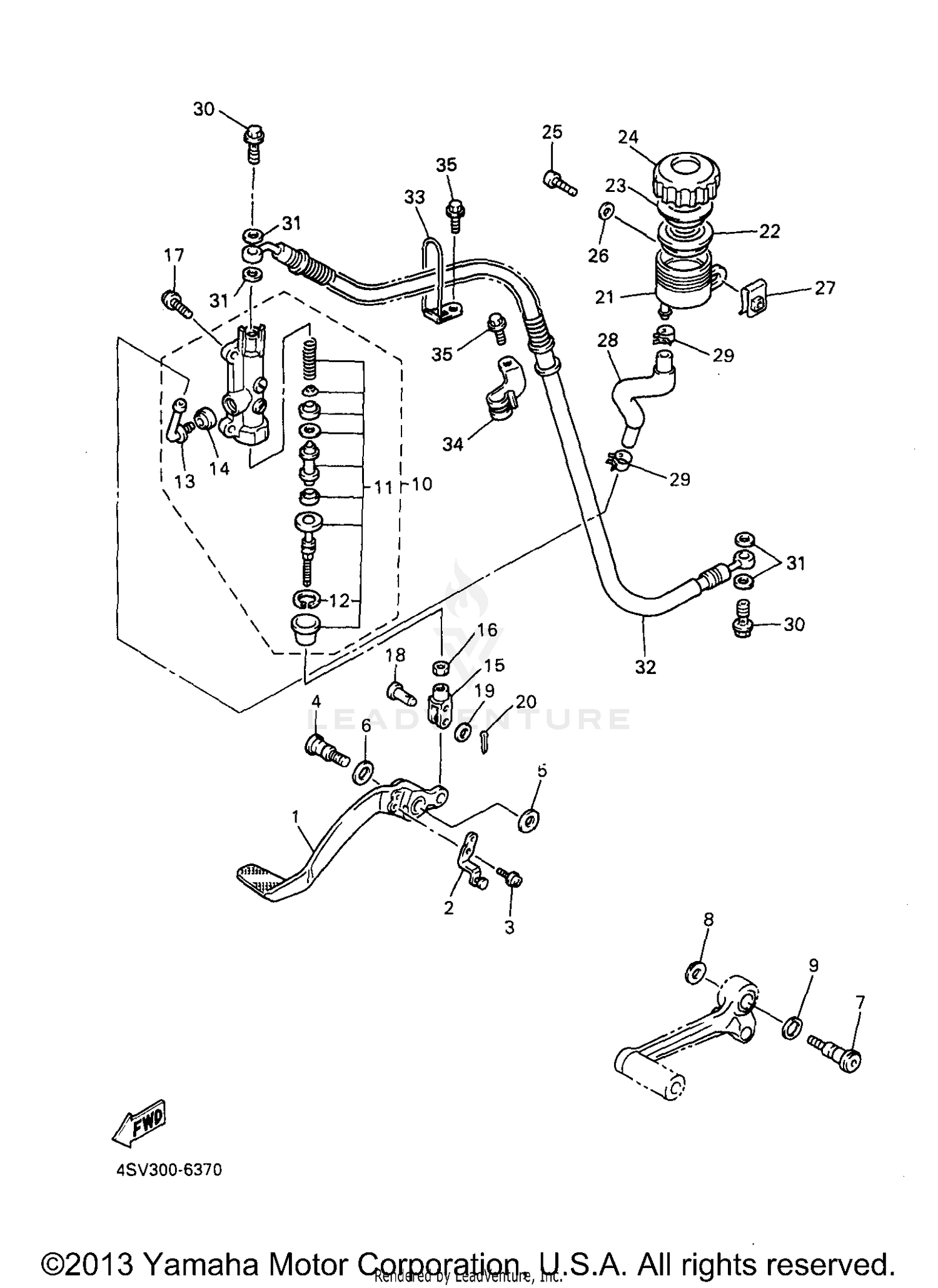

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4FM-27211-21-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
HOOK
4FM-27254-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
SCREW,PAN
90159-06045-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT
4SV-27261-00-00
Superseded by 21C-27261-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-14086-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
2YK-27434-01-00
Superseded by 4BP-27434-11-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, WAVE
90206-12074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
RR. MASTER CYLINDER ASSY.
4BH-2583V-00-00
|
$188.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
CYLINDER KIT, MASTER
4BH-W0042-50-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
3LN-2585G-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT
4FM-27222-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,PAN HEAD
98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, RESERVOIR
4FM-25895-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BRAKE
4SV-25874-00-00
|
$65.33 | ||
|
Unavailable |
|||
|
#33
HOLDER, BRAKE HOSE
4BH-25886-00-00
Superseded by 4BH-25886-02-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, BRAKE HOSE
4SV-25887-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
