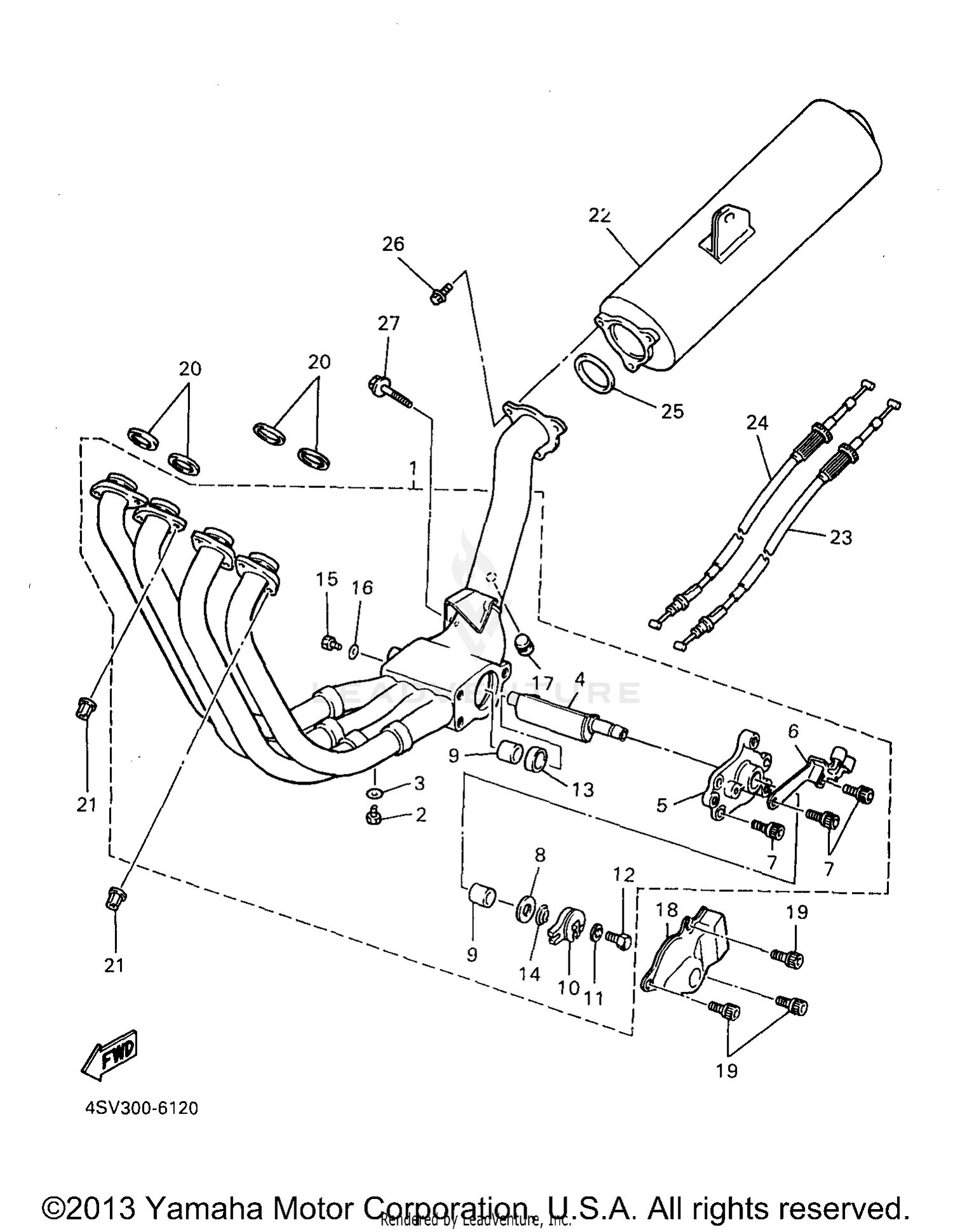

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
4SV-14610-00-00
|
$1,394.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEX.
97080-06008-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, SHAFT (VALVE)
4SV-14821-00-00
|
$385.99 | ||
|
Unavailable |
|||
|
#5
HOUSING
3GM-14811-00-00
Superseded by 5JJ-14811-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
2TK-14867-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06115-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-106M5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
4SV-14638-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULLEY
2TK-14865-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-050T4-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97080-05012-00
Superseded by 97095-05012-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-106U7-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, HOOK
3GM-14683-00-00
Superseded by 5PW-14683-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91380-04006-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
4FM-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, EXHAUST
4HD-14826-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
90119-06187-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
MUFFLER 1
4YW-14711-00-00
|
$912.99 | ||
|
Unavailable |
|||
|
#23
CABLE, PULLEY 1
4FM-1133E-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE, PULLEY 2
4FM-1133F-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, MUFFLER
4SV-14714-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95824-08020-00
Superseded by 95814-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95814-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
