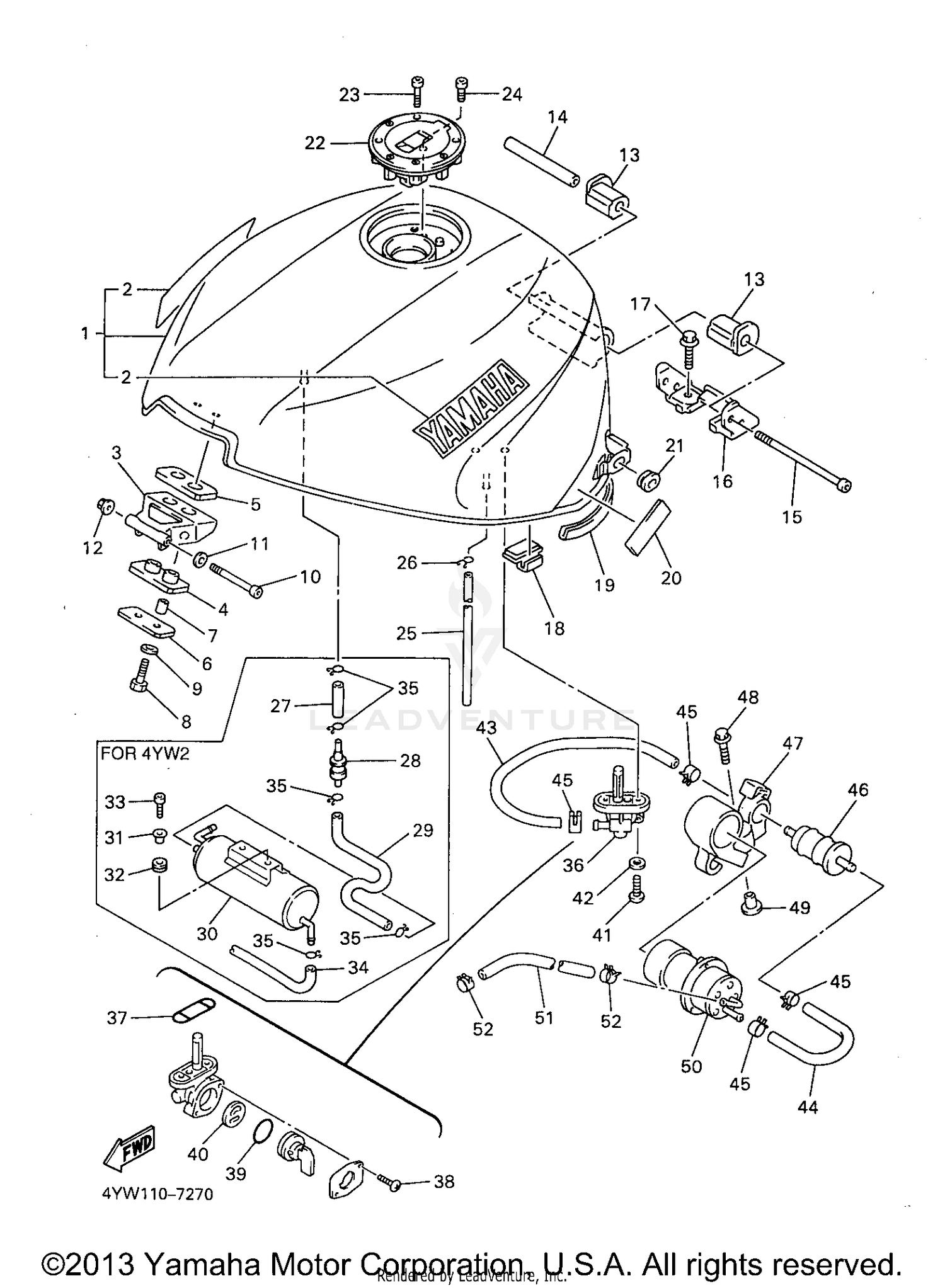

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4SV-24110-10-06
|
$1,077.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
4SV-24110-30-06
|
$1,459.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
4SV-24110-10-05
|
$1,228.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
4SV-24110-30-05
|
$1,427.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
4SV-2153A-30-00
Superseded by 4TV-2153A-30-00
|
$20.99 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
4SV-2153A-20-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, FUEL TANK 1
4SV-24191-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 3
2GH-24183-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
4SV-24181-00-00
Superseded by 4YR-24181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-061W9-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-06110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, TANK FITTING
4SV-21348-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06170-00
Superseded by 90119-06179-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 3
4SV-24183-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
MOLD, FUEL TANK
1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TAPE
3TU-28344-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSY
4FM-24602-00-00
Superseded by 4FM-24602-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
4HN-24602-00-00
Superseded by 4HM-24602-01-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#25
HOSE
90445-102G7-00
Superseded by 90445-11M78-00
|
$8.90 | ||
|
Unavailable |
|||
|
#26
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE (L120)
90445-11697-00
Superseded by 90445-113E8-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE 3
4SV-24313-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
CANISTER ASSY
3LK-24170-00-00
|
$335.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE (L)
90445-11182-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
FUEL COCK ASSY 1
4KM-24500-10-00
Superseded by 4KM-24500-20-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE, FUEL 1
4SV-24311-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#44
PIPE 2
4SV-24312-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
FILTER ASSY
1FK-24560-01-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BAND 1
4SV-24398-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#48
BOLT, WITH WASHER
90119-06097-00
Superseded by 90119-06172-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
FUEL PUMP COMP.
4SV-13907-00-00
Superseded by 4SV-13907-03-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOSE
90445-147J4-00
Superseded by 90445-146F9-00
|
$17.99 | ||
|
Unavailable |
|||
|
#52
CLIP
90467-13123-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
