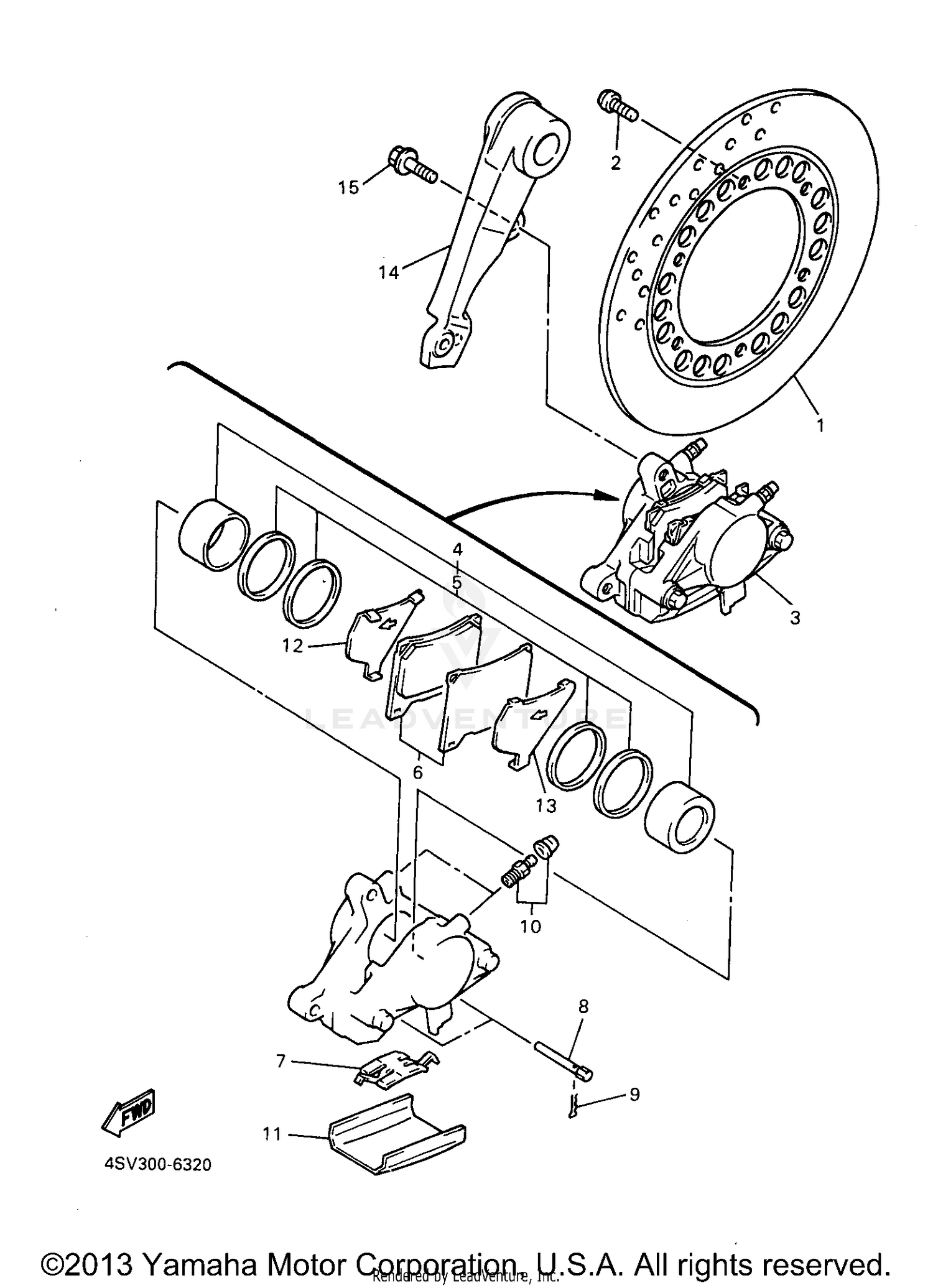

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
4SV-2582W-00-00
|
$275.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-083G4-00
Superseded by 90111-08057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY, REAR 2
4SV-2580W-00-00
|
$417.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
31A-W0057-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
31A-W0047-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT
4SV-W0045-50-00
Superseded by 3XF-W0045-50-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT, PAD
29L-25919-A0-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
3HE-25924-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, DUST
42H-25836-00-00
Superseded by 51J-25836-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
SHIM, CALIPER
1FK-25827-00-00
Superseded by 1FK-25827-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, CALIPER
1FK-25828-00-00
Superseded by 1FK-25828-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, CALIPER
4FM-25819-01-00
|
$279.22 | ||
|
Unavailable |
|||
|
#15
BOLT, WASHER BASED
90105-10725-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
