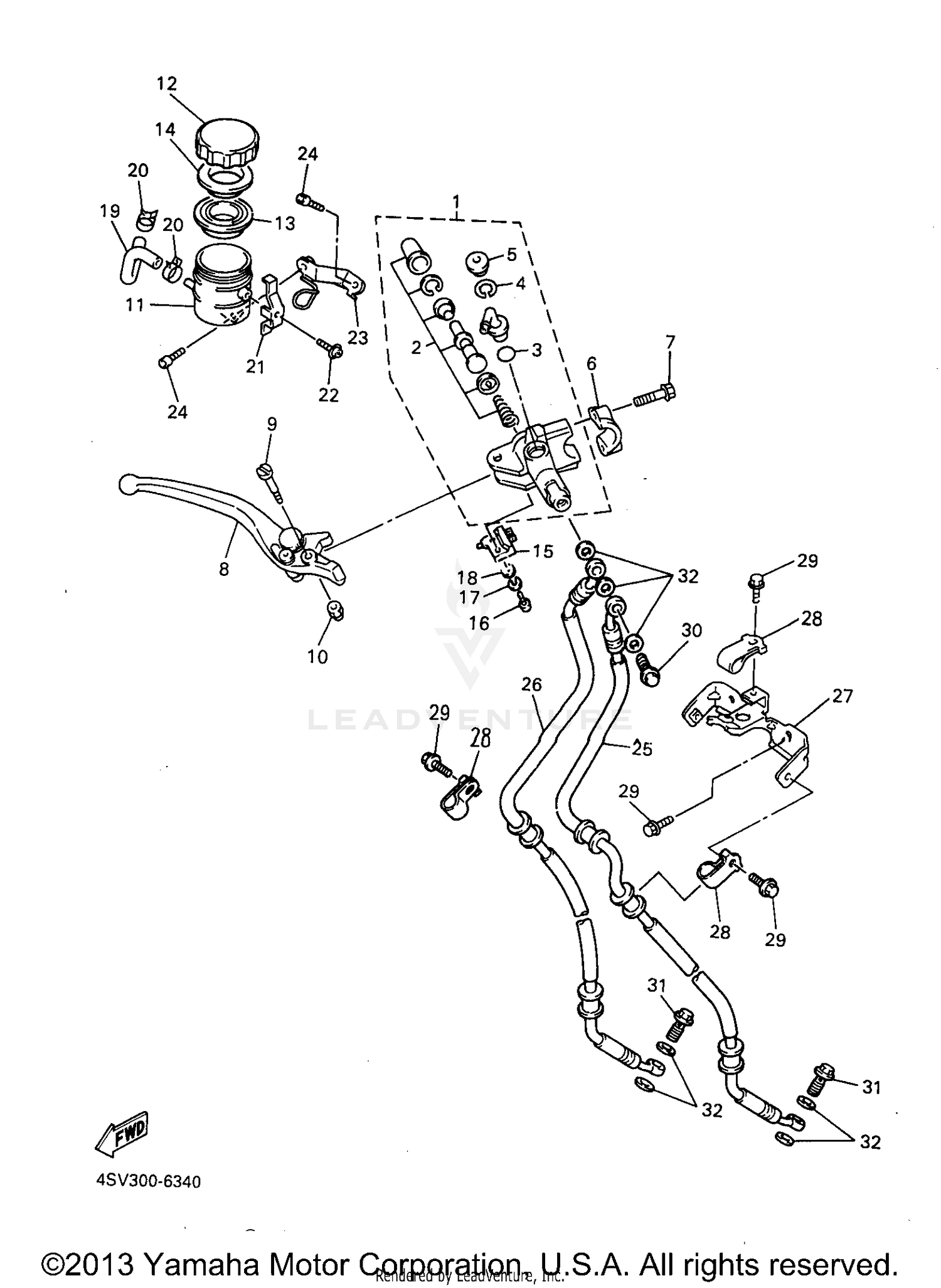

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
4SV-W2587-00-00
Superseded by 4SV-W2587-10-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4SV-W0041-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
3FV-2589A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-060A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER 2
4SV-83922-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, LEVER
3FV-2589F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVOIR
3FV-25894-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RESERVOIR
3GM-25852-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, DIAPHRAGM
3FV-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
2J2-25855-50-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PANHEAD
98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE
3GM-2585F-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, PIPE 1
3PA-24356-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER
3FV-2589G-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
3GM-2589H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY
4FM-26292-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90110-06210-00
|
$0.70 | ||
|
Unavailable |
|||
|
#25
HOSE, BRAKE 1
4SV-25872-00-00
Superseded by 4SV-25872-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#26
HOSE, BRAKE 2
4SV-25873-00-00
Superseded by 4SV-25873-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#27
BRACKET, HORN
4SV-23377-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#28
CLAMP
90461-10132-00
Superseded by 90461-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-10160-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
