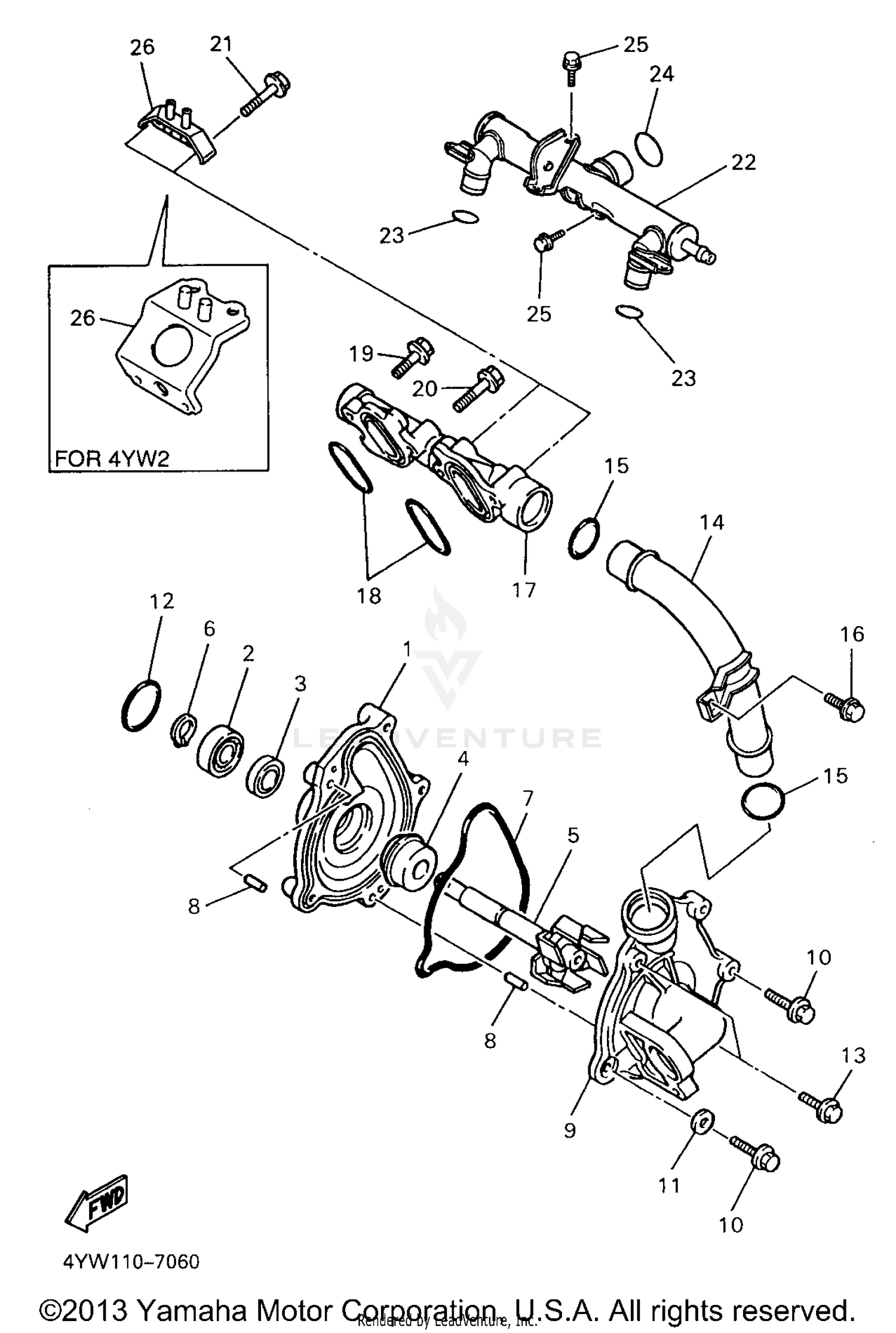

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
1UF-12421-09-00
|
$171.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-00-00
Superseded by 11H-12438-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSEMBLY
1UF-12450-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1AE-12439-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
3GM-12422-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-060A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-33133-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06798-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 1
1AE-12481-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-23787-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT 1
3FV-12469-00-00
|
$529.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-30694-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (95027-06040-00)
90105-06792-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 2
4SV-12482-00-00
|
$180.99 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-23787-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY
3LK-14413-00-00
|
$48.47 | ||
|
Unavailable |
|||
|
#
STAY
2GH-14413-00-00
|
$54.99 | ||
|
Unavailable |
|||
