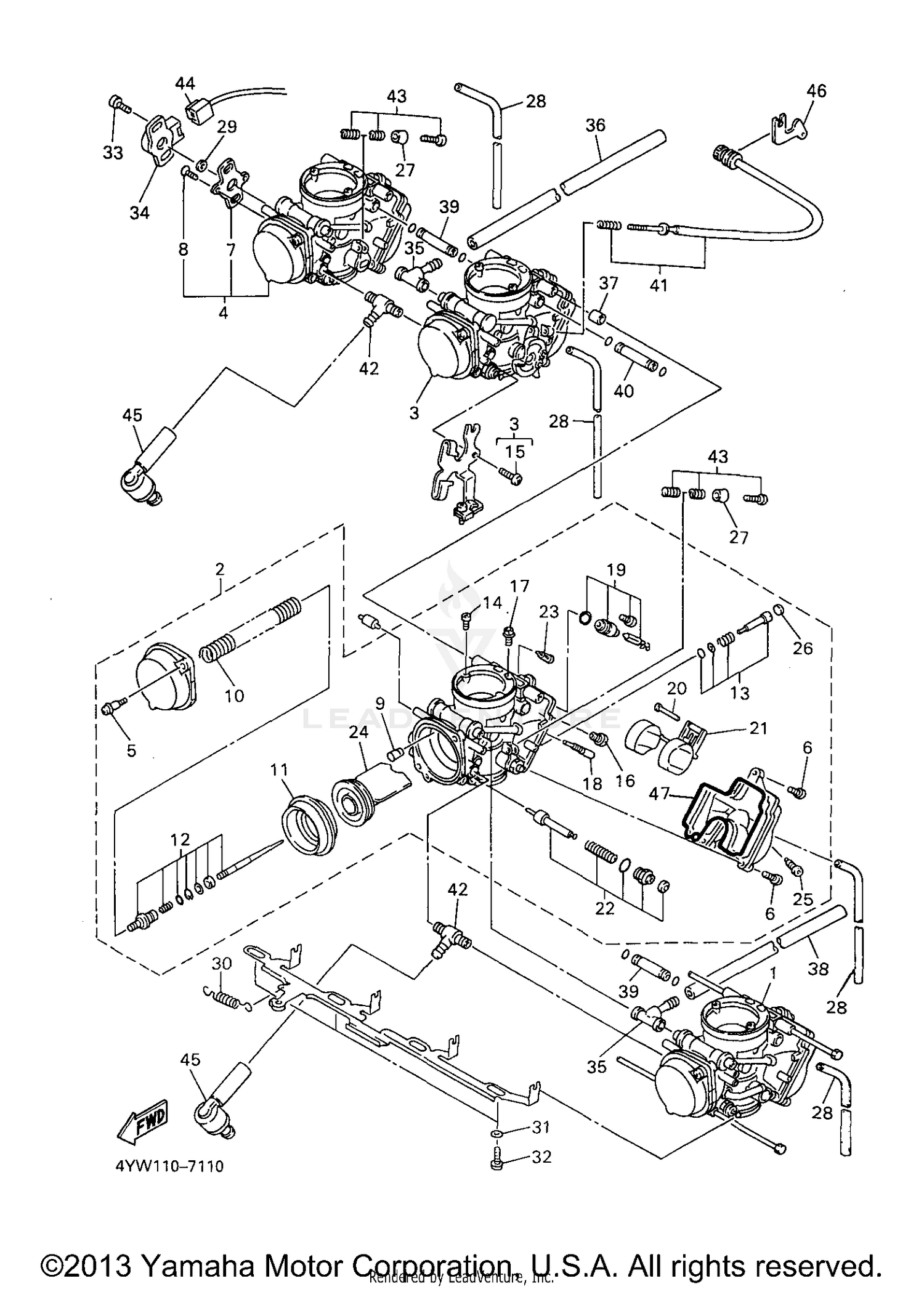

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4YW-14901-00-00
|
$543.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
4YW-14901-10-00
|
$543.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 2
4YW-14902-10-00
|
$543.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 2
4YW-14902-00-00
|
$621.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 3
4YW-14903-10-00
|
$728.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 3
4YW-14903-00-00
|
$728.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 4
4YW-14904-00-00
|
$728.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
4YW-14904-10-00
|
$580.99 | ||
|
Unavailable |
|||
|
#5
SCREW
4KM-14216-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98517-05012-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
4KG-14995-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, FLAT HEAD
98707-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
4SV-14968-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#10
SPRING, DIAPHRAGM
4SV-14933-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
4SV-24411-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE SET
4YW-1490J-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#13
PILOT SCREW SET
4SV-14105-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98507-04014-00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, MAIN (#127.5)
3G2-1423A-76-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#125)
3G2-14231-25-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (#122.5)
8CC-1423A-75-00
|
$5.90 | ||
|
Unavailable |
|||
|
#18
JET, PILOT (#17.5)
4KM-14142-17-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NEEDLE VALVE SET
4SV-14107-15-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, FLOAT
620-14186-00-00
|
$3.15 | ||
|
Unavailable |
|||
|
#21
FLOAT
4SV-14985-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER SET
4SV-1410A-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NET, FILTER
1KT-14994-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE, THROTTLE 1
4SV-14112-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, DRAIN
4KP-14191-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
3F9-14118-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER
4SV-14261-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#28
PIPE
3LK-14987-00-00
Superseded by 3JE-14197-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
4KG-14285-00-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
4SV-14935-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PACKING
4NK-14327-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
4SV-24453-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
4KM-24453-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
THROTTLE POSITION SENSOR ASSY
4SV-85885-00-00
Superseded by 4HD-85885-00-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE
4SV-14987-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#36
HOSE
4SV-14987-20-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE
4SV-14996-30-00
|
$3.05 | ||
|
Unavailable |
|||
|
#38
HOSE
4YW-14987-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HOSE
4SV-14987-30-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE
4SV-14996-40-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE
4SV-14996-50-00
|
$14.49 | ||
|
Unavailable |
|||
|
#41
THROTTLE SCREW SET
4SV-14103-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#42
HOSE
4SV-14987-10-00
|
$11.99 | ||
|
Unavailable |
|||
|
#43
STOP SCREW SET
3EN-1490K-00-00
Superseded by 4KM-1490K-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
CONNECTOR
4HD-14188-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#45
PIPE
4SV-14197-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAY
4FN-14413-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#47
O-RING
4XV-14562-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
