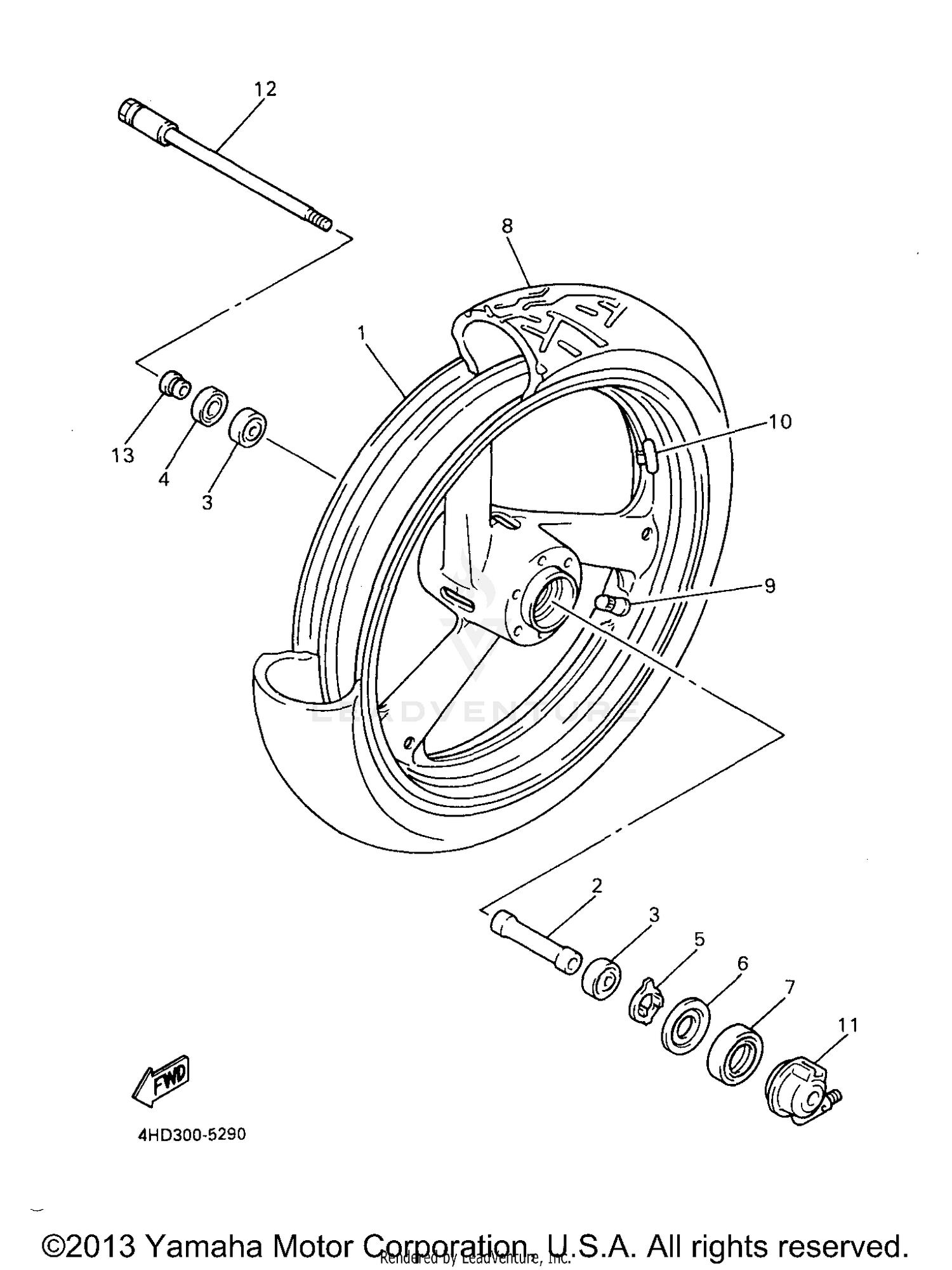

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, FRONT
4SV-25168-00-7B
|
$689.51 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
90387-2200S-00
Superseded by 5EA-25117-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00420-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-28021-00
Superseded by 93106-28043-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, METER
4FM-25149-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93105-45017-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE (120/70 ZR17 D204F)
94112-1709J-00
|
$302.99 | ||
|
Unavailable |
|||
|
#
TIRE (120/70 ZR17 B50F)
94112-1708X-00
|
$314.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR UNIT ASSEMBLY
4FM-25190-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AXLE, WHEEL
4FM-25181-01-00
Superseded by 4FM-25181-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-2200T-00
Superseded by 90387-22016-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
