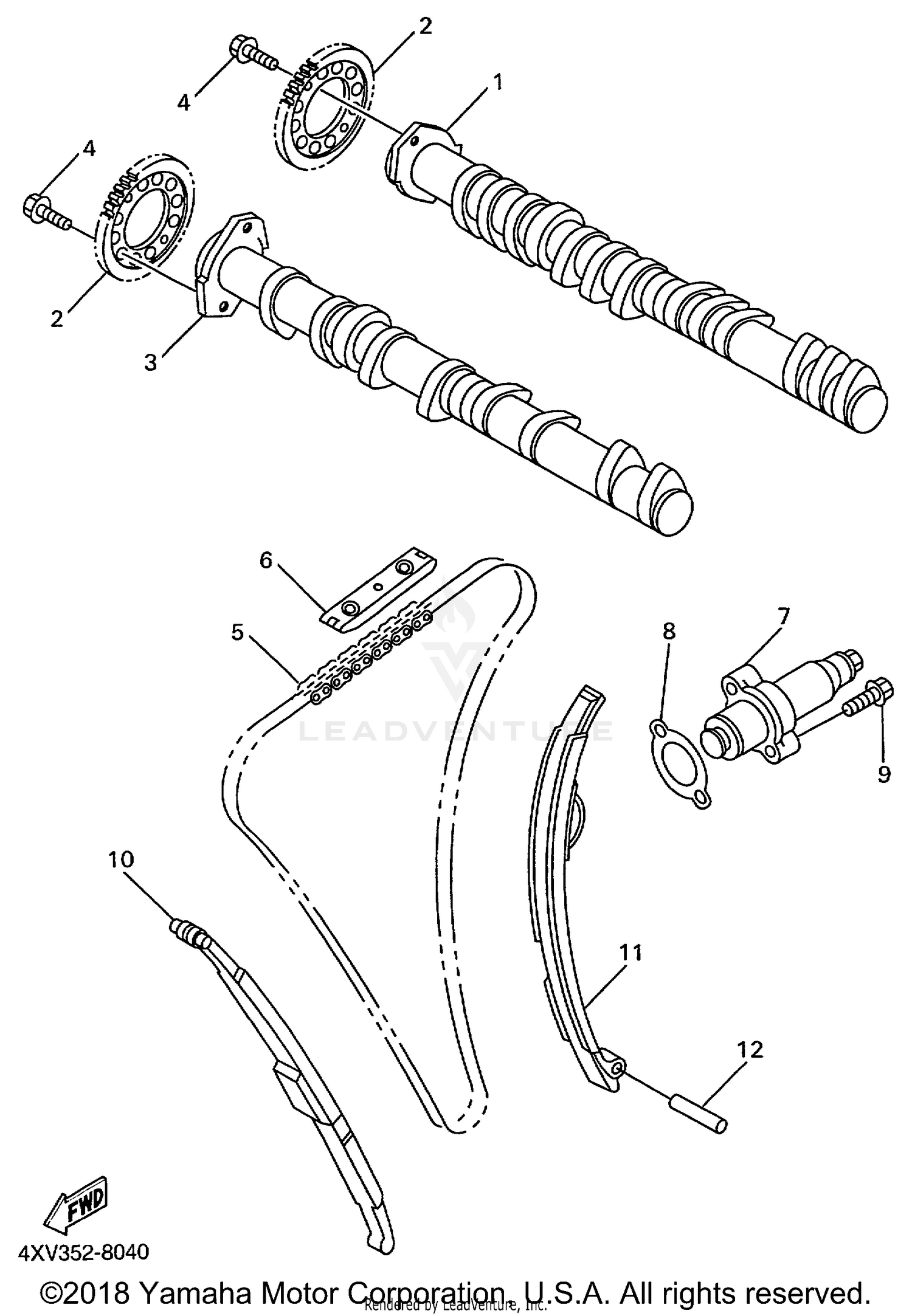

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
4XV-12171-00-00
|
$372.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN
4XV-12176-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMSHAFT 2
4XV-12181-00-00
|
$382.49 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-07342-00
Superseded by 90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN
94591-49130-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TENSIONER ASSY, CAM CHAIN
4XV-12210-00-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 1
4XV-12251-00-00
Superseded by 4XV-12251-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#11
DAMPER, CHAIN 2
4XV-12252-00-00
Superseded by 4XV-12252-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL
93607-44190-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
