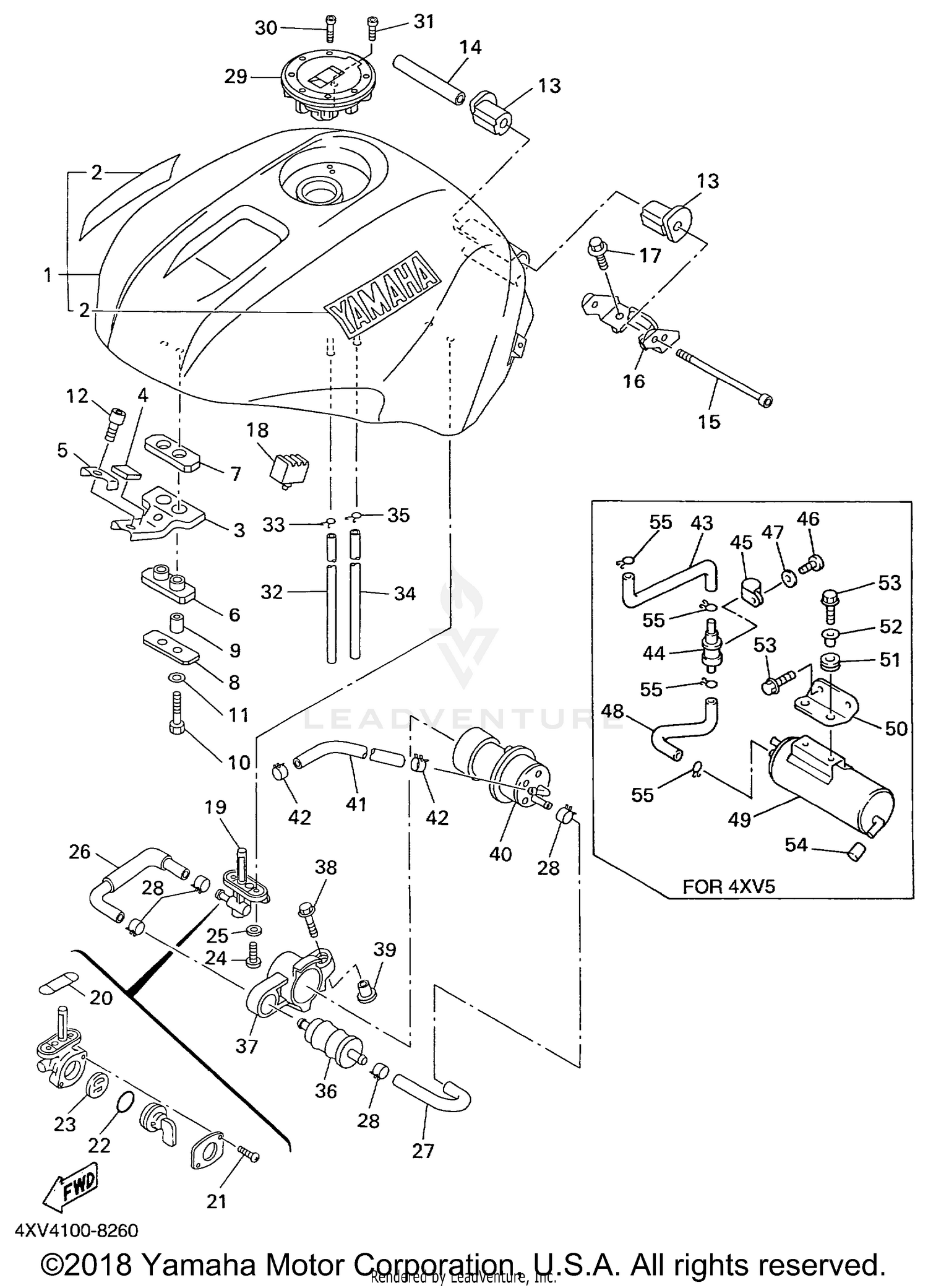

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4XV-24110-30-01
Superseded by 4XV-Y2410-31-02
|
$1,272.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
4XV-24110-30-02
Superseded by 4XV-Y2410-31-03
|
$1,272.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
4TV-2153A-10-00
|
$19.49 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
4TV-2153A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL TANK 1
4XV-24191-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#4
DAMPER 5
1AE-2837J-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
4XV-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
2GH-24183-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
2GH-24186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06299-00
Superseded by 90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
4YR-24181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-061W9-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET HEAD
91317-06110-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKT, TANK FITTING
4XV-21348-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 3
4XV-24183-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUEL COCK ASSY 1
4KM-24500-10-00
Superseded by 4KM-24500-20-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
4X8-24512-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, FUEL 1
4XV-24311-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#27
PIPE 2
4XV-24312-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-12124-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP ASSY
4HN-24602-00-00
Superseded by 4HM-24602-01-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.50 | ||
|
Unavailable |
|||
|
#32
PIPE 5
90445-103E9-00
Superseded by 1JK-24315-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE 5
90445-103E9-00
Superseded by 1JK-24315-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Unavailable |
|||
|
#36
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND 1
4XV-24398-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#38
BOLT, WITH WASHER
90119-06096-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-062L2-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUEL PUMP COMP.
4SV-13907-00-00
Superseded by 4SV-13907-03-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L200)
90445-142K2-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-13123-00
Superseded by 90467-13133-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE 3
4XV-24313-00-00
Superseded by 4XV-24313-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#44
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE 4
4XV-24314-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#49
CANISTER ASSY
4XV-24170-00-00
|
$539.28 | ||
|
Unavailable |
|||
|
#50
BRACKET, CANISTOR
4XV-2419F-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#51
GROMMET
90480-13163-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
COLLAR
90387-062L2-00
|
$6.99 | ||
|
Unavailable |
|||
|
#53
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Unavailable |
|||
