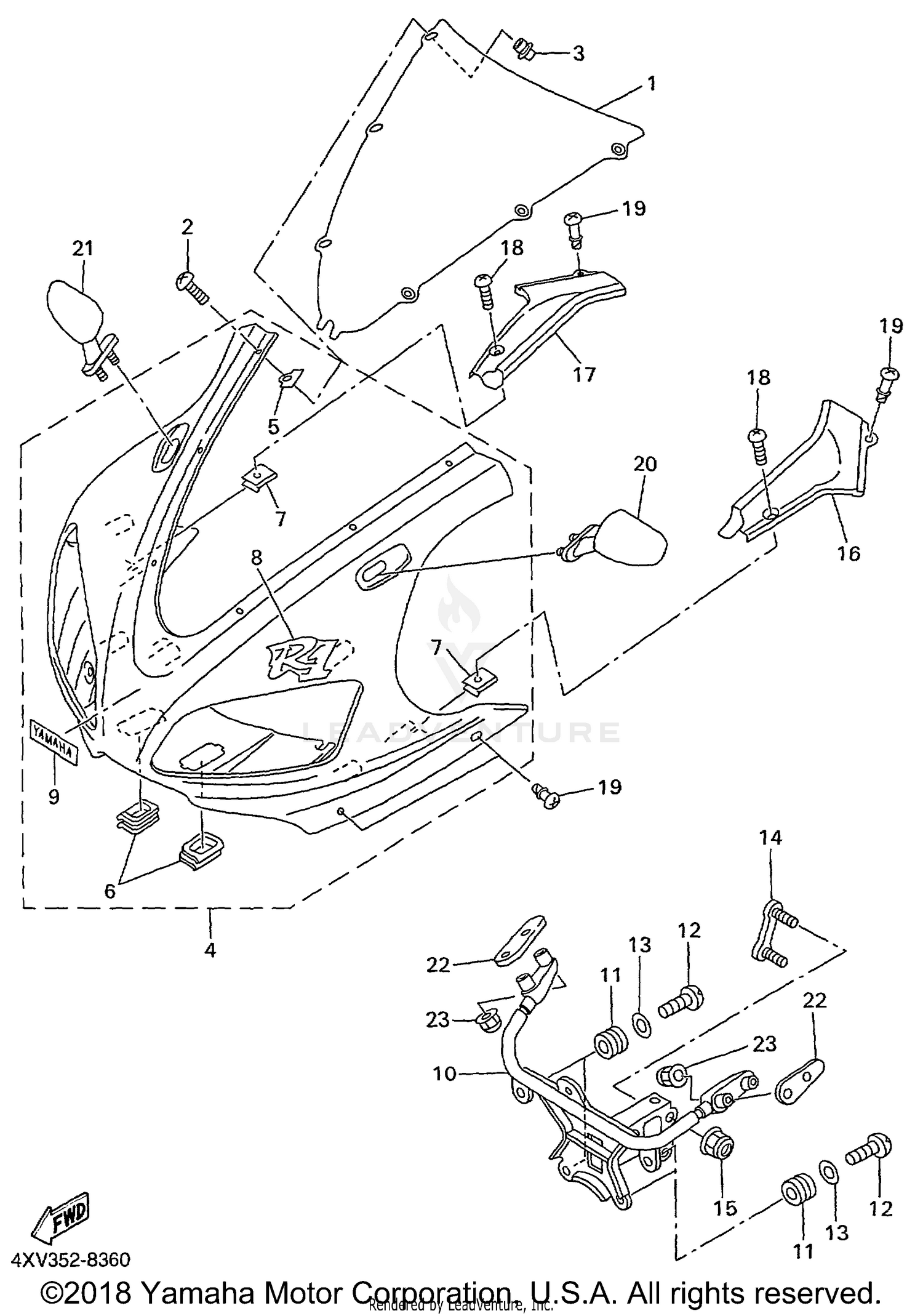

1998 Yamaha YZF R1 COWLING 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
4XV-28381-10-00
Superseded by 4XV-28381-11-00
|
$191.99 | ||
|
Unavailable |
|||
|
#2
SCREW, ROUND HEAD
90150-05023-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-05523-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, FRONT UPPER 1
4XV-Y283G-00-0X
|
$802.99 | ||
|
Unavailable |
|||
|
#4
BODY, FRONT UPPER 1
4XV-Y283G-10-1X
|
$715.01 | ||
|
Unavailable |
|||
|
#5
PROTECTOR 2
4FM-2834W-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
4XV-28349-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
NUT, SPRING
90183-05074-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM
4XV-28315-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
EMBLEM
4XV-28315-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
EMBLEM, YAMAHA
99231-00100-00
Superseded by 99241-00100-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY 1
4XV-28356-00-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
4XV-83513-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-05032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
4XV-28336-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PANEL, CONSOLE 1
4XV-2837L-00-00
|
$147.89 | ||
|
Unavailable |
|||
|
#17
PANEL, CONSOLE 2
4XV-2837M-00-00
|
$147.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEAD
3XV-28386-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR VIEW MIRROR ASSY(LEFT)
4YR-26280-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR VIEW MIRROR ASSY(RIGHT)
4YR-26290-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, MIRROR FITTING 1
4SV-26298-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
