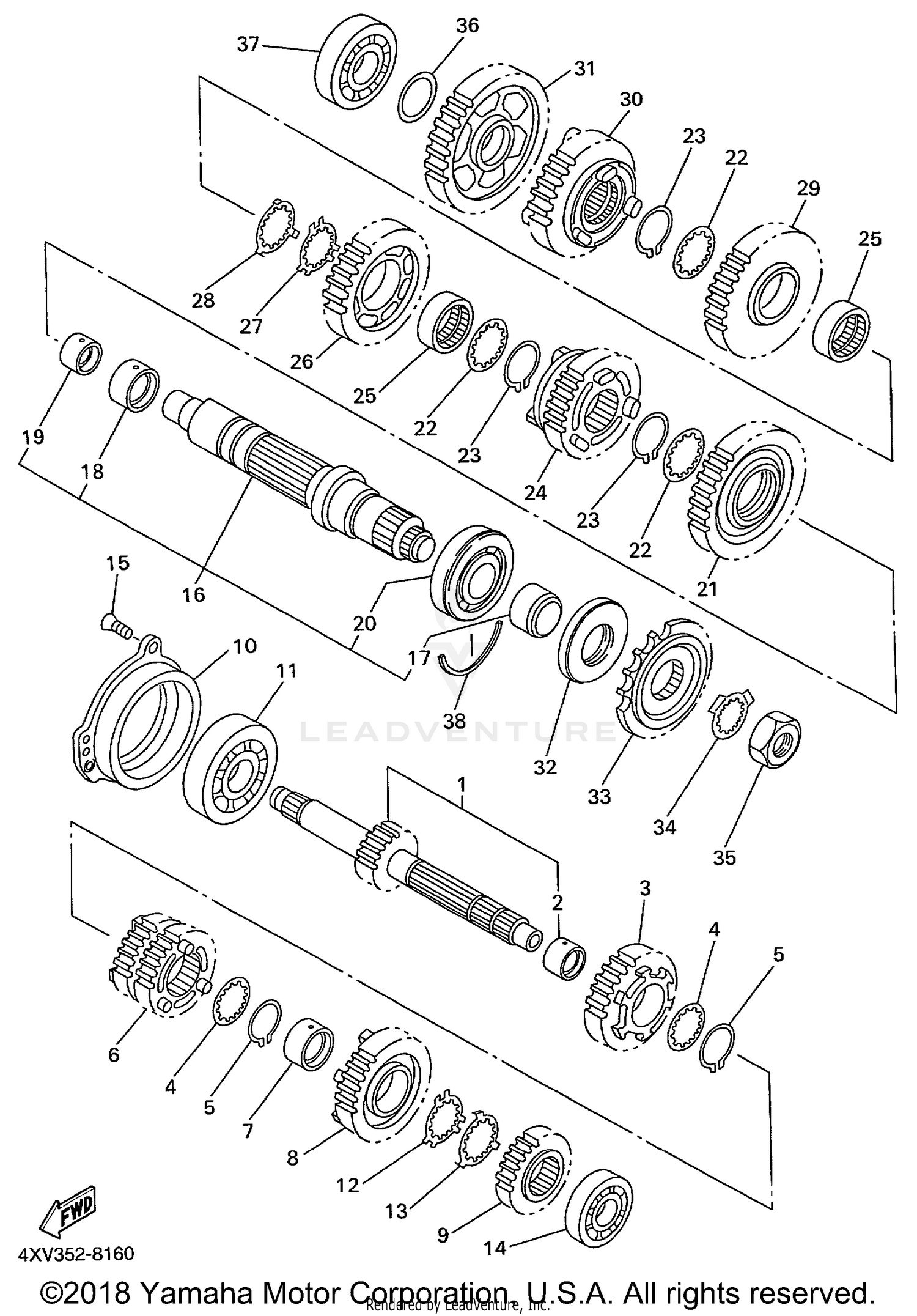

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSEMBLY
4XV-W1741-00-00
|
$218.30 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-2811B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#3
GEAR, 5TH PINION
4XV-17151-00-00
|
$88.55 | ||
|
Unavailable |
|||
|
#4
WASHER
90209-25342-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-28062-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
4XV-17131-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-2810U-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (26T)
4XV-17161-00-00
Superseded by 5JJ-17161-00-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION
4XV-17121-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#10
HOUSING, BEARING 1
4XV-15163-00-00
Superseded by 5JJ-15163-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-37807-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-25349-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-25350-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-27208-00
Superseded by 93306-27209-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06286-00
Superseded by 90149-06126-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVE AXLE ASSEMBLY
4XV-W1742-00-00
|
$237.99 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-3011F-00
|
$25.99 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-3311C-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-2511A-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-20705-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 2ND WHEEL (35T)
4XV-17221-00-00
Superseded by 5JJ-17221-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-30344-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93440-32063-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 6TH WHEEL (29T)
4XV-17261-00-00
Superseded by 5PW-17261-00-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-3310V-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH WHEEL
4XV-17241-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#27
WASHER
90209-30345-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
90209-30343-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 3RD WHEEL
4XV-17231-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, 5TH WHEEL (30T)
4XV-17251-00-00
Superseded by 5JJ-17251-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 1ST WHEEL
4XV-17211-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
93102-45465-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE (16T)
4XV-17460-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-30233-00
Superseded by 90215-26241-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
90179-22063-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-224L4-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93306-37209-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
93440-72049-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
