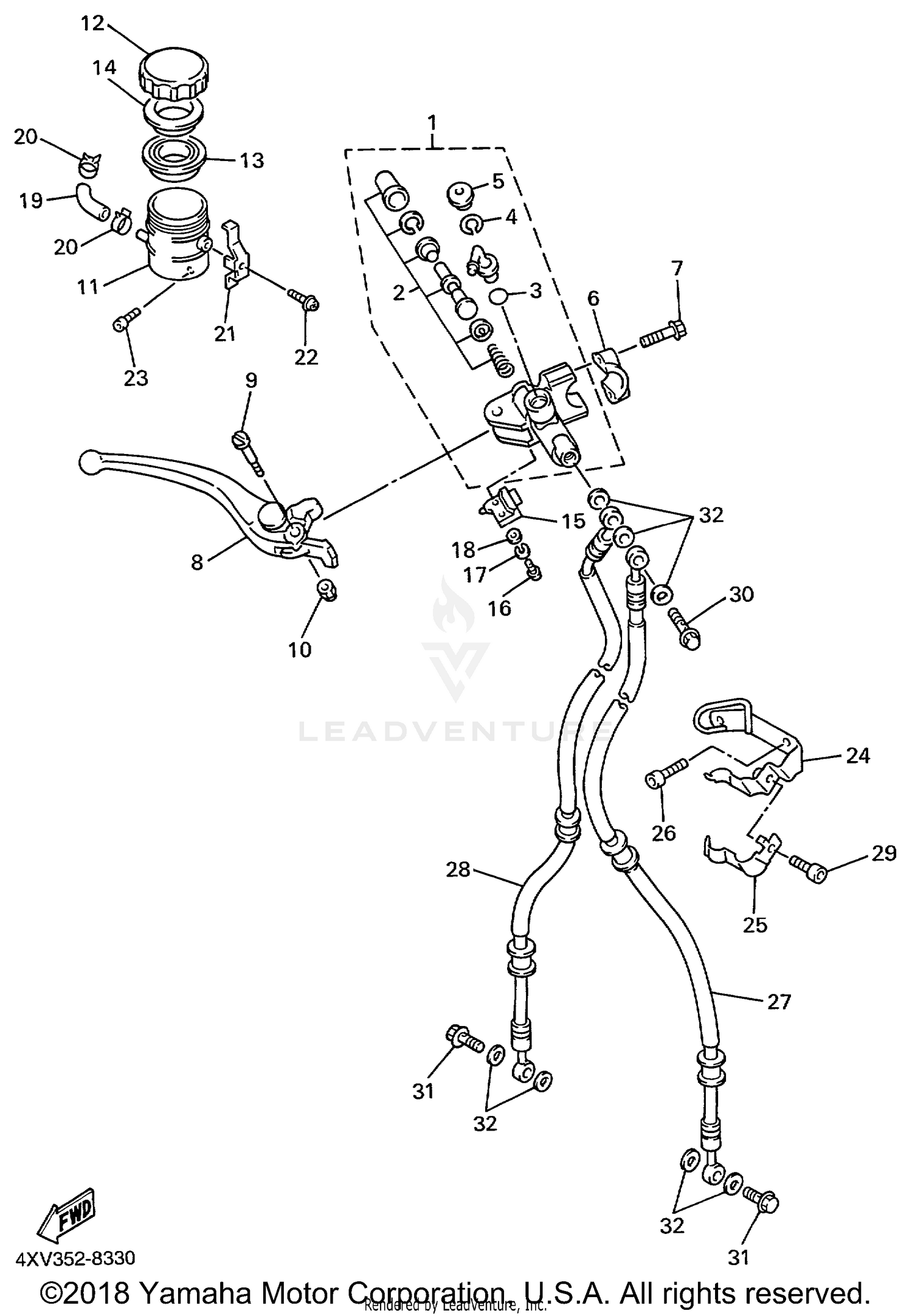

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
4XV-W2587-00-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4SV-W0041-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
3FV-2589A-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER 2
4XV-83922-00-00
Superseded by 4XV-83922-01-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, LEVER
3FV-2589F-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95606-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVOIR
3FV-25894-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RESERVOIR
3GM-25852-50-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM, RESERVOIR
3FV-25854-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
2J2-25855-50-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE
3TJ-2582F-01-00
Superseded by 3GM-2585F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, PIPE 1
3PA-24356-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER
3FV-2589G-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
3GM-2589H-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE
4XV-25887-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#25
HOLDER, BREAK HOSE
4XV-2587A-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
HOSE, BRAKE 1
4XV-25872-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#28
HOSE, BRAKE 2
4XV-25873-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. SOCKET HEAD
91317-06010-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-10160-00
Superseded by 90401-10038-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
